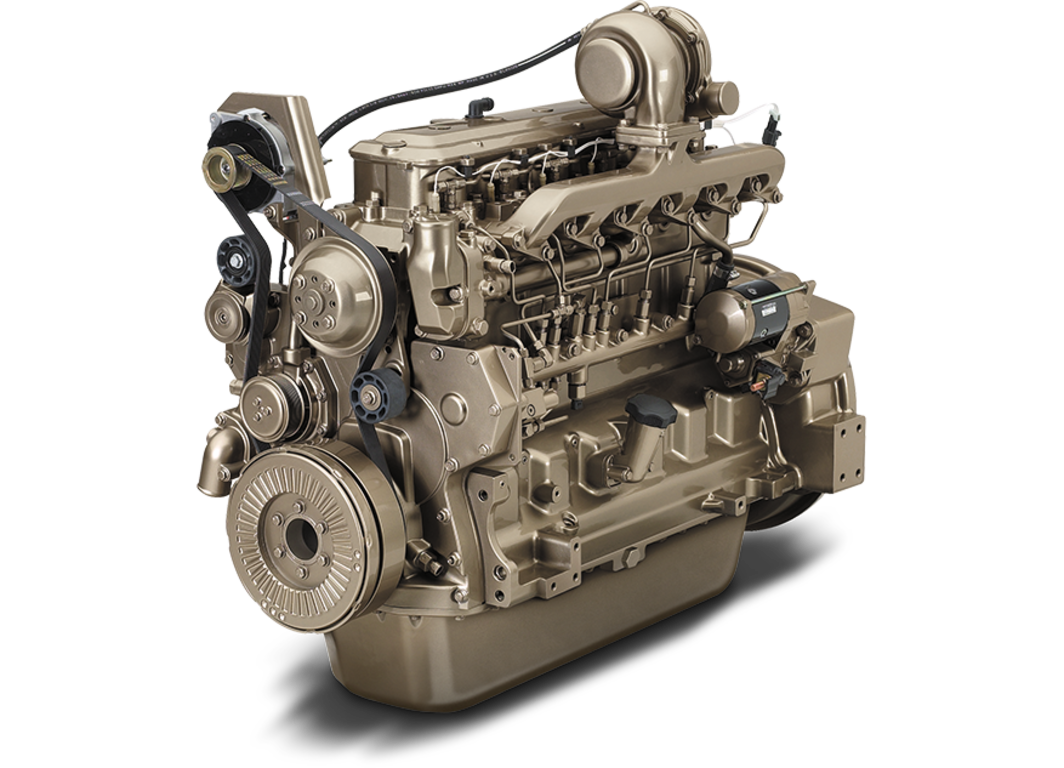

6068HF4756.8L Generator Drive Engine
- PowerTech™ E
- Standby: 207-210 kW (277-281 hp) @ 1500-1800 rpm
- Prime: 188-191 kW (252-256 hp) @ 1500-1800 rpm
- Dual frequency available
Specifications
Add Model
Specifications |
||||
|---|---|---|---|---|
| View detailed information in specifications sheet. | John Deere 6068HF475 6.8L Generator Drive Engine |
Emissions Certifications
| Non-Emissions Certified |
|---|
General engine data
| Model | 6068HF475 | |||
|---|---|---|---|---|
| Number of cylinders | 6 | |||
| Displacement-- L (cu in) | 6.8 (415) | |||
| Bore and Stroke-- mm (in) | 106 x 127 (4.17 x 5.00) | |||
| Compression Ratio | 17.0:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged and air-to-air aftercooled | |||
| Length - mm (in) | 1161 (45.7) | |||
| Width-- mm (in) | 627 (24.7) | |||
| Height-- mm (in) | 1044 (41.1) | |||
| Weight, dry - kg (lb) | 587 (1294) |
Performance data range
| Hz (rpm) | 60 ( 1800 ) 50 ( 1500 ) |
|||
|---|---|---|---|---|
| Generator Efficiency % | 89-93 88-92 |
|||
| Power Factor | 0.8 0.8 |
|||
| Engine power - Prime kW | 191 188 |
|||
| Engine power - Prime hp | 256 252 |
|||
| Engine power - Standby kW | 210 207 |
|||
| Engine power - Standby hp | 282 278 |
|||
| Rated Fan Power - kW | 10.5 10.4 |
|||
| Rated Fan Power - hp | 14.1 13.9 |
|||
| Calculated generator set output - Prime kWe | 161-168 156-163 |
|||
| Calculated generator set output - Prime kVA | 201-210 195-204 |
|||
| Calculated generator set output - Standby kWe | 178-186 173-181 |
|||
| Calculated generator set output - Standby kVA | 223-233 216-226 |
