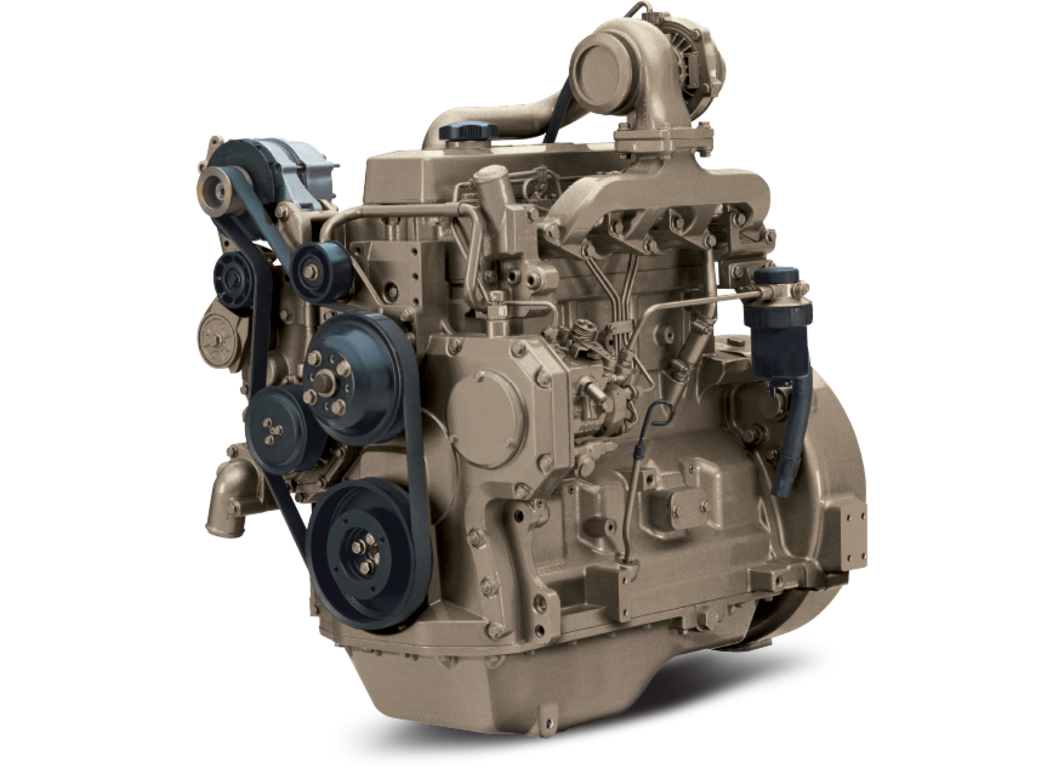

4045HF1504.5L Generator Drive Engine
- PowerTech™ M
- Standby: 123 kW (165 hp) @ 1800 rpm
- Prime: 111 kW (149 hp) @ 1800 rpm
Specifications
Add Model
Specifications |
||||
|---|---|---|---|---|
| View detailed information in specifications sheet. | John Deere 4045HF150 4.5L Generator Drive Engine |
Emissions Certifications
| Non-Emissions Certified |
|---|
General engine data
| Model | 4045HF150 | |||
|---|---|---|---|---|
| Number of cylinders | 4 | |||
| Displacement-- L (cu in) | 4.5 (275) | |||
| Bore and Stroke-- mm (in) | 106 x 127 (4.17 x 5.00) | |||
| Compression Ratio | 17.0:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged and air-to-air aftercooled | |||
| Length - mm (in) | 861 (33.9) | |||
| Width-- mm (in) | 598 (23.5) | |||
| Height-- mm (in) | 980 (38.6) | |||
| Weight, dry - kg (lb) | 396 (873) |
Performance data range
| Hz (rpm) | 50 ( 1500 ) | |||
|---|---|---|---|---|
| Generator Efficiency % | 88-92 | |||
| Power Factor | 0.8 | |||
| Engine power - Prime kW | 72 | |||
| Engine power - Prime hp | 97 | |||
| Engine power - Standby kW | 80 | |||
| Engine power - Standby hp | 107 | |||
| Rated Fan Power - kW | 3 | |||
| Rated Fan Power - hp | 4 | |||
| Calculated generator set output - Prime kWe | 61-64 | |||
| Calculated generator set output - Prime kVA | 76-80 | |||
| Calculated generator set output - Standby kWe | 68-71 | |||
| Calculated generator set output - Standby kVA | 85-89 |
