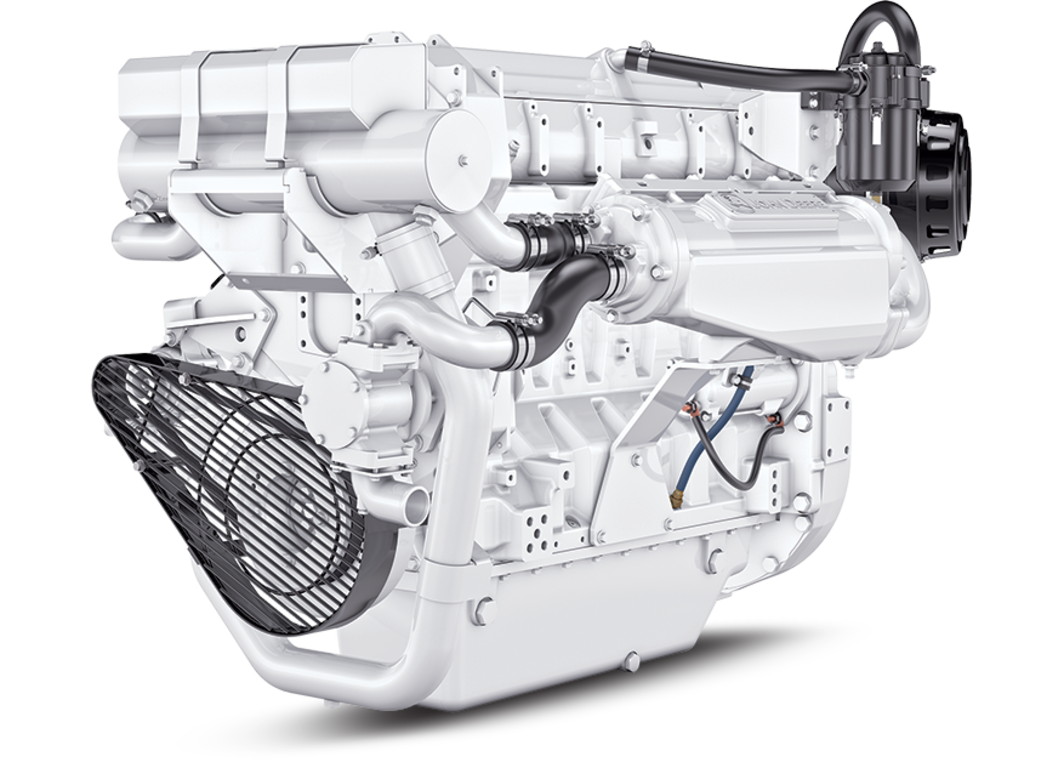

6135SFM85Marine Generator Drive Engine

13.5L PowerTech™
334-416 kW (448-558 hp)

Download Spec Sheet Contact a Distributor

Marine Selection Guide

Marine Accessories

Print

6135SFM85

Download Spec Sheet

Features

Features

Expand All Collapse All

Optional low rpm operation

A lower speed option provides the user the ability to start the engine without going to the gen-set rated speed and allows the user to clutch in an accessory that may be driven by the engine.

4-valve cylinder head

Excellent airflow through 4-valve cylinder head delivers greater low-speed torque and better transient response time.

Electronic unit injectors (EUI)

The EUI fuel system provides higher injection pressures. It also controls fuel injection timing and provides precise control for start, duration, and end of injection.

Water-cooled exhaust manifold

Integrated components eliminate external hoses and fittings. Wet exhaust manifold creates a cooler and quieter environment for passengers and crew.

Turbocharged with air-to-seawater aftercooling

Cooler turbocharger operation enables higher ratings and efficiencies for applications that require high power or speed.

Replaceable cylinder liners

Replaceable wet-type cylinder liners are precision-machined and hardened for long life. Allows engine to be rebuilt to original specifications.

Electronic engine control unit (ECU)

Advanced fault code diagnostics and customizable engine protections ensure reliability and uptime. Provides highly customizable features and trim to integrate your vessel.

Heat exchanger

High-capacity heat exchanger designed for reliable operation in adverse conditions.

Multiple service options

Either-side oil fill/dipstick combinations and remote oil and fuel filter options are available for easier service access.

Show More Show Less

Specifications

Specifications

Select Different Model

Specifications

John Deere

6135SFM85

Marine Generator Drive Engine

Export to Excel

1 2

Emissions Certifications

EPA Commercial Marine Tier 3
IMO MARPOL Annex VI Tier II Compliant

Classification Societies

ABS,BV,DNV-GL,LR
*SOLAS and other accessories available. Contact your distributor for details.

General Data (based on standard option configuration)

Model	6135SFM85
Number of cylinders	6
Displacement-- L (cu in)	13.5 (824)
Bore and Stroke-- mm (in)	132 x 165 (5.20 x 6.50)
Engine Type	In-line, 4-cycle
Aspiration	Air-to-sea water
Length - mm (in)	1818 (71.6)
Width Maximum - mm (in)	1063 (41.9)
Length to rear face of flywheel housing - mm (in)	1444 (56.9)
Flywheel housing SAE	1
Height - mm (in)	1176 (46.3)
Height, crankshaft centerline to top - mm (in)	812 (32.0)
Height, crankshaft centerline to bottom - mm (in)	364 (14.3)
Weight, dry - kg (lb)	1426 (3144)

Calculated Generator-set Rating - 1800 RPM

Rated Speed Hz (rpm)	60 ( 1800 )
Generator efficiency %	88-92
Engine Power Prime kW (hp)	416 (557.9)
Power factor	0.8
Calculated generator set rating prime - kWe	366-383
Calculated generator set rating prime - kVA	457-479

Calculated Generator-set Rating - 1500 RPM

Rated Speed Hz (rpm)	50 ( 1500 )
Generator efficiency %	88-92
Engine Power Prime kW (hp)	334 (447.9)
Power factor	0.8
Calculated generator set rating prime - kWe	294-307
Calculated generator set rating prime - kVA	367-384
