Front End Loaders For Tractors

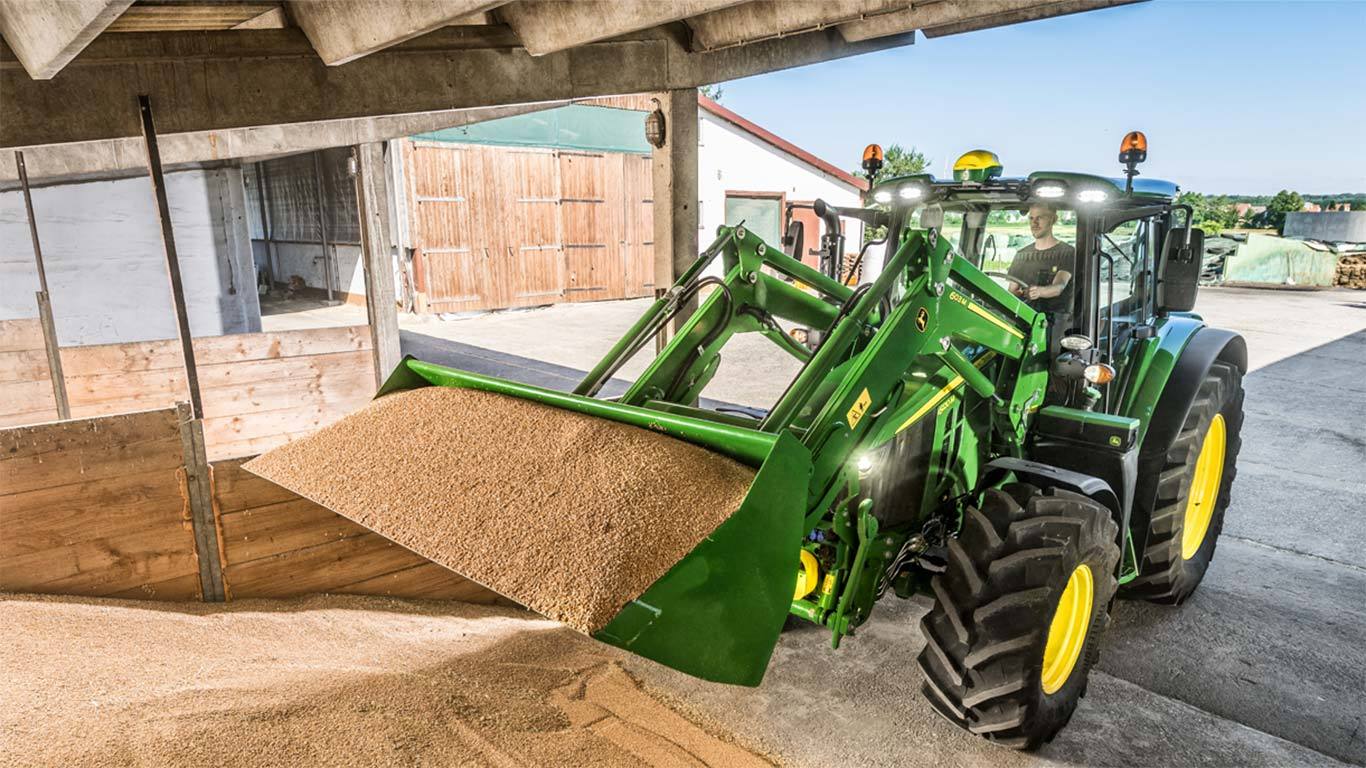

man in tractor using front end loader to fill another truck

Let Us Do the Heavy Lifting

John Deere offers a full-line of front end loaders for sub-compact, compact, utility and row crop tractors.

ModelLift Capacity ^Lift Height ^Self LevellingCompatible Tractor Models ^^Parkable

342 kg (754 lb.) [1 Family Tractors]
382 kg (840 lb.) [2R Series Tractors]

1,828 mm (72 in.)

Non Self-Levelling (self-levelling compliance kit included for Australian customers)

1023E, 1025R, 2025R

Yes

509 kg (1,120 lb.)

2,160 mm (85 in.)

Non Self-Levelling (self-levelling compliance kit included for Australian customers)

2036R

Yes

539 kg (1,186 lb.)

2,140 mm (84 in.)

Non Self-Levelling (self-levelling compliance kit included for Australian customers)

3038E

Yes

735 kg (1,598 lb.)

2,593 mm (201 in.)

Non Self-Levelling (self-levelling compliance kit included for Australian customers)

3033R, 3038R, 3045R

Yes

1,006 kg (2,213 lb.)

2,796 mm (110 in.)

Mechanical Self-Levelling

4049M, 4066M, 4049R, 4066R

Yes

ModelLift Capacity ^Lift Height ^Self LevellingCompatible Tractor Models ^^Parkable

1,380 kg* (measured at 800 mm from pivot point at max height, including standard bucket 1,850 mm - Weight 236 kg)

3,370 mm (measured at pivot point)

Mechanical Self-Levelling, Non Self-Levelling (Not for Australia)

5E Series, 5G Series, 5EN Series

Yes

1,866 kg**** (Measured at 800 mm from pivot point at maximum height, including a reference bucket)

3,855 mm (Measured at pivot points)

Non Self-Levelling, Mechanical Self-Levelling 2 Function, Mechanical Self-Levelling 3 Function

6000, 6010, 6020, 6030, 6M Series, 6R Series

Yes

2,411 kg***** (Measured at 800 mm from pivot point at maximum height, including a reference bucket)

4,707 mm (Measured at pivot points)

Mechanical Self-Levelling

7020, 7030, 7R Series, 8000, 8010, 8020, 8030, 8R Series

Yes

1,501 kg (Measured at 800 mm ahead of pivot point at max. height, including standard bucket 1,850 mm - weight 228 kg [502 lb.])

3,501 mm (Measured at pivot points)

Mechanical Self-Levelling

5075M, 5085M, 5090M, 5095M, 5100M, 5105M, 5115M

Yes

2,272 kg*  (Measured at 800 mm from pivot point at maximum height, including a reference bucket)

4,100 mm (Measured at pivot points)

Mechanical Self-Levelling, Electronic Self-Levelling

6RC/6MC iT4, 6RC/6MC FT4, 6R small frame iT4, 6R Small Frame FT4, 6M Small Frame iT4, 6M FT4 Small Frame, 6030, 6020 MFWD, 6010, 6000

Yes

2,279 kg**  (Measured at 800 mm from pivot point at maximum height, including a reference bucket)

4,300 mm (Measured at pivot points)

Mechanical Self-Levelling, Electronic Self-Levelling

6R Small Frame MFWD, 6R Mid Frame MFWD, 6M Small Frame, 6M Mid Frame MFWD, 6030 Mid Frame, 7020 & 6020, 6000

Yes

2,352 kg*** (Measured at 800 mm from pivot point at maximum height, including a reference bucket)

4,500 mm (Measured at pivot points)

Mechanical Self-Levelling, Electronic Self-Levelling

6000, 6010, 6020, 6030, 6930, 7030, 6M Series, 6R Series

Yes

2,538 kg***  (Measured at 800 mm from pivot point at maximum height, including a reference bucket)

4,500 mm (Measured at pivot points)

Mechanical Self-Levelling, Electronic Self-Levelling

6930, 7030, 6M Series, 6R Series

Yes

^ Values will vary according to the tractor model and loader settings/configuration. ^^ For more details on compatible tractor models, refer to your local John Deere dealer

*Reference bucket: 1850-mm standard bucket (246 kg)   **Reference bucket: 2200-mm heavy-duty bucket (310 kg)   ***Reference bucket: 2450-mm heavy-duty bucket (355kg)    ****Reference bucket 1800mm HD Bucket (228kg)   *****Reference bucket 2450mm HD Bucket (366kg)
