ZTrak™ Z997R Diesel Zero-Turn Mower | Commercial Mowers

Powerful diesel engine for increased performance

3-cylinder diesel engine

Convenient access to engine

The Z997R is powered by a 3-cylinder, liquid-cooled diesel engine with a gross 27.5 kW (37.4 hp) that meets U.S. Environmental Protection Agency (EPA) Final Tier 4 emission standards. The engine achieves Final Tier 4 compliance by using a diesel oxidation catalyst with diesel particulate filter (DOC/DPF) system.

The three-cylinder diesel engine features low noise levels, superior fuel economy, and a high torque reserve that provides plenty of power and performance.

Key features of the engine include:

Economical, cast-in block cylinder design gives good cooling and long life.
Liquid-cooled design provides more consistent operating temperatures than air-cooled.
Direct fuel injection is provided.
- Injects fuel directly on top of pistons for more efficient combustion
- Develops more horsepower per gallon of fuel
- Improves starting
Aluminum alloy pistons with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat-transfer characteristics.
- Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by fuel and noise from the piston slap
- Higher top rings on the piston and a thinner head gasket greatly reduce the volume of unburned waste and increase combustion efficiency
Timing gears and injector drive gears utilize helical profile gears to help lower engine noise.
- Gear teeth have a newly designed ''roll-off'' profile, giving almost no clash, no noise, and no backlash
Fuel filter with replaceable element is provided.
Full-pressure intake manifold provides quick starts in temperatures down to -18°C (0°F).
Auto-bleed fuel system gives extra convenience.
- No need to prime the system if the unit runs out of fuel; the system will self-prime the injection pump, lines and injectors, providing fast fuel recovery
Key start and shutoff eliminate fuel shut-off knob; electric solenoid shuts fuel supply off immediately when key is turned off.
See-through coolant recovery tank permits operator to check coolant level without removing radiator cap.
Sealed radiator compartment keeps trash and debris on outside of hood.
Dual-element, dry-type air cleaner with safety element and air service indicator is provided.
- Dual-element design for added engine protection
- Easy to service
- Completely sealed for effective cleaning and 90 to 95 percent of dirt ejected before it reaches the paper element
- Secondary safety element for additional filtering
- Air-restriction indicator to let operator know when the filter needs servicing
Full-pressure lubrication with full-flow filter lengthens engine life.
- Engine wear reduced by ensuring proper lubrication, even when operating on hillsides or uneven terrain
- Oil filter helps keep oil clean for increased engine life
Automotive-type alternator (75 amp) provides plenty of charge to the battery.
Rear-mounted, covered radiator and fan keeps noise away from the operator and is easy to service.
Isolated engine mounting reduces engine vibration at operator's station for more comfortable operation.

Air cleaner filters out dust to extend engine life

Engine air cleaner

The ZTrak™ Z997R Diesel Mower is equipped with a dual-element, canister-style air filter that is easily accessible from the rear of the machine without tools.

Filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
Filters are easy to change when required.
Pre-cleaner provides extra protection against contamination in dusty and dirty applications.

45.4-L (12-U.S. gal.) capacity fuel tank allows the operator to mow for a full day without refueling

Fuel tank and fuel gauge

Diesel fuel cap

The Z997R Diesel ZTrak™ Mower is equipped with a single fuel tank, providing the following:

45.4-L (12-U.S. gal.) capacity allows the operator to mow for a full day without refueling.
Large filler neck makes for easier refueling.
Standard fuel gauge is provided.
Top fuel draw provides added safety by reducing the chance fuel will leak out.

NOTE: The fill level is 25 mm (1 in.) below the bottom of the filler neck.

Two 7-Iron™ PRO Side-Discharge Mower Deck options for the Z997R give superior performance in every application

Z997R with 72-in. (183-cm) 7-Iron PRO Mower Deck

There are two side-discharge mower-deck options available for the Z997R Diesel ZTrak Mower:

The 60-in. (152-cm) 7-Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming.
The 72-in. (183-cm) 7-Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming on larger properties.

Extra reliability and long life with cast-iron blade spindle housings

Cast-iron mower spindle

On every commercial mower deck there are three 25-mm (1-in.) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.

Superior impact strength provided by ductile cast-iron material.
Gusseted design puts reinforcement where it is needed.
Strength of cast iron protects against damage from blade impacts.
Easy access grease fittings are mounted at the top of the spindle shafts for convenience.
Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
Chance of deck shell damage is minimized with the 20.3-cm (8-in.) diameter housing and six mounting bolts that distribute loads and impacts.
Ability to be reliably rebuilt is provided by use of cast iron.

Shaft-drive mower deck is durable and reliable

PTO shaft drive (shown on 997 model)

Mower decks are shaft driven. Benefits of using this type of system include:

Live independent power take-off (PTO) powers the mower deck.
PTO can be engaged or disengaged on the go for greater productivity.
Hydraulic PTO clutch has delay relief valve for soft engagement.
Wet clutch is designed for long life.
PTO is easily accessible.
339-Nm (250-lb-ft), heavy-duty hydraulic clutch provides long life.
Splined PTO shaft transfers power to the cast-iron gearbox.

Mower decks are safety certified

Z950M ZTrak Mower

Mowers decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.

	60-in. (152-cm) Side-Discharge	72-in. (183-cm) Side-Discharge
Mower type	7-Iron PRO - forged deck	7-Iron PRO - forged deck
Mower compatibility:
Discharge	Side	Side
Mulching capability	Optional field-installed kit	Optional field-installed kit
Cut-height range	3.8-12.7 cm (1.5-5 in.) 1.3 cm (0.25 in.) increments	3.8-12.7 cm (1.5-5 in.) 1.3 cm (0.25 in.) increments
Cutting width	152 cm (60 in.)	183 cm (72 in.)
Height-of-cut adjustment	Turning knob with foot assist	Turning knob with foot assist
High lift blades:
Blade length	53 cm (21 in.)	64 cm (25 in.)
Blade width	7.6 cm (3 in.)	7.6 cm (3 in.)
Blade thickness	6.35 mm (0.25 in.)	6.35 mm (0.25 in.)
Blade tip speed	Approximately 5,486 m/min (18,000 fpm)	Approximately 5,486 m/min (18,000 fpm)
Number of blades	Three	Three
Blade spindles:
Bearings	Grade=ABEC-1	Grade=ABEC-1
Spindles	Cold-forged and heat-treated	Cold-forged and heat-treated
Spindle housings	Ductile cast-iron	Ductile cast-iron
Wheels:
Front anti-scalp rollers	Standard	Standard
Rear anti-scalp rollers	Standard	Standard
Deck construction	One-piece forged steel	One-piece forged steel
Deck thickness	7-gauge steel 4.5 mm (0.179 in.)	7-gauge steel 4.5 mm (0.179 in.)

60-in. (152-cm) 7-Iron PRO mower deck

60 in. (152-cm) 7-Iron PRO mower deck shown

Features include:

Higher blade tip speed - approximately 5486 m/min (18,000 fpm) gives more blade strikes per distance of forward travel.
Front baffle is designed to better manage airflow and control clippings.
Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
Spindle-pocket reinforcement for even greater structural durability.
A raised discharge chute provides even clipping distribution.
7-gauge, 4.5-mm (0.179-in.) steel construction gives commercial durability.
3-spindle design provides a smooth, even cut.
The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
Plastic discharge deflector reduces damage to foliage and resists bending.
Formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
Deep deck gives increased vacuum action that reduces dropped clippings.
Shaft drive from engine to mower gives excellent reliability.
Belt drive efficiently transfers power from gearbox to spindles.
Grease fittings are greased from the top for easy access.
Quick-change cutting-height adjustment is easy to use.
Tricycler mulching kits are available.
Blade overlap of 40 mm (1.57 in.), nearly 20 mm (0.79 in.) greater than previous decks, reduces the number of missed grass blades.

72-in. (183-cm) 7-Iron PRO mower deck

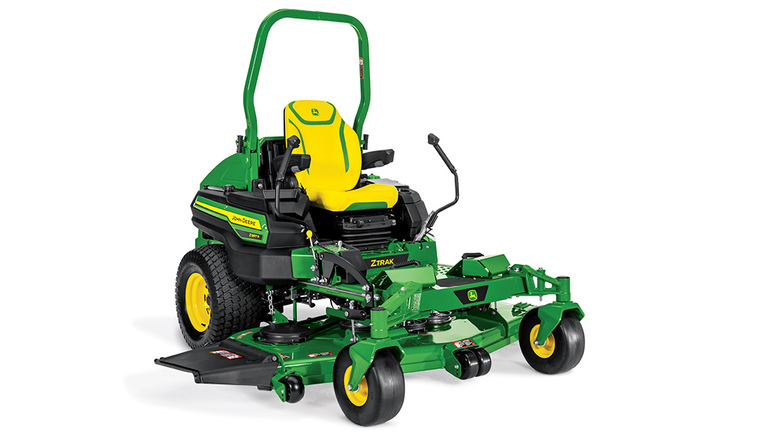

Z997R with 72-in. (183-cm) 7-Iron PRO mower

Features include:

Higher blade tip speed - approximately 5486 m/min (18,000 fpm) gives more blade strikes per distance of forward travel.
Front baffle is designed to manage airflow and control clippings.
Spindle pocket reinforcement gives greater structural durability.
Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
A raised discharge chute provides even clipping distribution.
7-gauge, 4.5-mm (0.179-in.) steel construction gives commercial durability.
3-spindle design gives a smooth, even cut.
The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
Plastic discharge deflector reduces damage to foliage and resists bending.
Formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
Deep deck gives increased vacuum action that reduces dropped clippings.
Shaft drive from engine to mower gives excellent reliability.
Belt drive efficiently transfers power from gearbox to spindles.
Grease fittings are greased from the top for easy access.
Quick-change cutting-height adjustment is easy to use.
Tricycler mulching kits are available.
Blade overlap of 40 mm (1.57 in.), nearly 20 mm (0.79 in.) greater than previous decks, reduces the number of missed grass blades.

Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck

60-in. (152-cm) Rear-Discharge Mower Deck

72-in. (183-cm) Rear-Discharge Mower Deck

For professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere FastBack PRO rear-discharge mower decks deliver a commercial zero-turn mowing solution for both gas and diesel machines. Advantages of a rear-discharge mower include:

Less chance of damage from objects being thrown from the mower deck
Time savings with the ability to mow closely around fixed objects with either side of the deck
A cleaner mowing experience by lessening the amount of debris that can blow onto the operator

A rear-discharge mower deck is ideally suited for:

Schools
Parks
Playgrounds
Traffic areas (city boulevards, roadsides, etc.)
Areas with long, grassy spots that need to be cut, where you are not as concerned about wide dispersal of grass (park areas, roadsides, etc.)*

*NOTE: Operators maintaining turf outside of target areas are encouraged to evaluate rear-discharge dispersion through a cut quality demonstration to ensure satisfaction.

Compatibility

Mower deck	Z930M	Z950M	Z960M	Z950R	Z970R	Z994R	Z997R
60-in. (152-cm) FastBack PRO rear-discharge	x		x	x		x	x
72-in. (183-cm) FastBack PRO rear-discharge		x	x		x	x	x

Commercial-quality deck design

A large volume of material can be thoroughly processed with the deep-deck design:

Unique baffling system is designed to reduce clumping and windrowing often associated with rear-discharge mowers.
- Efficiency is enhanced with baffles surrounding each blade to control material as it is moved to the rear.
- Material exits the deck quickly as the baffles are lower at the rear.
- Movement of material is controlled to minimize the likelihood that clippings are thrown onto unwanted areas.
Less debris gets on the operator as material is directed to the rear and toward the ground.
- Debris is kept low and directed into the turf by the flexible rear shield.

Extra convenience

Serrated-tread step

Extra convenience and security are provided by a serrated surface that is welded to the top left corner of the deck, providing additional traction when entering and exiting the operator station.

Level cut

Center deck rollers and left wheel

Right-rear deck wheel

The deck is suspended from and supported by the machine to provide a level cut. Mower deck wheels and rollers help smooth out the mowing job in uneven conditions and reduce the chance of scalping the lawn:

Two wide front rollers at the center of the mower support the deck when necessary to prevent scalping.
Wheels at all four corners protect the deck from scalping at the sides of the mower.
Continued effectiveness results from wheels and rollers that are double captured for extra strength, which reduces the chance of damage.
Height of rollers and wheels is adjustable to suit mowing conditions.
- Higher setting (shown in images) are used when mowing at lower cut heights and for rougher conditions at all cut heights where you want to reduce the chance of the wheels hitting the ground.
- Lower settings are used for higher cut heights and for helping to smooth out the mowing job.
Mower cut height is adjustable from 1 to 5.5 in. (2.54 to 14 cm) in 0.25-in. (0.64-cm) increments from the machine operator’s station.

Heavy-duty components for long life

Strong, reinforced deck

Right trim-side wear guard

These rear-discharge decks are designed to stand up to heavy-duty commercial use:

Superior strength and durability come from a 7-gauge, 0.179-in. (4.6-mm) steel deck.
Experience extra strength and long life with a fabricated deck design that is formed, welded, and reinforced for extra protection from damage.
The front of the deck is protected from damage by a 1.5-in. (3.8-cm) tall by 0.5-in. (1.3-cm) thick solid steel bar welded to the mower deck for additional strength.
Both sides of the deck have bumpers that are made from compression molded ultra-high molecular weight (UHMW) polyethylene plastic.
- The bumpers provide great abrasion resistance to protect the machine and the property.
- Additional strength is provided by a 0.5-in. (1.3-cm) by 0.5-in. (1.3-cm) thick solid steel bar.

Universal joint and cast-iron gearbox (Z997R)

Cast-iron blade-spindle housing

Durability is designed into the mower blade drive system:

Reliably powered by a universal joint shaft drive from the vehicle transmission to a heavy-duty right-angle, cast-iron gearbox (Z997R)
Dependable v-belt drive system

Extra reliability and long life are provided by cast-iron blade spindle housings:

Ductile cast-iron material provides superior impact strength.
Gusseted design puts reinforcement where it is needed.
Strength of cast iron protects against damage from blade impacts.
Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
Chance of deck-shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
Ability to be reliably rebuilt is provided by use of cast iron.

Ease of service

Quick-release belt cover

Cast-iron spindle housing assembly

Minimal service requirements increase uptime:

Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
- A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
- This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
Convenient spindle greasing with fittings at the top of spindle shafts are accessible through a hole in the top of the spindle/belt covers.
- The center spindle is accessed by no-tools removal of the vehicle floor pan.
There is only one belt to service.

Standard operator comfort and convenience package for ease of use

Operator platform

The Z997R Diesel ZTrak™ Mower is ergonomically designed to give the operator an enjoyable and comfortable ride while increasing productivity.

Two-lever hydrostatic drive control

Commercial cutter can select the ground speed and direction control simply by moving levers forward or in reverse.
Positive neutral lock position for levers provides added safety.
Wide-bend steering levers swing out easily for entry and exit from the operator platform.

Comfort and convenience handles

The comfort and convenience package includes large, ergonomically angled control levers with specially padded grips and built-in electronic controls to raise or lower the mower deck and disengage the mower blades.

Control buttons

The push button (A) on the left motion control lever raises the mower deck. The push button (B) on the right-hand control lever shuts off the power take-off (PTO).

Once the PTO has been shut off using the button, the PTO switch must be pushed down and pulled up again to engage the PTO.

Easy to engage park-brake lever

Park-brake lever

Positive park position allows the operator to park on hillsides and lock the park brake during
trailer transport.
Park brake automatically disengages the machine during panic stop, for added safety.

Deluxe comfort seat is fully adjustable and includes ComfortGlide™ fore/aft suspension

Suspension seat

Seat adjustment controls

The deluxe comfort professional-grade seat is included in base equipment. It provides the operator with an enjoyable ride by allowing the operator the ability to adjust the seat to their preference. It includes:

60.9-cm (24-in.) high-back seat
Suspension-reaction dial that adjusts vertical suspension for operator weight and a firm or soft ride
Adjustable armrests
Adjustable back angle
ComfortGlide suspension with 50.8-mm (2-in.) fore/aft seat travel to absorb bumps
Vibration reduction
7.6-cm (3-in.) fore-aft adjustment while operator is seated
Retractable seatbelt

ComfortGlide fore/aft suspension control lever

ComfortGlide fore/aft suspension gives superior ride comfort over uneven areas:

Seat can travel up to 50.8 mm (2 in.) fore and aft to absorb bumps for a significant enhancement to ride comfort.
Control lever provides the ability to easily lock out fore/aft suspension movement if desired.
One lever has three functions.

Slide seat forward and back 10.2 cm (3 in.) to allow the operator the ability to choose the leg room needed
Activate Comfort Glide fore/aft seat suspension
Lock out Comfort Glide fore/aft seat suspension

Easily accessed daily service points mean less maintenance time and more working time

Easy serviceability

Rear hood open

Service components are easy to see and access:

Open engine compartment allows full access to engine components and service points.
Engine heat is kept away from the operator.
Flip-up seat allows easy access to the hydraulic system.
Flip-out floor panel allows easy access to deck spindles.

Hood latch and hood pivots

Hood latch

Hood opened for access to service points

Hood has one central over-center type latch.

The hood pivots to make the hood easier to remove and install for ease of servicing the engine.

Coolant reserve tank and oil filter

Flip-up deck service panel

Heavy-duty frame provides strength and durability

Z997R with 72-in. (183-cm) 7-Iron PRO Mower Deck

The durability features of the frame are as follows:

Heavy-duty, thick-gauge steel channel mainframe for strength and durability
Cast I-beam caster arms to handle the beating and pounding professional mowers receive
Wide-open access for maintenance and cleaning

Durable cast-iron rear bumper provides protection

Cast-iron rear bumper

A cast-iron rear bumper is provided on the machine for rear protection. It also adds weight to give great hillside performance.

Quality drive system provides longer life and less maintenance

Illustration of Kanzaki dual-unitized hydraulic pump

The hydrostatic drive features a Kanzaki® DUP 17SB dual-unitized hydraulic pump. This dual pump, in a single housing, provides longer life and less maintenance than competitive units.

The pump features a shaft-driven fan for added cooling and longer component life. The swash-plate bearings are roller-type versus ball-type bearings for a longer overall pump life.

Illustration of transmission layout

The transmission module integrates the dual pumps and steering valves in one single housing. The pump is shaft-driven from the engine. An isolator ensures reduced vibration between the engine and the transmission module.

Two wheel motors are installed on the chassis to directly transfer power to both wheels. Commercial-grade, heavy-duty TG0310 310-cc (18.9-cu in.) wheel motors from Parker Ross, part of the Hydraulic Pump & Motor Division of Parker Hannifin®, are also important components of the overall drive system efficiency.

Rigid hydraulic lines are installed between the hydraulic module and wheel motors for long life.

Kanzaki is a trademark of Kanzaki Kokyukoki Manufacturing Company. Parker Hannifin is a trademark of Parker Intangibles, LLC.

Mower deck height-of-cut adjustment is easy to use

Control panel including height-of-cut adjustment dial

Height-of-cut adjustment dial

Single-touch deck lift system is best in class:

No tool required for adjustments
Dial-in knob used in conjunction with push button to change the height of cut
Easy-to-use design for increased productivity by allowing change of cutting height from the seat

Mower control buttons

The push button (A) on the left motion control lever raises the mower deck. The push button (B) on the right-hand control lever shuts off the power take-off (PTO).

Once the PTO has been shut off using the button, the PTO switch must be pushed down and pulled up again to engage the PTO.

Protective zone around the operator is provided by the rollover protective structure (ROPS)

Z997R with 72-in. (183-cm) 7-Iron PRO Mower Deck

The spacious operator station has been designed for comfort, visibility, and ease of use:

Getting on and off is easy with the flat operator platform.
Convenient-to-use controls located close to the operator are color coded and designed for easy identification and operation.

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

It reduces the operator’s risk of being crushed under the vehicle should it overturn.
When used with the seatbelt, the ROPS can reduce the severity of injury in the event of a rollover.
- Use of the seat belt is recommended when operating with ROPS in the upright position.

ROPS in upright position

ROPS in folded position

Foldable ROPS and a retractable seat belt are standard equipment:

Position adjustment pins provide a good grip and make changing the angle of the ROPS easier.
If operating in low clearance areas, the ROPS can be folded down and secured out of the way.
Under normal operation, the ROPS should be in the upright position.
See Operator’s Manual for more information on ROPS.
Door height of most garages will accommodate the machine with ROPS in the full-raised position.
- Easy-fold ROPS improves the ability to store the ZTrak in structures with a lower door opening.

The retractable seat belt is within easy reach of the operator for use when operating with the ROPS up.

ROPS are foldable to allow trimming, such as under trees or bushes:

To fold, remove two pins and rotate the top of the ROPS.
Adjustment can be made from the operator's seat.
ROPS must be in the upright and locked position when low clearance is not required.

The folding ROPS performance is certified at the date of manufacture according to ISO 21299.

ROPS stabilizer device

Stabilisers reduce the amount of movement and noise in the ROPS.

ROPS position	Height at top of ROPS
Full height	216 cm (85 in.)
Down	122 cm (48 in.)

Optional Light-emitting diode (LED) work lights

LED work lights

BUC11438 LED work lights are available as a field installed attachment. BUC11438 is compatible with model year 2015 and newer (serial number 030,001-) Z900 ZTrak Mowers. All Z997R and model year 2015-2018 (serial number 030,001-070,000) gasoline powered models require AUC18778 battery jumper.

Optional LED beacon light

LED beacon light

BUC11406 LED beacon light is available as a field installed attachment. The beacon light is short to avoid damage. BUC11406 is compatible with model year 2015 and newer (serial number 030,001-) Z900 ZTrak Mowers. All Z997R and model year 2015-2018 (serial number 030,001-070,000) gasoline powered models require AUC18778 battery jumper.

Manage your commercial mowing fleet using John Deere Operations Center™

TerrainCut™ Front and Wide-Area Mowers

ZTrak, QuikTrak, and commercial walk-behind Mowers

Overview

A JDLink™ M Modem connects a commercial mower to the John Deere Operations Center, which enables you to manage your fleet more efficiently, increase productivity, and reduce labor costs. With a modem and Operations Center, you are always connected to the work in progress and can make timely adjustments to keep your fleet mowing.

JDLink M Modem

A JDLink M Modem is standard equipment on model year 2024 and newer TerrainCut Front and Wide-Area Mowers.

A modem can be field installed on:

Model year 2024 and newer Z700 ZTrak™ Mowers
Model year 2024 and newer gasoline-powered Z900 ZTrak Mowers
Model year 2024 and newer Z994R ZTrak Mowers
Model year 2021 and newer Z997R ZTrak Mowers
Model year 2024 and newer Q800 QuikTrak™ Mowers
Model year 2025 and newer R Series commercial walk-behind mowers
Model year 2022-2023 TerrainCut Front Mowers
Model year 2023 TerrainCut Wide-Area Mowers

See compatibility section for serial number breaks and requirements.

John Deere Operations Center

John Deere Operations Center is available on PC, Apple iOS, and Android mobile apps

The John Deere Operations Center tracks your fleet and provides tools to analyze mower data. The connected features vary by mower model.

Models	Location and status	GPS speed	Geofencing and curfews	Engine hours	Maintenance planner	Machine Analyzer Tool	Fuel level	Fuel consumption	Diagnostic trouble codes	Service Advisor Remote
Z700 ZTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Z900 ZTrak Mowers with carbureted engines	X	X	X	Key	X	X	---	---	---	---
Z900 ZTrak Mowers with EFI engines	X	X	X	Sync	X	X	X	X	X	X
Z994R ZTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Z997R ZTrak Mowers	X	X	X	Sync	X	X	---	X	X	X
E Series QuikTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Q820M, Q850M, and Q850R QuikTrak Mowers	X	X	X	Sync	X	X	X	---	X	---
Q865R EFI QuikTrak Mowers	X	X	X	Sync	X	X	X	X	X	X
R Series commercial walk-behind mowers	X	X	X	Key	X	X	---	---	---	---
1550 TerrainCut Front Mowers	X	X	X	Key	X	X	---	---	---	---
1570, 1575, 1580, and 1585 TerrainCut Front Mowers	X	X	X	Sync	X	X	---	X	X	X
1600 TerrainCut Wide-Area Mowers	X	X	X	Sync	X	X	---	X	X	X

Location and status

Operations Center map displaying past locations of a mower

Mobile view of Operations Center map showing GPS speed

The JDLink M Modem regularly transmits the location and operational status of each mower in the fleet so you can monitor mowing progress in Operations Center.

Location history-Display of map with current and past locations of each mower.
GPS Speed-Maps each mower’s current speed, based on GPS location data, so you can target operator training. GPS speed is only viewable on Apple iOS and Android mobile apps.
Geofencing-Alerts when a mower enters or exits a prescribed area, for example if the mower has been stolen or an operator entered an area that should not be mowed.
Curfews-Alerts if the mower is operating outside prescribed times, for example residential areas with early-morning noise restrictions.

Engine hours

The modem regularly transmits the mower’s engine hours to inform maintenance planning and balance use.

Sync-The mower reports actual engine hours to the Operations Center.
Key-Engine hours are estimated by monitoring the key switch. Engine hours can be corrected in Operations Center.

Maintenance planner

Operations Center Maintenance Planner

Factory or custom maintenance plans can be established in Operations Center. Maintenance alerts are sent when engine hours reach maintenance intervals.

Machine Analyzer Tool

Operations Center Machine Analyzer Tool

On select products, the modem reports the time the mower spent transporting, idling, and working. The Operations Center’s Machine Analyzer tool reports usage data which allows you to analyze operator behavior, identify causes of low productivity, and initiate corrective actions.

Fuel level

On select products, the modem reports the fuel level. On these products, an analysis of fuel consumption is available in the Operations Center Machine Analyzer Tool. Measuring fuel consumption enables you to address causes of excessive fuel use.

Diagnostic trouble codes (DTCs)

On select products, the modem transmits the trouble codes generated by the mower’s control units to the Operations Center. Addressing DTCs can reduce downtime and repair costs. For example, a low-engine oil pressure DTC can indicate an engine is low on oil. Addressing the issue can prevent costly downtime and repairs.

Service Advisor Remote

On select products, John Deere dealers can perform remote diagnostics, software programming, and adjustments without the cost of a service call.

Compatibility

A JDLink M Modem is standard equipment on model year 2024 and newer (SN 110,001-) TerrainCut Front Mowers and model year 2024 and newer (SN 690,001-) TerrainCut Wide-Area Mowers.

A JDLink M Modem can be field installed on the commercial mowing products listed below. Field installation attachments simplify modem installation, and include brackets, mounting hardware, harness, and instructions. Field installation requires a JDLink M Modem to be ordered separately. The field installation attachments include a wiring harness therefore the modem should be ordered with the less harness option code.

Model	Compatible model years	Installation attachment
Z700 ZTrak Mowers	2024 and newer (SN 080,001-)	BUC11759
Gasoline-powered Z900 ZTrak Mowers	2024 and newer (SN 130,001-)	BUC11759
Z994R ZTrak Mowers	2024 and newer (SN 070,001-)	BUC11759
Z997R ZTrak Mowers	2021 and newer (SN 070,001-)	BUC11908
QuikTrak Mowers	2024 and newer (SN 010,001-)	BUC11744
R Series commercial walk-behind mowers	2025 and newer (SN 070,001-)	BUC11918
TerrainCut Front Mowers	2022-2023 (SN 080,001-110,000)	BUC11797
1600 TerrainCut Wide-Area Mowers	2023 (SN 680,001-690,000)	BUC11797

Michelin® X® Tweel® Turf airless radial tyre technology option for a smoother ride and more uptime

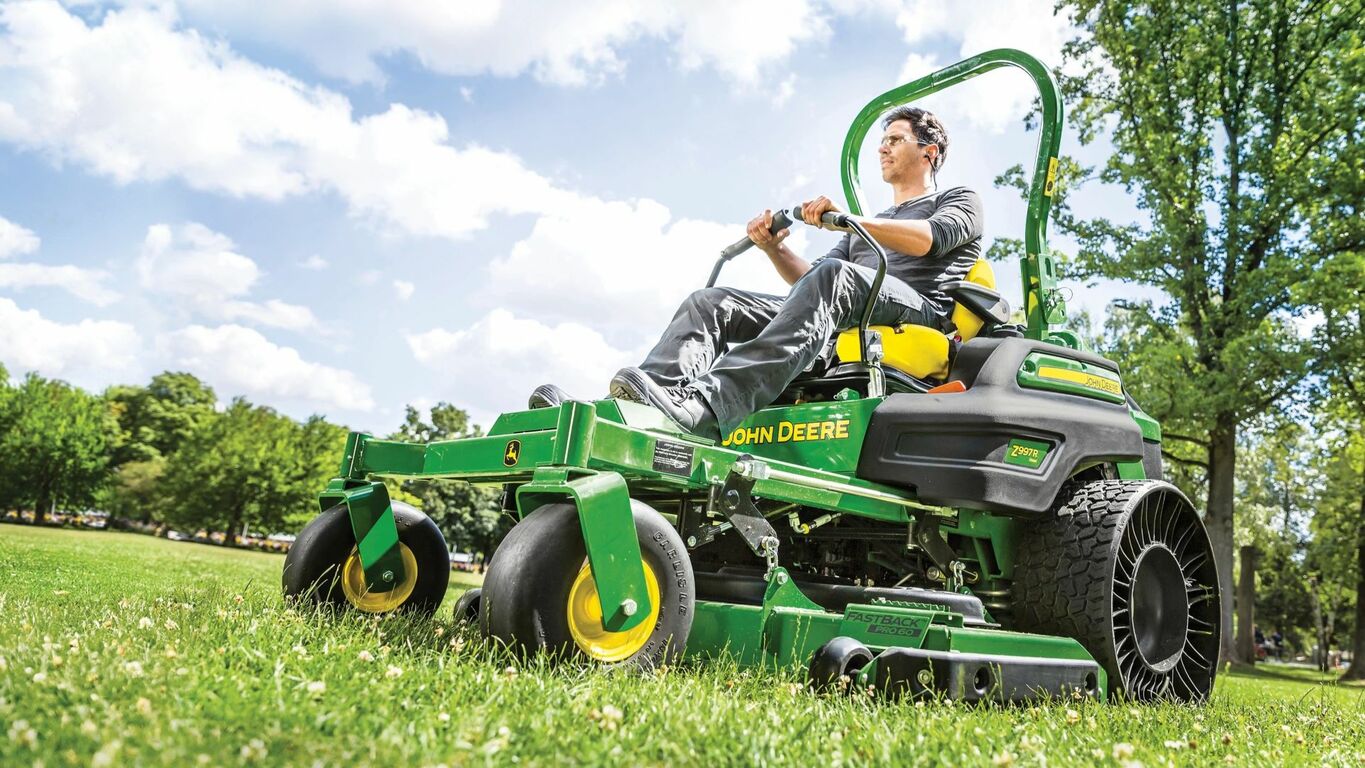

Michelin X Tweel Turf on Z997R

Flat-free rear tyre on ZTrak™ Mower

John Deere leads the commercial zero-turn mower industry with use of the Michelin X Tweel Turf technology.

Michelin is a world leader in tyre manufacturing and technology. This airless radial tyre solution is an industry first for John Deere, which provides a smoother ride for the operator and additional advantages to John Deere owners.

Advantages of the Michelin X Tweel Turf include:

Mowing performance is improved.

Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tyres, to give a smoother ride.
Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tyres, to give a smoother ride.
Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
More consistent cut quality is achieved because inconsistent tyre pressure is eliminated.

Uptime is improved.

The exclusive technology eliminates downtime and associated cost due to flat or damaged tyres. Punctures and sidewall damage no longer result in downtime.

Cost of operation is reduced.

Cost of repairs and maintenance is reduced. One single unit replaces the current tyre, wheel, and valve assembly. There is no need for complex tyre-mounting equipment.
No need to spend time checking and optimizing tyre pressure.
The need to purchase and stock plug kits and spare tyres is eliminated, particularly for professional landscape contractors and government agencies who normally stock them.
The tyre tread will last up to three times longer than current pneumatic tyres because automotive-grade rubber is used for the tread.

Michelin X Tweel Turf

Heavy-duty construction provides the ultimate in performance and reliable operation:

High-strength poly-resin spokes carry the load.
Four-hole, heavy-duty steel hub easily bolts onto any Z997R ZTrak Mower.
Deep, open-tread design provides excellent cleaning and traction.
Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.

Tyres deliver exceptional traction, maneuverability, and reliability

Run flat front caster wheel

Pneumatic rear drive wheel

The ZTrak Z997R Mower is equipped with 15x6-6 flat free front caster tyres that provide:

Excellent reliability and uptime
Low center of gravity to increase hillside mowing capability
Caster wheels and caster wheel towers with sealed bearings for long life and easy steering
Offset front caster wheels to help improve the inside corner-trim performance and reduce between-blade striping

A choice of rear wheel options is available for factory installation:

26x12-12 4 PR pneumatic drive tyres in base equipment for excellent traction, flotation, and curb climbing
26x12-12 Michelin X Tweel Turf airless radial tyre technology option for a smoother ride and more uptime

Drive tyres and caster wheels sized for proper weight distribution and traction

Turf drive tyres

The Z997R comes with 26x12-12, square-shoulder, 4 PR turf drive tyres as standard equipment.

Caster wheels

The 15x6-6 smooth-design flat-free front caster wheels provide excellent durability, flotation, and curb climbing.

A wide stance increases hillside mowing capability.

Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.

Z997R DieselZTrak™ Zero-Turn Mower

SHARE

Features

Air cleaner filters out dust to extend engine life

45.4-L (12-U.S. gal.) capacity fuel tank allows the operator to mow for a full day without refueling

Extra reliability and long life with cast-iron blade spindle housings

Shaft-drive mower deck is durable and reliable

Mower decks are safety certified

60-in. (152-cm) 7-Iron PRO mower deck

72-in. (183-cm) 7-Iron PRO mower deck

Compatibility

Commercial-quality deck design

Extra convenience

Level cut

Heavy-duty components for long life

Ease of service

Two-lever hydrostatic drive control

Easy to engage park-brake lever

Hood latch and hood pivots

Durable cast-iron rear bumper provides protection

Optional Light-emitting diode (LED) work lights

Optional LED beacon light

Overview

JDLink M Modem

John Deere Operations Center

Location and status

Engine hours

Maintenance planner

Machine Analyzer Tool

Fuel level

Diagnostic trouble codes (DTCs)

Service Advisor Remote

Compatibility

Tyres deliver exceptional traction, maneuverability, and reliability

Drive tyres and caster wheels sized for proper weight distribution and traction

Caster wheels

Offers and Discounts

Related Products
