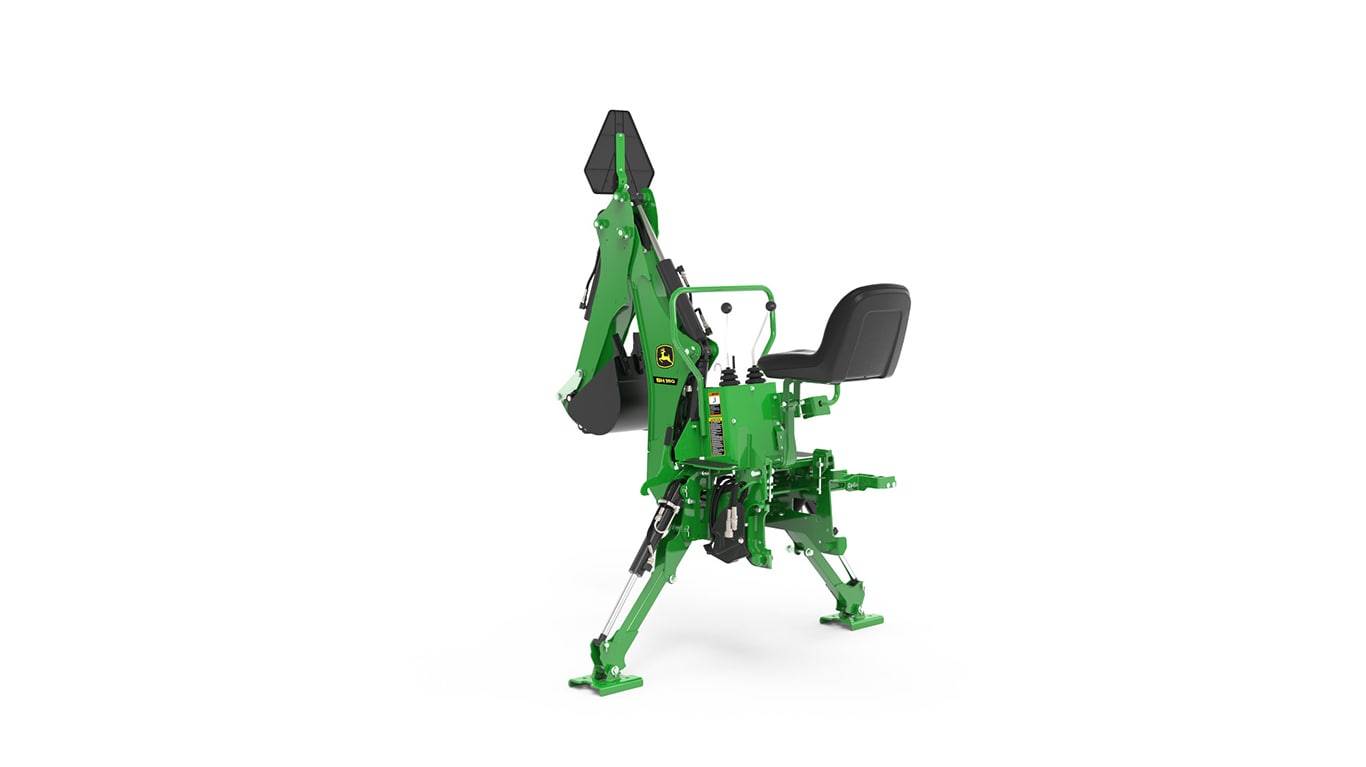

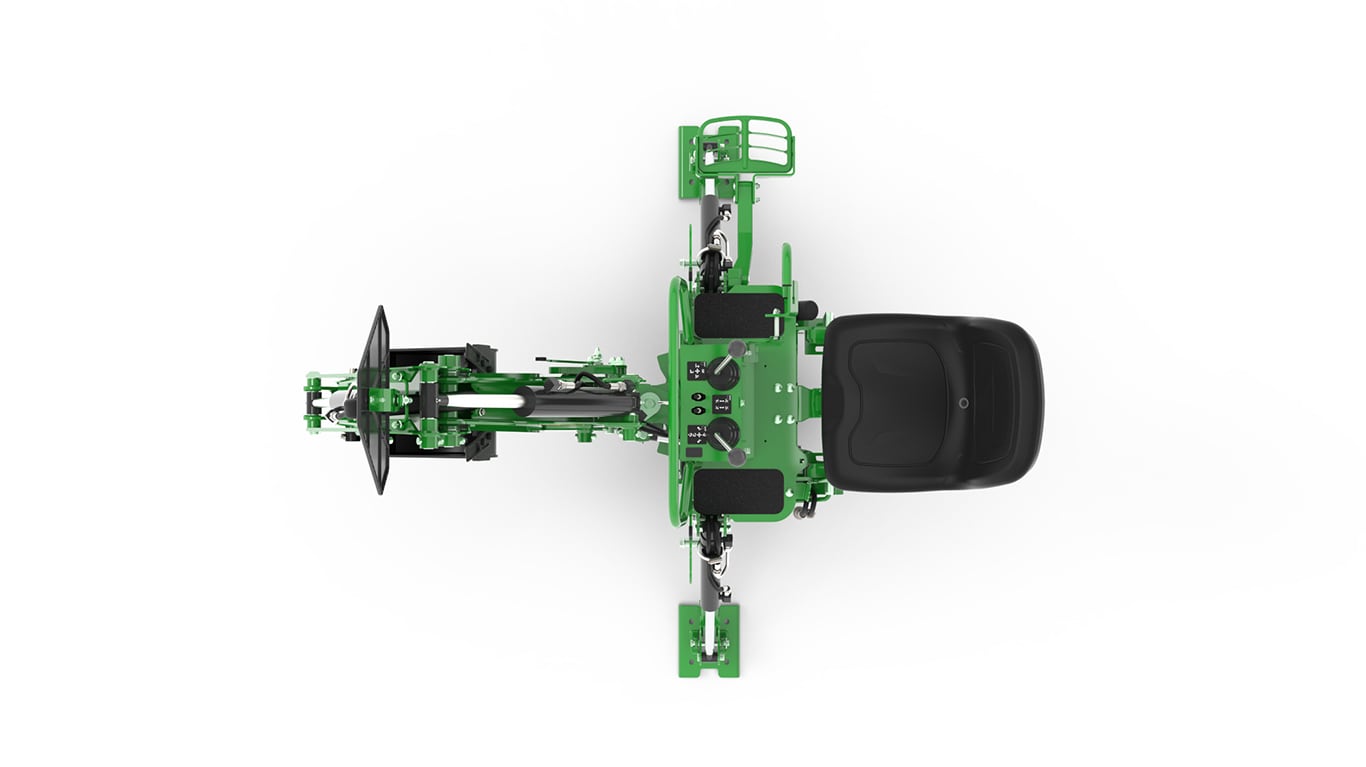

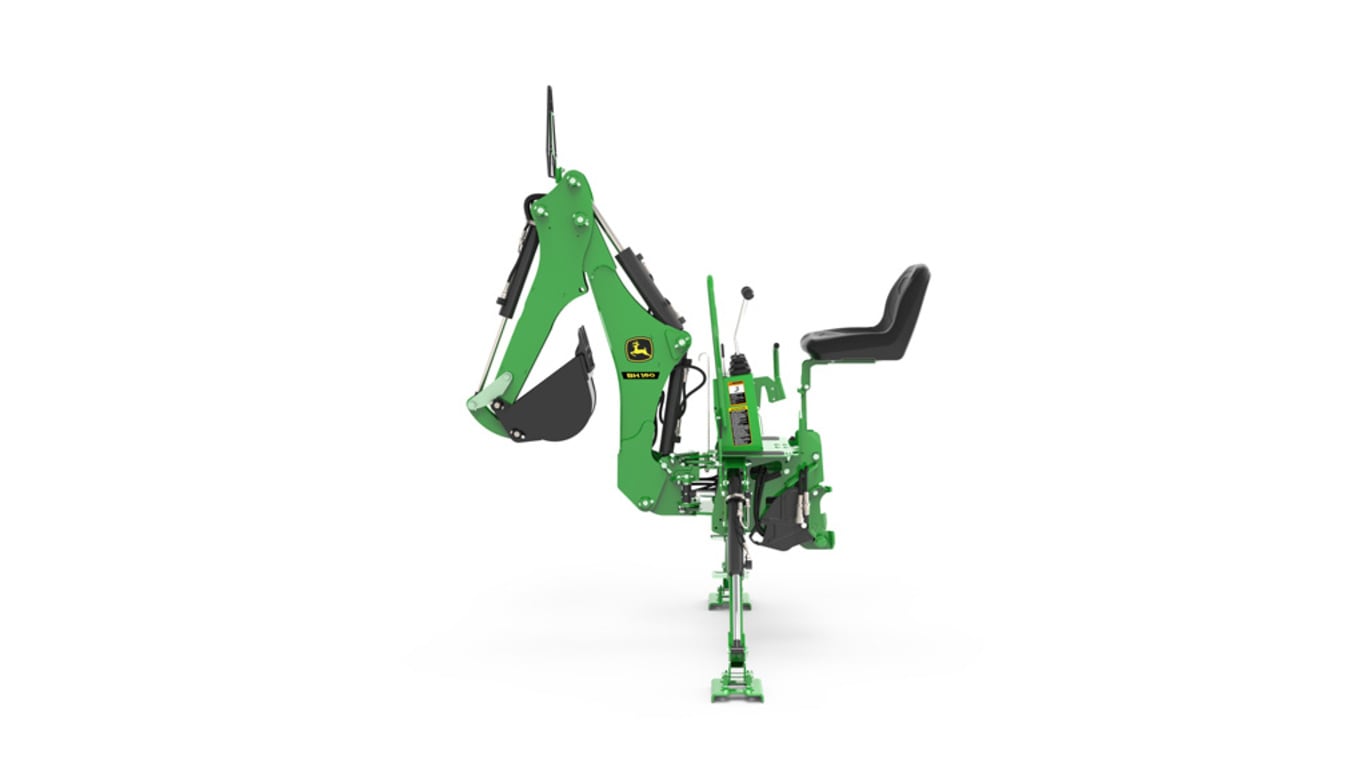

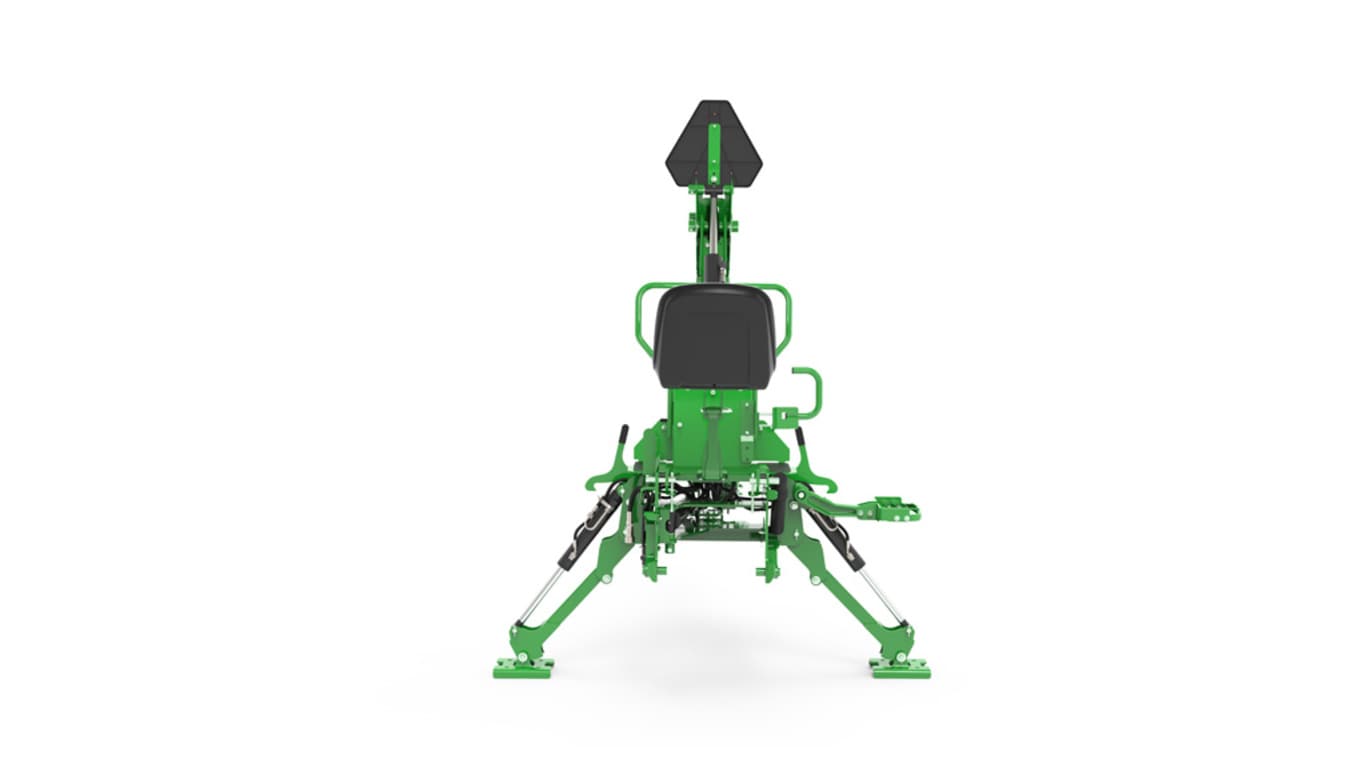

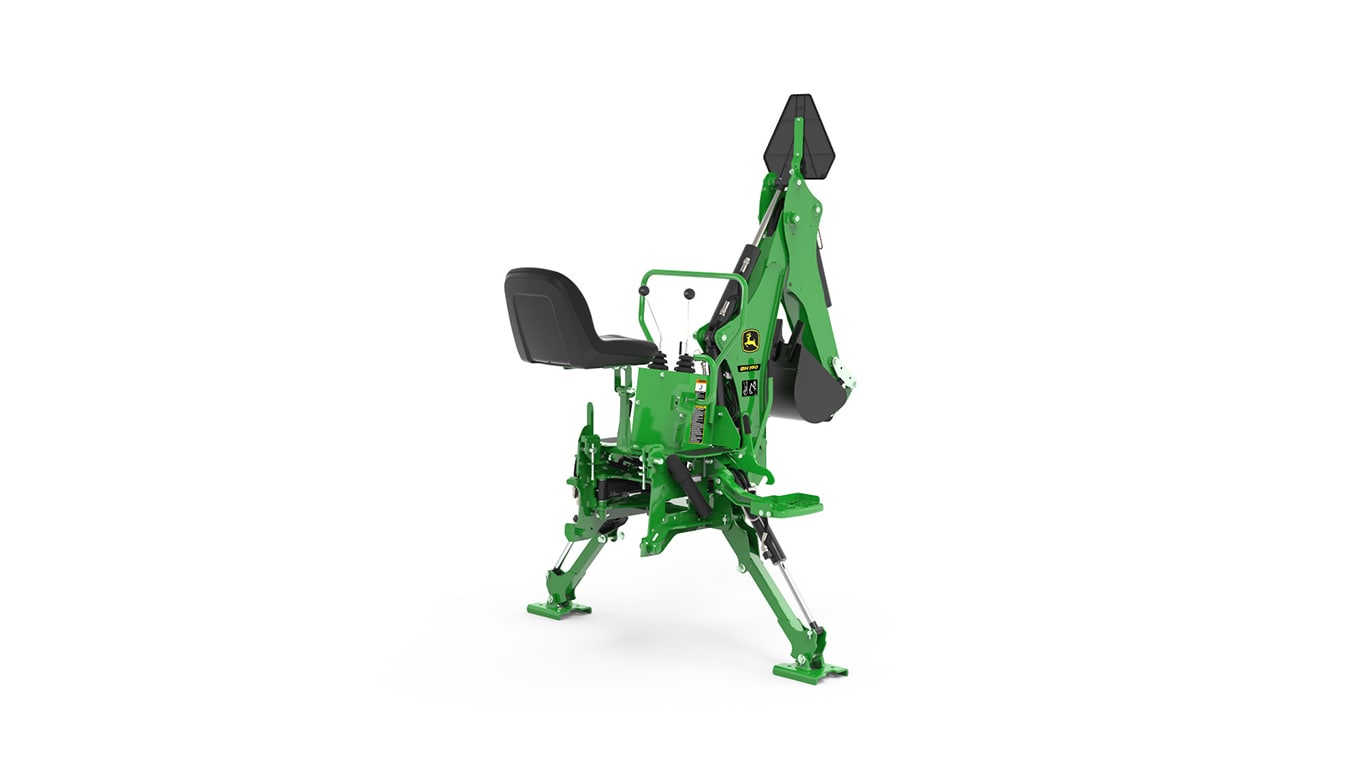

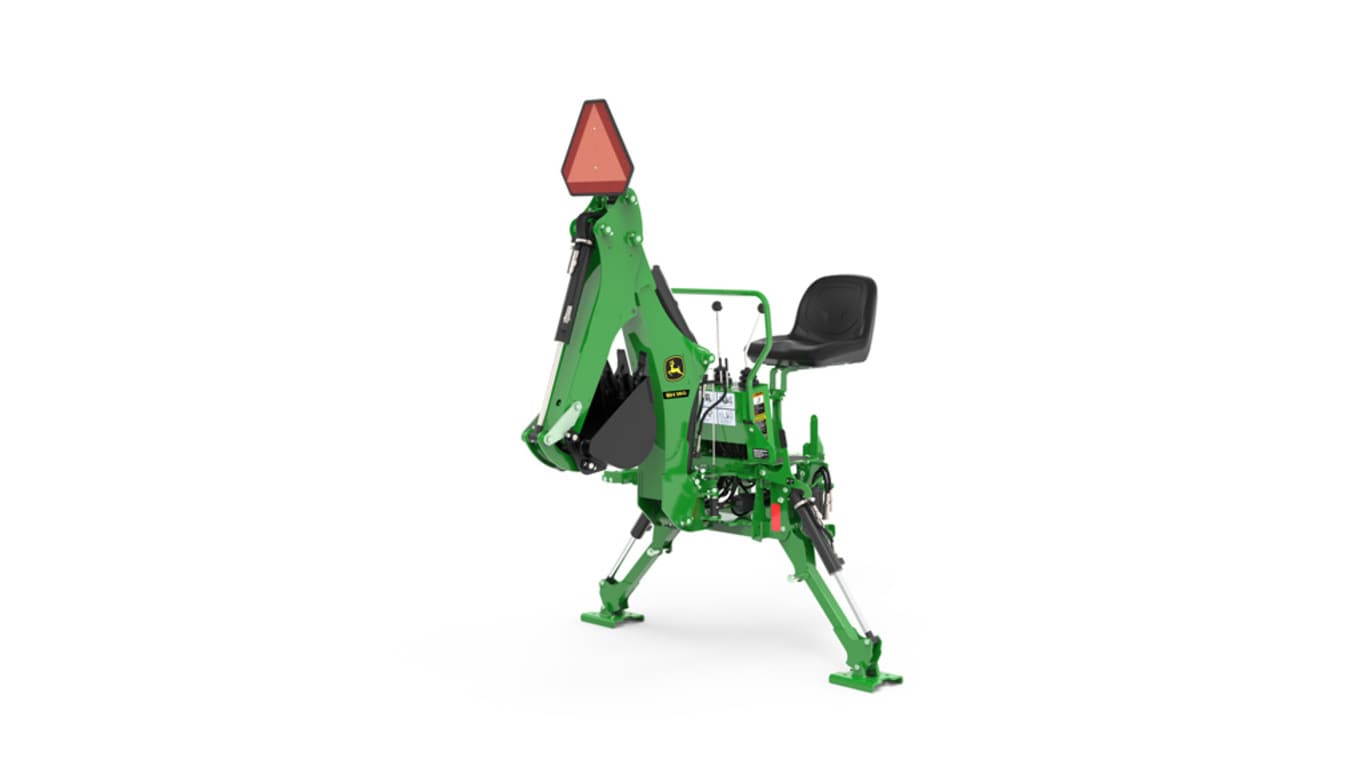

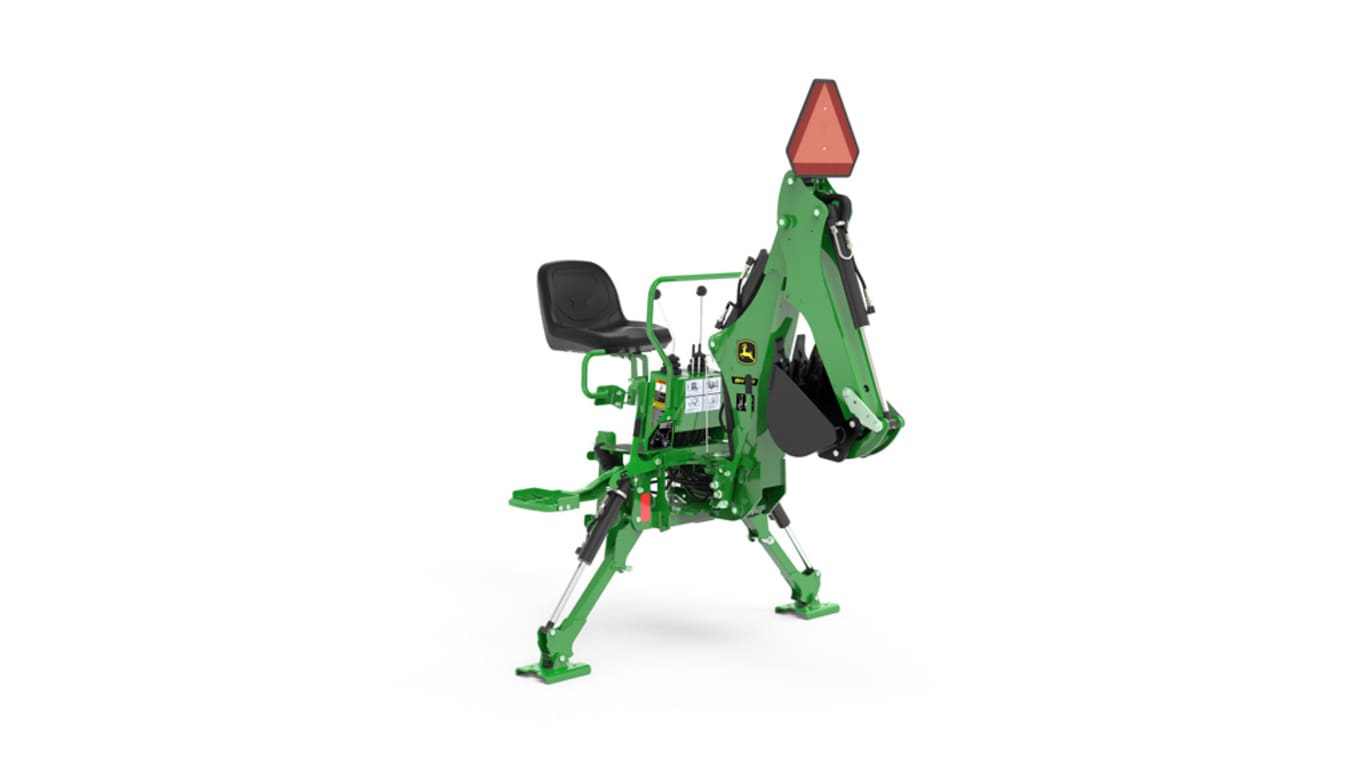

BH160 Backhoe performance overview

BH160 Backhoe on a 1025R Tractor*

Move piles of brush with BH160 Backhoe*

*Overseas loader model shown

The BH160 Backhoe was designed to have best-in-class features priced competitively with the various backhoes in its class in the marketplace. Competitive units were tested and benchmarked to ensure that John Deere provided the right product at the right price.

The following list is a high-level overview of the features that are discussed throughout this content:

Mid-mower deck compatible to allow for compounding of equipment to save operator's time
Durable subframe, which gives strength and rigidity to the tractor frame and transmission
Protective rubber boots on backhoe controls
Tool-free installation/removal in a matter of minutes (once initially installed)
20-cm (8-in.), 31-cm (12-in.), and 41-cm (16-in.) trenching bucket choices with bolt-on, replaceable digging teeth, as well as a ripper option
Optional kits such as rubber street pads for stabiliser feet
Optional mechanical and hydraulic backhoe thumb available to lift heavy logs and piles of brush

Lift heavy logs with BH160 Backhoe

Operator comfort

The BH160 Backhoe has been designed with maximum operator comfort in mind. The features listed below will keep the operator comfortable all day long when working on various projects.

A strong 3-point stance can be maintained when mounting and dismounting the backhoe using the rollover protective structure (ROPS) grab handle, the console grab handle, and the large boarding step mounted to the stabiliser arm.

Stabiliser arm on BH160 Backhoe

High-back seat provides more operator comfort during longer work hours.

High-back seat provides comfortable operation

Stabilisers, boom and swing locks are accessible from the operator’s seat and have a built-in storage location when the backhoe is in use.
Operator platform with non-slip grips are provided.
All controls are in an ergonomically comfortable position and are easily reachable from within the operator platform when in the backhoe position.

Easy installation and removal

BH160 Backhoe

The BH160 Backhoe is designed so the backhoe can be removed in under 5 minutes with no tools needed (once initially installed). Instructions are also conveniently placed on the rear of the backhoe to assist with installing and removing the backhoe. The instructions below are an abbreviated version of what can be found in the operator's manual for installation and removal.

NOTE: The instructions below are for reference only and should not be used for actual installing and removing the backhoe. The operator's manual gives a more complete and proper set of instructions.

Installation

Back up tractor to within 20 cm (8 in.) from backhoe
Park tractor
Connect power beyond system
Remove backhoe boom-lock pin
Back tractor closer to backhoe and use backhoe control levers to align backhoe frame with backhoe mounts on tractor
- Use stabiliser controls to raise and lower stabilisers as needed to position notches in backhoe frame above mount hooks
- Use stabilisers to lower hooks on notches on the back of tractor
- Use boom control to raise boom into back of tractor and install pins to secure backhoe to tractor
Use pins to secure backhoe to tractor
Machine is now ready for use

Removal

Lower stabilisers to a few inches from the ground
Center boom and install swing-locking pin
Remove boom-locking pin if installed
Extend dipper stick and lower boom
Rotate bucket until top edge is parallel with ground
Use boom control lever to lower and place slight down pressure on backhoe
Remove pins from backhoe mounts
Use backhoe controls to lower backhoe toward the ground
Use stabiliser controls to lift backhoe off lower mounting notches
Lower backhoe to ground
Disconnect hydraulic hoses and close connection on the tractor and backhoe side
Drive away for tractor use

Change between 3-point hitch and backhoe

3-point hitch

Removal of the 3-point hitch components is required for the BH160 Backhoe installation. The entire 3-point hitch is easily removed. No special tools or adjustments are needed.

Subframe and power beyond hydraulics for BH160 Backhoe

Subframe

Subframe mounting bundle (BXX10279)

The subframe provides strength to the tractor frame and transmission housing to ensure the integrity of the tractor is not compromised by the forces generated by the backhoe.

The subframe is fully mid-mower deck compatible, regardless of which mower lift system is used. Please see that section of the Sales Manual for more details.

NOTE: Tyre chains are not compatible with backhoe subframe installed.

Grab handles

Grab handle kit (BXX10278)

Grab handle kit (BXX10322)

Grab handle kit (BXX10323)

Grab handles provide the operator with extra support when getting on and off the backhoe.

Power beyond hydraulics

Power beyond hydraulics (1025R Tractor shown)

Power beyond hydraulics are required on the tractor to run the BH160 Backhoe as the kit provides continuous flow to the backhoe.

The power beyond kit for the tractor is not included in the sub-frame attachment and needs to be ordered separately.

Easy and convenient transportation

The BH160 Backhoe uses two different pins for locking out the swing frame and boom for safe transportation or storage. These pins can be quickly removed and stored in the operator platform so they are not accidentally misplaced while using the backhoe.

20-degree ramp angle for easy transport*

*Overseas loader model shown

The BH160 Backhoe has a ramp angle of 20 degrees, which allows for easy transportation on most trailers. This level of ramp angle also makes for better maneuverability across land that is uneven such as a ditch or trench.

Note the line that moves up from the low point of the boom and how it is in line with the bucket when in the storage position. Compared to the competitive units that are in the marketplace, the transport configuration of the BH160 Backhoe allows the backhoe to not have to move when going through a ditch or other uneven terrain.

Mid-mower compatible

BH160 Backhoe*

*Overseas loader model shown

The BH160 Backhoe is fully mid-mower deck compatible. The sub-frame for the backhoe will not interfere with the mower or mower deck linkage, regardless of which mower deck lift system is used.

This feature keeps operators more productive as the mid-mower deck does not have to be removed in order to go out and do backhoe work. It is not recommended to use the mower deck with the backhoe installed due to the extra ground compaction and length of the tractor.

The mechanical mower lift linkage will allow the mower to be raised and lowered with the 3-point hitch removed and the BH160 Backhoe attached.

Enclosed boom and dipper

The boom and dipper are designed with the strength to handle all the necessary loads this backhoe can generate. The boom, dipper, and bucket cylinders are run externally on the BH160 Backhoe. This provides easy access for servicing and maintenance.

The fully enclosed boom on the BH160 Backhoe measures a full 16.5 cm (6.5 in.) at the base and the dipper stick measures 13.9 cm (5.5 in.) at its widest point. These components are larger than competitive backhoes, which gives the BH160 Backhoe a more durable structure and a bigger, heavy-duty appearance.

The BH160 Backhoe was designed with a continuous boom structure rather than a multiple-piece boom that is welded together with side plates some competitors use. This continuous boom provides a more rigid, stronger structure with less weld points that could potentially fail.

Serviceable cylinders

Cylinders

All cylinders on the BH160 Backhoe are fully serviceable; should there be any problems, the cylinders can be taken apart and rebuilt without having to replace the whole cylinder. This saves the operator money should they damage a cylinder through improper removal of concrete, rocks, or tree roots. The boom and dipper cylinders are equipped with circuit relief to protect the cylinder rods during these high-stress activities.

The internal seals on these cylinders are the same high-quality, durable seals that are used on some of the larger backhoes available from John Deere.

The boom cylinder on the BH160 Backhoe is designed with an internal cushion to ensure the cylinder does not come to an abrupt stop at the end of the stroke. This feature is appreciated by novice operators learning to use their backhoe or for the experienced when working in and around delicate surroundings, such as a fence or landscaping.

BH160 Backhoe buckets

406-mm (16-in.) bucket shown

Heavy-duty roll tube for extra strength

The BH160 Backhoe has buckets available in 203-mm (8-in.), 304-mm (12-in.), and 406-mm (16-in.) digging widths. These buckets are designed to be matched with the backhoe for great performance. All buckets have massive, replaceable, bolt-on digging teeth, great for digging out rocks, concrete, and tree roots. The 203-mm (8-in.) bucket has two digging teeth and the 304 mm (12 in.) and 406 mm (16 In.) have three teeth on them.

The buckets are designed with a large, heavy-duty roll tube, highlighted in the picture above on the right. This large tube ensures the bucket has the strength to handle all the tough situations in which the backhoe will be used.

178-mm (7-in.) trenching bucket

Bucket specifications

	203-mm (8-in.) bucket	304-mm (12-in.) bucket	406 mm (16 in.)	178-mm (7-in.) trenching bucket
SAE struck capacity	0.011 m³ (0.42 cu ft)	0.019 m³ (0.66 cu ft)	0.025 m³ (0.9 cu ft)	0.0045 m³ (0.16 cu ft)
Heaped capacity	0.013 m³ (0.46 cu ft)	0.022 m³ (0.76 cu ft)	0.03 m³ (1.06 cu ft)	0.0057 m³ (0.2 cu ft)
Shipping weight	17 kg (38 lb)	22 kg (49 lb)	27 kg (59 lb)	16.2 kg (35.8 lb)

NOTE: These buckets are designed to work with only the backhoe specified and will not work with any other John Deere backhoes.

Backhoe attachments and accessories

New Features

Kit Ready – Backhoe Lighting

These backhoes are pre-drilled for the mounting of the new LED work light brackets and have a knockout for the switch on the mainframe. No drilling or cutting is required for installation.

These work lights are mounted on the dipper shining light directly into your work area. When the project or job extends into those late hours, these work lights illuminate exactly where you need it – at the bucket.

Kit Ready – Backhoe Floor Mats

Fender LED Work Lights

See More with a Wider Beam

The updated work lights spreads light over a broader area, giving you better visibility across your work area at night

Mounting holes are pre-drilled for simple installation with push pins. These floor mats give the customer a sturdy and comfortable feel by reducing vibration and providing more grip when getting in and out of the backhoe. The rubber floor mat is easily cleaned and prevents scratching and scuffing of the paint.

Attachment ordering information (Orderable through Parts)

Kit Description	Bundle Number
BH160 & BH270 Work Light Kit	BXX11161
BH160 Floor Mat	BXX12020
BH270 Floor Mat	BXX12021

Note:

The work light kit is retrofit compatible with 260B, 270B, and 370B backhoes (drilling required)

The BH160 Floor Mat is retrofit compatible with 260B backhoes (drilling required)

The BH270 Floor Mat is retrofit compatible with 370B backhoes (drilling required)

BXX10248 backhoe hydraulic thumb kit

BLV10750 backhoe mechanical thumb kit

BXX10247 backhoe ripper tooth

BLV10986 rubber street pad kit

BH160Backhoe
