Mower Decks
The Way To Mow Well Fast is Here.
All our mower decks are solid stamped out of steel to meticulous design specifications for a superior cut. The kind of cut each and every backyard deserves.
4 Mower Decks Designed to Bring You Great Looking Lawns

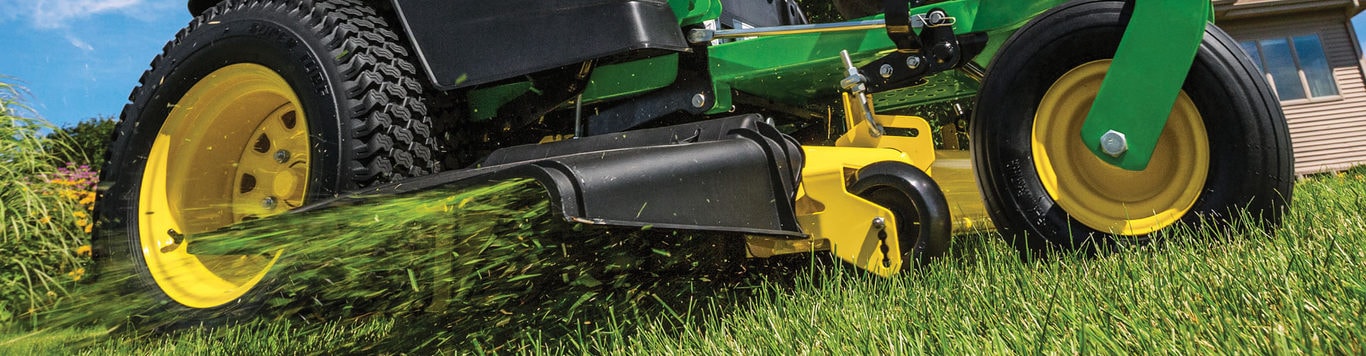

Accel Deep™ Mower Deck
Allows for better grass dispersion and quality of cut at faster ground speeds.
- 10-gauge steel 107 cm (42 in.), 122 cm (48 in.) and 137 cm (54 in.) decks
- Flat top design
- Deep shell extends all the way around
- MulchControl™-capable
High Capacity
Wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
- 9-gauge steel
- Deep-deck design delivers excellent airflow
- MulchControl-capable
- AutoConnect-capable (X700 Signature Series Ride-on Mowers only)
Edge
A deep-deck mower design lifts grass for a clean, even cut.
- Solid, stamped-steel deck
- Smooth underside
- Rolled outer edge
- 3-in-1 blade
EdgeXtra
Designed with superior airflow for a high-quality cut and uniform discharge even in difficult mowing conditions.
- 3-spindle mowing technology
- 4-point mounting system
- Wider anti-scalp wheels
- Designed to handle a large volume of material
- Onboard deck-levelling system
.
Our Newest Deck: Accel Deep™ Mower Deck
Excellent cut quality
Flat-top design enables clean flow of material throughout the deck and out of the discharge area. This prevents cut material from interfering with the cutting of incoming grass, allowing the blades to cut the material cleanly.
More productivity
Deep, flat-top deck with a large discharge opening allows cut clippings to exit the mower deck with limited re-cutting, so more power is available for cutting and processing incoming grass.
Minimal recutting improves the mower's capacity to maintain excellent mowing performance in difficult conditions and at higher speeds.
Clean operating
Smooth, flat-top deck stamping has few places for material to catch and collect on top of or underneath the deck, so the mower deck stays cleaner and is easier to clean when serviced.
Limited amount of recutting means less small pieces of grass clippings collect on the mower deck or the operator.
Superior durability
Designed to ensure durability and many hours of trouble-free operation.
- 42A is stamped from 12-gauge, 2.7 mm (0.105 in.) steel and has a 16 percent heavier overall weight than the Edge Xtra™ 107 cm (42 in.) deck.
- 48A is stamped from 10-gauge, 3.4 mm (0.135 in.) steel and has a 23 percent heavier overall weight than the Edge Xtra 122 cm (48 in.) deck.
- 54A is stamped from 10-gauge, 3.4 mm (0.135 in.) steel and has a 3 percent heavier overall weight than the Edge Xtra 137 cm (54 in.) deck.
Features
- Double-captured mower wheels for greater strength
- Low-tension belt-drive design for reduced bearing side-load
- Outer edge of the deck protection for strength and long life
- Easy-to-access spindle grease fittings with flip-up shields where applicable
- Dual-stage electrostatic-primer and powder-paint coatings to provide extra protection from rust
