Harvest Monitor is an industry-exclusive technology from John Deere. Harvest Monitor gathers and analyzes valuable harvest information, enabling sugarcane producers to make smarter decisions that drive down harvesting costs and improve overall farming practices.
From the cab, the operator can monitor total tons harvested, harvester productivity, trash percentage, and fuel consumption. The operator can then use this information to make on-the-fly adjustments to optimize performance.
SmartClean is the latest enhancement of Harvest Monitor that allows automatic control of primary extractor fan speed based on the operator’s preferences in order to obtain the most profitable balance between cane cleanliness and reduced loss.
Through the John Deere Operations Center, the data can be processed to generate yield and other valuable maps and reports that will guide producers into making the right decisions on soil and water management, chemical application, crop renewal, field layout, equipment logistics, and much more.
Harvest Monitor with SmartClean is available as an option for model year 2021 CH570 and CH670 Sugar Cane Harvesters as part of Cane Advisor™ machine optimization technology package (code 2904). It can also be purchased as a field-installed kit for all CH570 and CH670 models. A separate SmartClean field-installed kit is available for CH570 and CH670 models already equipped with Harvest Monitor.
Harvest Monitor is much more than just a yield monitor. It includes:
Harvest Monitor was designed to operate efficiently in all weather conditions. It is a low maintenance system with no additional wear items thanks to its optical technology that does not require direct contact with the cane.
High-resolution, stereoscopic optical sensors and pattern recognition technology are used to scan the flow of cane as it passes through the elevator, identifying cane volume and differentiating it from trash. Four light-emitting diode (LED) lights illuminate the sampling area to ensure uninterrupted visual clarity.
The system converts the volumes to mass in order to obtain tons of cane and extraneous matter level.
With the use of sensors, the SmartClean system detects cane being lost through the primary extractor and displays it on the CommandCenter screen as an index. The level of residue or cane leaves being removed is also detected and displayed as an index.
Aiming at the best economic outcome for the operation, the operator selects the target level of the following parameters and lets the system continuously and automatically find the appropriate primary extractor fan speed:
SmartClean enables operational consistency throughout the day regardless of weather conditions and individual operator practices.
Understanding the residue level is important for biomass power generation projects to determine residue collection logistics and viability.
Data points are georeferenced to precise field locations using global positioning system (GPS) technology. With appropriate software, a variety of informative maps can be generated. The system operation requires a GPS receiver (StarFire 6000 Receiver is recommended).
To keep records of the number of wagons completed, the operator will click the “Save Load” soft key every time a unit is loaded. The screen will show the total loads from a field, shift, whole season, or another preselected period of time. The sugar mill destination can also be recorded for each load.
While harvesting, the display will show:
The CommandCenter display layout is configurable so the operator can have Harvest Monitor and SmartClean displayed together on the same screen.
Average, best, and current values of extraneous matter, fuel consumption, and pour rate are displayed instantaneously or as historical figures. Also available on the display is a summary report of all data.
Pour rate is defined as how fast the cane flows through the machine and is measured in tons per hour (ton/h). A soft key enables the operator to toggle between elevator hours (elevator pour rate) and total harvester hours (harvester pour rate). This soft key also changes the reading of fuel consumption using either elevator or total harvester hours.
A yield map can also be seen on the display, as well as live video of cane as it flows through the elevator.
With SmartClean activated and based on live information, the operator can make other quick adjustments to the harvester, like ground speed and FieldCruise™ settings, to maintain the most profitable harvesting rate while delivering the preferred level of cane quality and reduced loss.
The system will also help to determine when the chopper and extractor fan blades need to be replaced, or if other related service is required in order to maintain optimum operating performance.
The live yield data simplifies daily logistics decisions, including the number of transport units required and the correct timing to efficiently complete the assigned cane quota. In addition, field harvesting progress and remaining unharvested area can be seen on the screen for a great visual of the operation that can facilitate the transition to the next field.
Georeferenced samples that include elevation readings are taken every second. As the harvester travels down each row, numerous elevation readings representing the topography of the area harvested are recorded.
Example of a typical field:
The Harvest Monitor data can be processed through John Deere’s Operations Center to generate maps and reports that will help optimize operations.
Different types of maps can be created for a clear visualization of current farm conditions:
The maps and reports will help to determine the best solutions for:
Information can also be used to evaluate results of previously implemented solutions to make adjustments if needed.
During harvesting, the Harvest Monitor can be calibrated manually by entering weight information for the load supplied by the mill.
The maps can also be calibrated using field report data supplied from the sugar mill.
Google Earth is a trademark of Google LLC.
The premium smart cab is 30 percent more spacious and offers all the necessary comfort, convenience, and intelligent features operators will ever need.
Reduced noise levels (76 dB) plus improved air conditioning cooling with overhead vents will keep the operator relaxed during long working hours.
Operators can access the cab conveniently from the right or from the left.
The wide windshield is curved for enhanced visibility and strength. The left- and right-hand folding arms, adjustable rearview mirrors, and the in-cab convex mirror facilitates viewing the elevator and wagon.
The cab comes standard with windshield and side glass wipers with washer fluid nozzles.
Eight lights are used on the cab, including four high-luminosity lights that greatly facilitate night operation.
The air suspension seat has multiple adjustments and swivels so operators can find the perfect fit and viewing angle.
Training is made safer and easier with a training seat standard in every CH570.
Adjust the double-tilt telescopic steering column to driving preferences. Road controls are located on the steering column.
The refrigerator, 37 L (1.3 cu ft) in size, keeps beverages and food items cold, even in a warm environment. The compressor-style refrigerator functions with independent temperature control and is powered from a 12-V receptacle in the rear cab wall that is powered when the ignition switch is in the run position.
Access to the refrigerator is easy because the instructor seat can either be lifted, exposing the contents in the active refrigerator, or the front door of the refrigerator can be opened, also providing access to the contents.
NOTE: The refrigerator is not available for all markets.
Standard auxiliary lights are halogen type, located on the elevator (two) and the cooling package (two). For optimum brightness on the wagon, add the optional LED auxiliary light kit.
The optional auxiliary light kit includes a topper boom light to service base cutter and front-end components.
User-friendly, and quick to locate, the CommandARM control center is home to every operating feature needed for a simple yet productive day. That includes hot keys for all common harvesting adjustments as well as air conditioning, radio (if equipped), and lighting controls. Navigate through the CommandCenter™ system screens using the navigation control knob located on the CommandARM.
The color, digital cornerpost display graphically illustrates everything an operator needs to know about engine and harvesting parameters. It is located in the optimal line-of-sight to minimize operator disruption.
The 25.4-cm (10-in.) GreenStar 3 2630 Display puts vital machine and harvesting information within easy reach. With touchscreen technology, it is simple to make quick adjustments. It provides 70 degrees of swivel for transport or viewing preference. Also, the banner bar has been improved with engine on/off key. A banner bar will show hours for harvester, engine, elevator, AutoTrac™ assisted steering system, floating crop dividers, and contour base cutter height control. Once the engine is started, it shows engine and harvesting functions. Icons turn green when active.
It is video capable, and it can run AutoTrac.
To maintain quality and uniformity of the operation, save fuel and protect assets, supervisors can lock important settings such as:
A feature allows the supervisor or operator (if authorized) to set the hydraulic pressures, and frequency (duration of over pressure) that will activate an alarm alerting of a choke on either the base cutter or the chopper. The display also includes diagnostic trouble-code readings that will alert the operator of a possible malfunction.
The multifunction control lever fits the operator’s hand comfortably to give smooth, hydrostatic speed control. It also controls all frequently used harvesting functions.
Three programmable buttons are included to customize harvester functions to operator preferences.
No longer on the floor, the elevator swing is easily controlled from the multifunction control lever. One extra click and the elevator will swing 90 degrees.

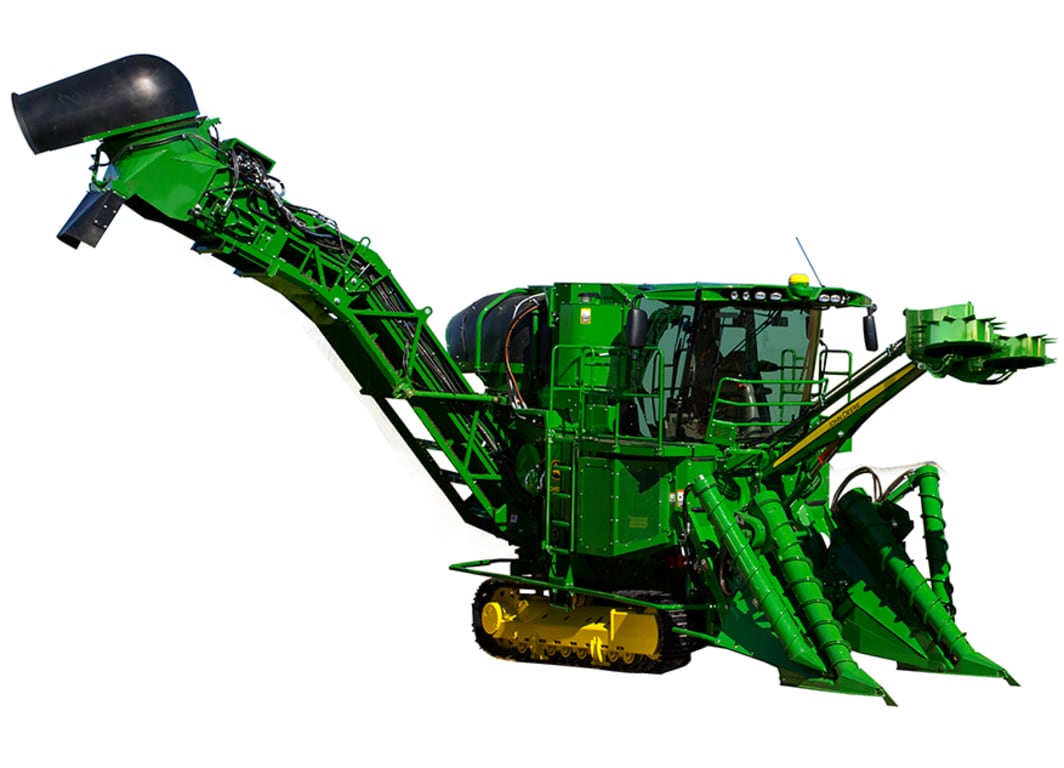

The CH570's basecutter and chopper set the benchmark for cutting and feeding in the global market. The standard 251-kW (337-hp) engine option has the basecutter and chopper on one high-pressure hydrostatic circuit driven by a powerful piston pump maximizing efficiency. The 280-kW (375-hp) option includes an additional piston pump so that the basecutter and chopper are in two independent circuits, increasing the capacity to process the heaviest cane.
The basecutter is driven by a powerful hydraulic piston motor. Its center-driven design with just four gears, balances the load and reduces wear, and is housed in a more robust cast-iron gearbox.
The basecutter features large, standard 61-cm (24-in.) disks that can be upgraded to 55.9-cm (22-in.) steel disks to allow dirt to flow through in muddier conditions.
Contour basecutter height control is a factory option that adjusts the basecutter height to achieve a predetermined cane stubble height.
Once cut, the CH570's rotating, standard three-paddle closed buttlifter kicks the cane stalks up into the feedroller path and removes excess dirt before it enters.
This option will allow more dirt removal than the current three-paddle closed option.
The modular chopper assembly is independent from the harvester’s main frame, providing a better fit and easier service. It sits on rubber mounts to absorb vibrations.
The chopping area is larger with longer blades and contact is even through the whole length.
Simpler service, longer component life, uniform higher quality billets, and better feeding into the primary cleaning chamber are the results.
A powerful, hydraulic-piston motor drives the 380-mm (15-in.) differential chopper fitted with either six, eight, or 10 95-mm (3.75-in.) blades. The externally mounted bearings are simple to replace. The chopper shafts have no splines to wear, and they can easily slide out from the side for service. The chopper cover is International Organization for Standardization (ISO) compliant.
Eight-blade and 10-blade overlap choppers are also available, increasing the life of the blades in most conditions and simplifying removal and replacement.
The blades are 910-mm (35.8-in.) long or 6.3 cm (2.5 in.) longer than previous model.
Approximate billet length:
An exclusive sill roller helps to feed the cane billets into the primary extractor. Even billet movement augments cleaning. It also prevents billet back-feeding and accumulation on the sill.
The CH570's reliable cleaning system yields the cleanest cane in the industry. Cleaner cane, less billet loss, and less downtime will bring more profit.
The CH570 boasts the largest primary extractor fan in the industry — using four blades that measure 152 cm (5 ft) in diameter. This fan cleans at lower speeds, reducing horsepower consumption and cane losses.
The fan speed can be adjusted effortlessly from the cab to adapt to the different cane conditions by simply varying the pump displacement. The fan is driven by a robust and efficient hydrostatic system with piston pump and motor.
The fan is mounted directly to the motor shaft, which means no bearings, no blade balancing, less vibration, and fewer components. The motor drive support system features four rubber-mounted legs to improve fan stability and reduce vibrations. The primary extractor fan's motor is internally mounted and does not need to be removed for transport.
The conical hub cover reduces air voids and recirculation while the wide-design blade produces more airflow at lower rpm. The hard-surfaced blades combined with operating at a much lower speed results in significantly longer blade life.
The smart power primary extractor feature is available to automatically reduce the extractor fan speed to a preset minimum when the elevator is turned off.
The CH570 features a high-capacity, structural tube-frame elevator for extended durability. The elevator's perforated floor allows additional dirt to fall through after primary extraction. The top and bottom idler sprockets reduce wear and prolong the elevator's chain life.
The tall sidewalls and 18-cm (7-in.) reversible slats will handle the heaviest cane, keeping billets from toppling over and falling back down the elevator. All of this sits on the CH570's heavy-duty swing table, designed to withstand the heaviest loads and toughest field conditions. The swing table also features an exclusive slew wiper to keep the area clean.
The elevator hoses are routed inside the solid frame, promoting longer life by improving protection and minimizing exposure. Bolt-on elevator extensions are also available to provide additional reach for wider row spacing. The extensions are 30.5 cm (12 in.) for wheel or track units; and 61 cm or 86 cm (24 in. or 34 in.) for track units only. The 61-cm (24-in.) extension can be ordered for wheel harvesters but it requires the less-secondary-extractor option.
On the CH570, the elevator controls were moved from the floor pedals to the multifunction control lever for ease of operation. The control switches feature a double-detent system so that the elevator swings approximate 90 degrees without having to depress the switch continuously. The above will help the operator to concentrate on other functions when turning around on the headland while the elevator is rotating.
The CH570's elevator also has a grease cylinder for easy elevator chain tension adjustment and a nitrogen accumulator to minimize shock loads.
The secondary extractor provides even more cleaning prior to loading. Its unique design allows trash to be blown away from the wagons more efficiently. The hood rotates a full 360 degrees, so it can be set at any angle.
The hydraulically adjustable bin flap directs billets into the wagon. The ideal fan speed allows the best cleaning with low horsepower consumption. For growers who burn cane, a less-secondary-extractor option is available.
The unique floating crop divider technology was inherited by the CH570 and enhanced with an updated linkage system. The floating crop dividers follow the ground profile without plowing while constantly keeping the toe under lodged cane. The benefits are lower soil content, reduced cane loss, and minimum soil disturbance.
The precision of the exclusive contour basecutter height control is enhanced with the addition of a pressure signal to the existing position input. The system ensures that cane is cut at the desired height, resulting in higher yield (tons of sugar/ha), cleaner cane, and healthier stubble for improved future crops.
Operators can count on these systems to accurately control the basecutter and crop dividers. This allows more time to concentrate on other functions such as topping, following the row, and loading.
Basecutter height control and floating crop dividers are included in the Precision Ag, Machine Optimization Technology option (code 2903).
To reduce headland turnaround time, end-of-row and return-to-cut technology is also available. The harvester and crop dividers rise simultaneously with a single button when exiting the field and, upon entering the next row, the unit returns to the predefined cutting height setting.
Stress and fatigue are significantly lessened while optimizing harvester performance. The end-of-row and return-to-cut systems make the harvester operation so simple that the learning curve for inexperienced users is diminished considerably.
The HMS adds a powerful productivity tool to the CH570 Sugar Cane Harvester. HMS greatly reduces operator fatigue through the automatic sequencing of harvesting functions normally associated with headland turns.
HMS can be programmed to control some of or all the following harvesting functions:
Producers can opt for contour basecutter height control and floating crop dividers to maximize HMS capabilities.
Using HMS with Smart Mode enabled increases efficiency on the headland even further by automatically reducing primary extractor fan speed to a preset minimum as soon as the elevator is off.
Once HMS has been enabled, the system is ready to go to work. There is also an easy-to-access interface and a walkthrough wizard so operators can learn how use the system directly in the cab.
The system includes a prediction algorithm to update the cutting side, reducing the need to press swap buttons.
The CH570 and CH670 Sugar Cane Harvester extended life elevator and feedroller system option includes John Deere XWear prolonged-life components. XWear parts combine abrasion-resistant materials with the latest treatment technologies to deliver the longest life at a lower maintenance cost. XWear parts are ideal for extreme operating conditions or for simply getting through long harvest seasons without excessive downtime. The option includes highly abrasion-resistant elevator floor segments and chain wear strips, additional hard-surfaced feedrollers, extreme-duty tapered roller bearings, and hardened elevator chain sprockets.
