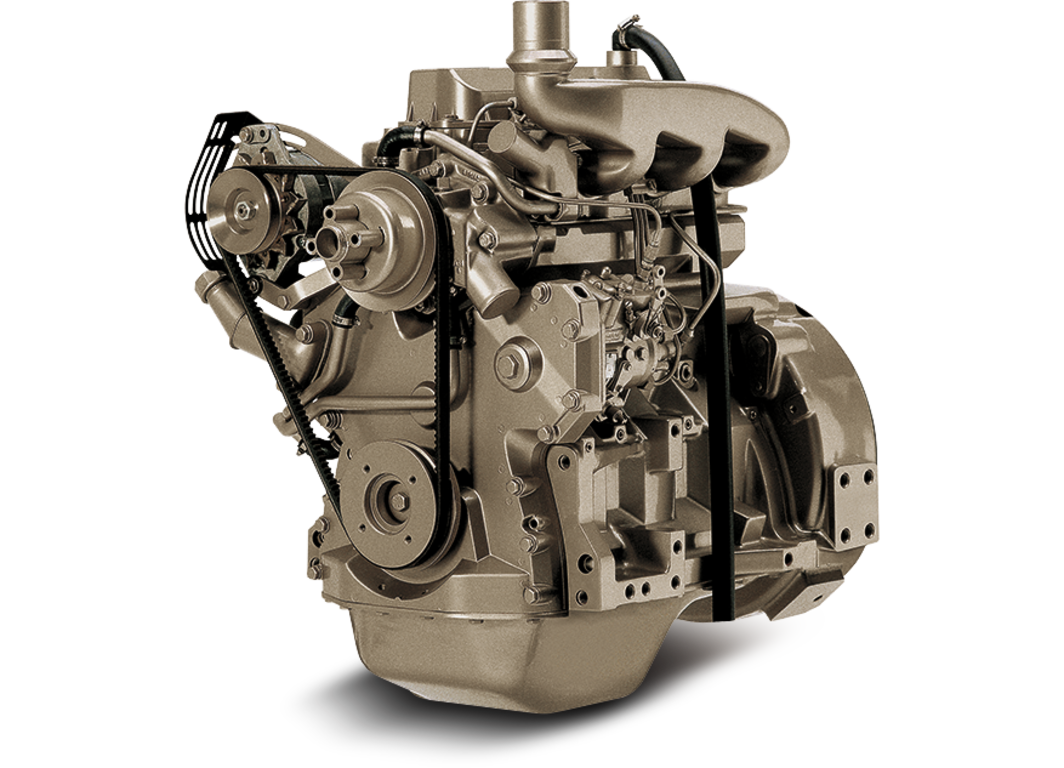

3029TF1202.9L Industrial Diesel Engine
- PowerTech ™
- 36 - 59 kW (48 - 79 hp)
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 3029TF120 2.9L Industrial Diesel Engine |
Emissions Certifications
| Non-Emissions Certified |
|---|
General engine data
| Model | 3029TF120 | |||
|---|---|---|---|---|
| Number of cylinders | 3 | |||
| Displacement-- L (cu in) | 2.9 (177) | |||
| Bore and Stroke-- mm (in) | 106 x 110 (4.17 x 4.33) | |||
| Compression Ratio | 17.2:1* | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged | |||
| Length - mm (in) | 716 (28.2) | |||
| Width-- mm (in) | 519 (20.4) | |||
| Height-- mm (in) | 928 (36.5) | |||
| Weight, dry - kg (lb) | 328 (723) |
Performance data range
| Intermittent - Rated power/Rated speed | 36-59 kW (48-79 hp) @2500 rpm | |||
|---|---|---|---|---|
| Intermittent - Peak power | 37-59 kW (50-79 hp) @2400-2500 rpm | |||
| Intermittent - Peak torque | 189-269 N·m (139-198 ft-lb) @1000-1800 rpm | |||
| Intermittent - Torque rise | NA |
