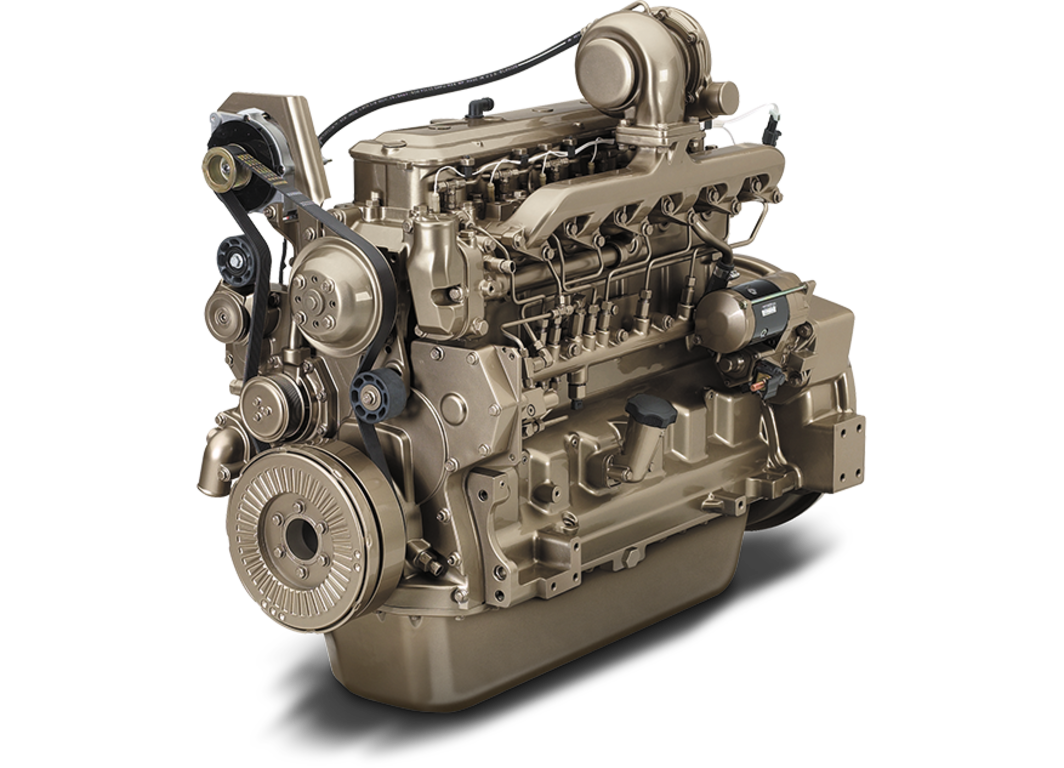

6068HF2756.8L Industrial Diesel Engine

PowerTech ™
129 – 187 kW (173 - 250 HP)

Contact a Distributor

Diesel Engine Technology

Print

6068HF275

Contact a Distributor

Features

Features

Expand All Collapse All

Dynamically balanced crankshaft

Crankshafts are machined from a heat-treated, high carbon steel forging

Forged-steel connecting rods

Unique 45-degree design permits the use of larger crankshaft connecting-rod bearings for increased durability

Self-adjusting poly-vee fan drive

Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
Poly-vee design provides more than twice the drive capacity of comparable vee-belts

Replaceable wet-type cylinder liners

Provides excellent heat dissipation
Precision machined for long life

Either-side service

Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine

500-Hour oil change

Customers save significant costs on oil, filters and labor with a 500-hour oil change interval

Standard gear auxiliary drive

Standard gear auxiliary drive produces up to 50 hp (37 kW) for gear-driven accessories

Mounting points

Standard front and side mounting points provide easy installation and application flexibility

Electronic-controlled rotary injection pump

Electronic-controlled rotary injection pump distributes the precise amount of fuel required by each cylinder at exactly the right time
Electronic controls monitor engine speed and load to determine fuel timing

SAE J1939 standard communication link

Industry standard, which provides an interface with vehicle systems, like the transmission, hydraulics and various accessory drives minimizing machine complexity and reducing the installed cost

Show More Show Less

Specifications

Specifications

Select Different Model

Specifications

John Deere

6068HF275

6.8L Industrial Diesel Engine

Export to Excel

1 2

Emissions Certifications

CARB
EPA Tier 2
EU Stage II

General engine data

Model	6068HF275
Number of cylinders	6
Displacement - L (cu in)	6.8 (415)
Bore and Stroke mm (in)	106x127 (4.17x5.00)
Compression Ratio	17.0:1
Engine Type	In-line, 4-Cylce
Aspriation	Turbocharged and air-to-air aftercooled
Length - mm (in)	1104 (43.5)
Width - mm (in)	623 (24.5)
Height - mm (in)	1015 (40.0)
Weight, dry - kg (lb)	587 (1294)

Performance data range

Application ratings	Intermittent
Rated power/Rated speed	129-187 kW (173-251 hp) @ 2000-2400 rpm
Peak power	129-187 kW (173-251 hp) @ 2000-2400 rpm
Power bulge	NA @ NA rpm
Peak torque	740-930 Nm (546-686 lb-ft) @ 1400 rpm
Torque rise	NA
