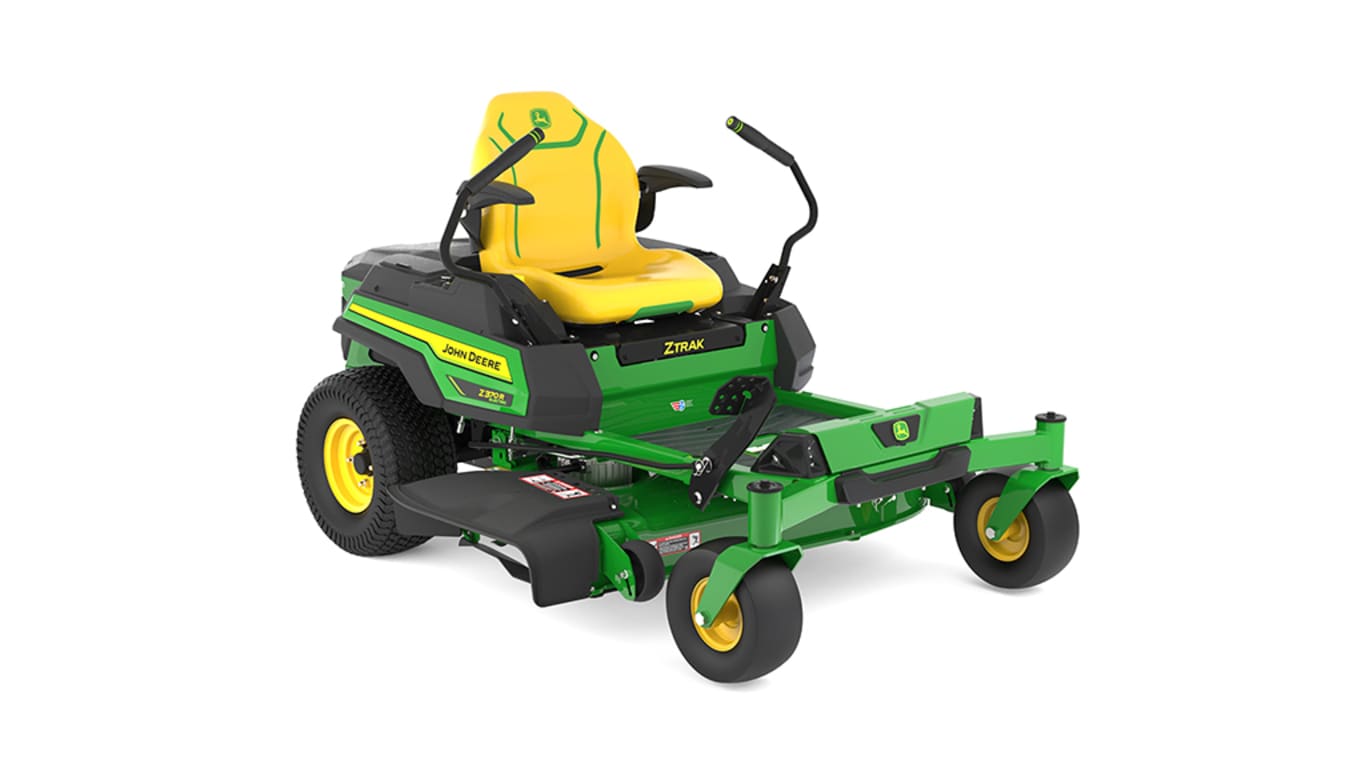

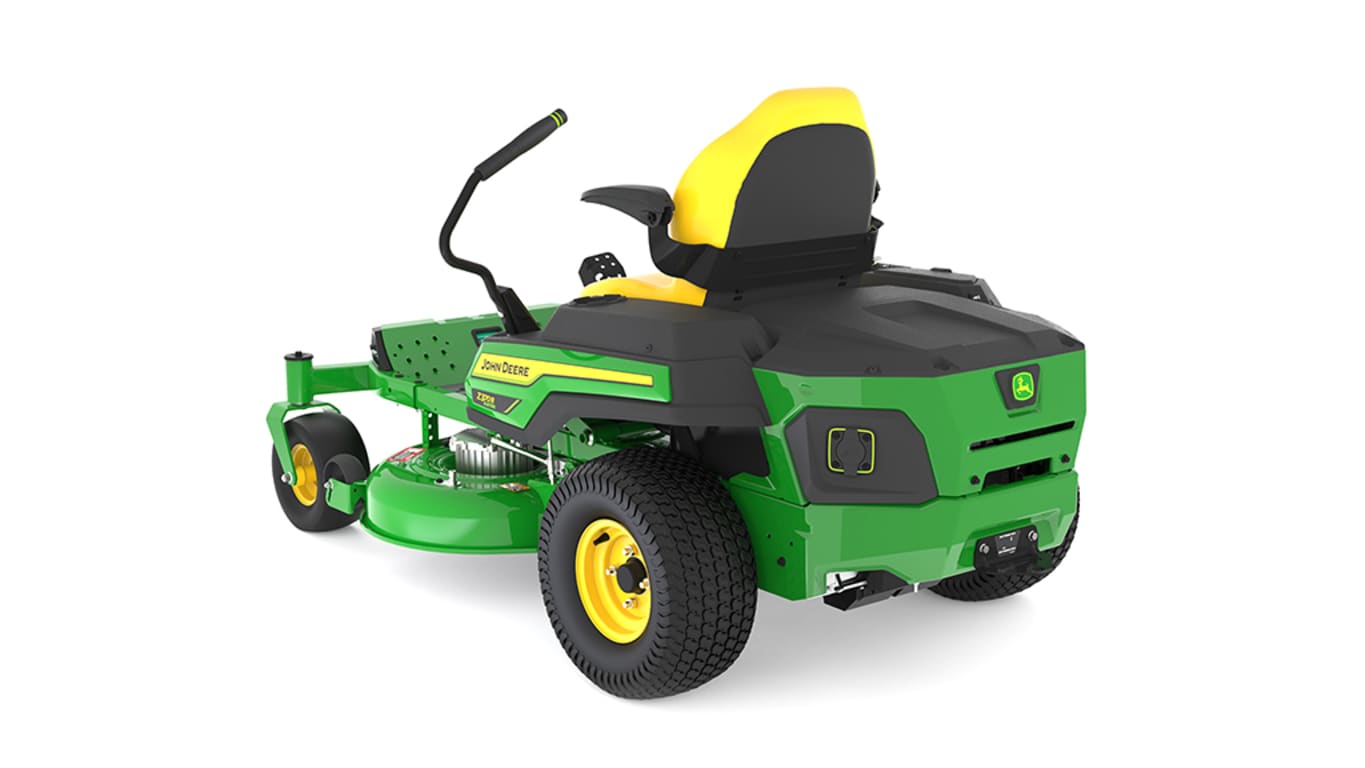

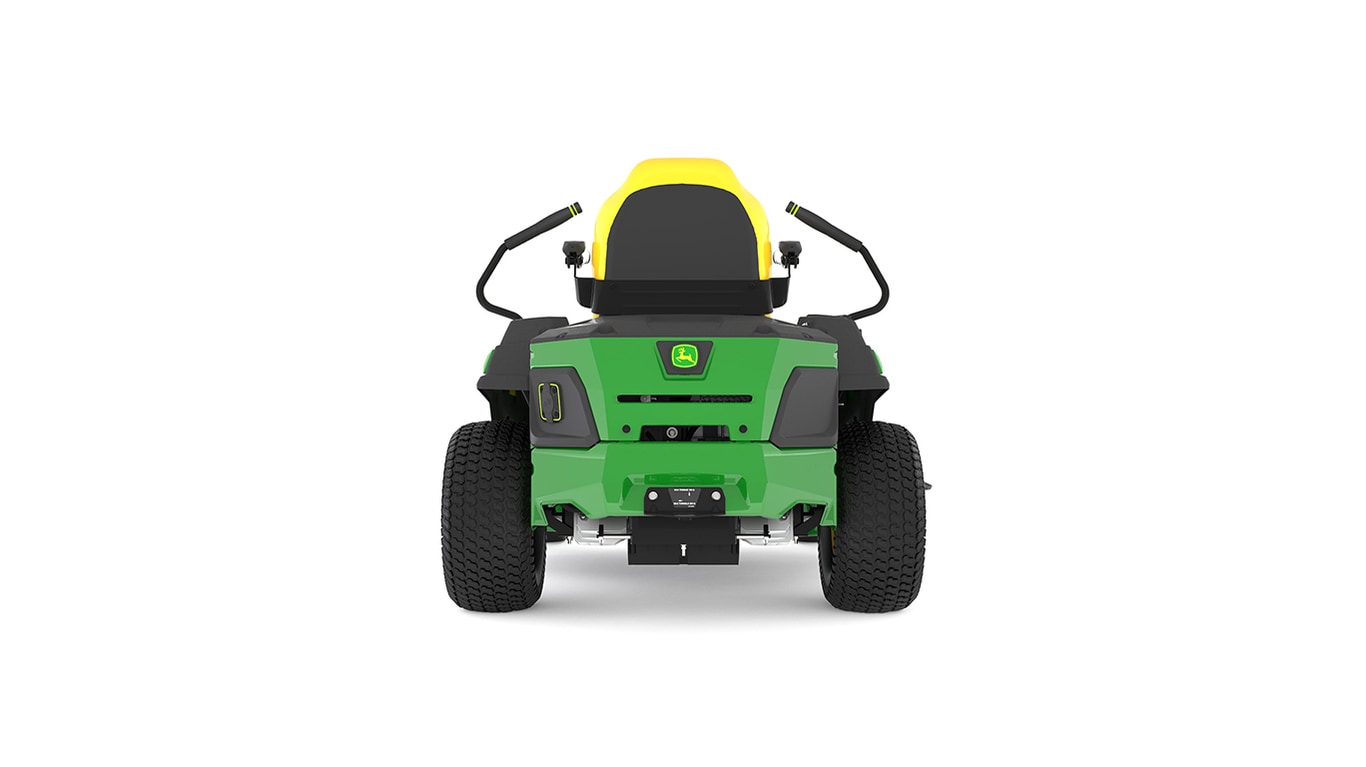

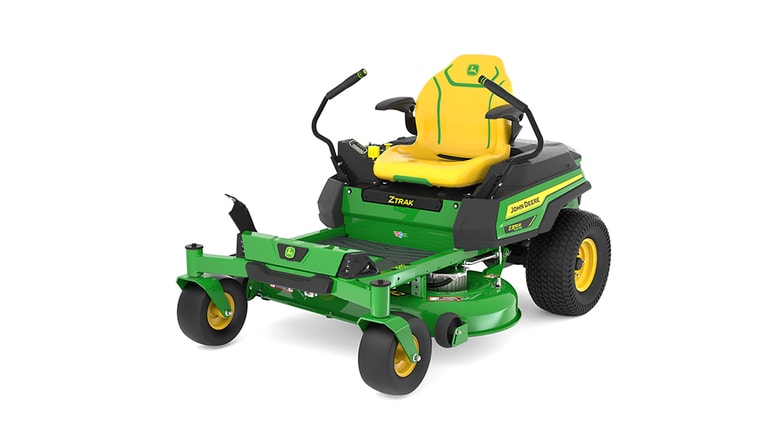

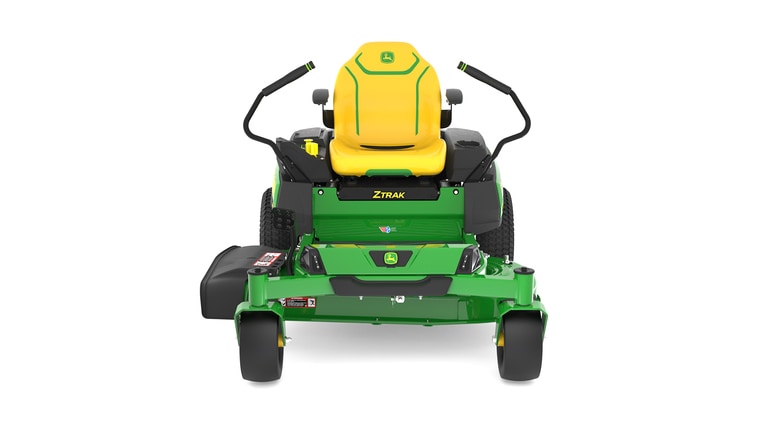

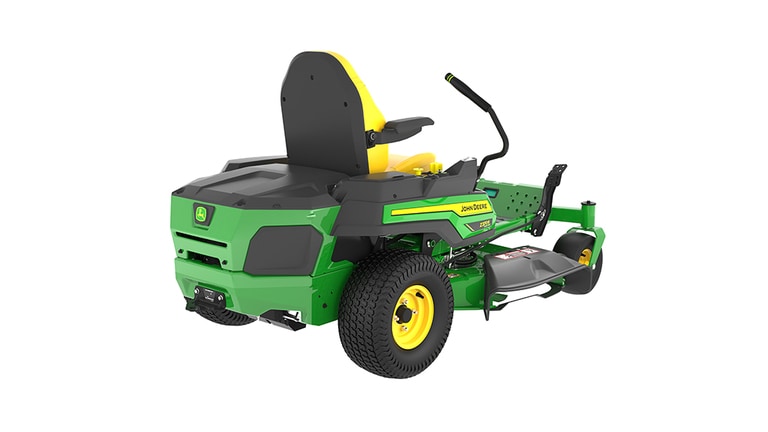

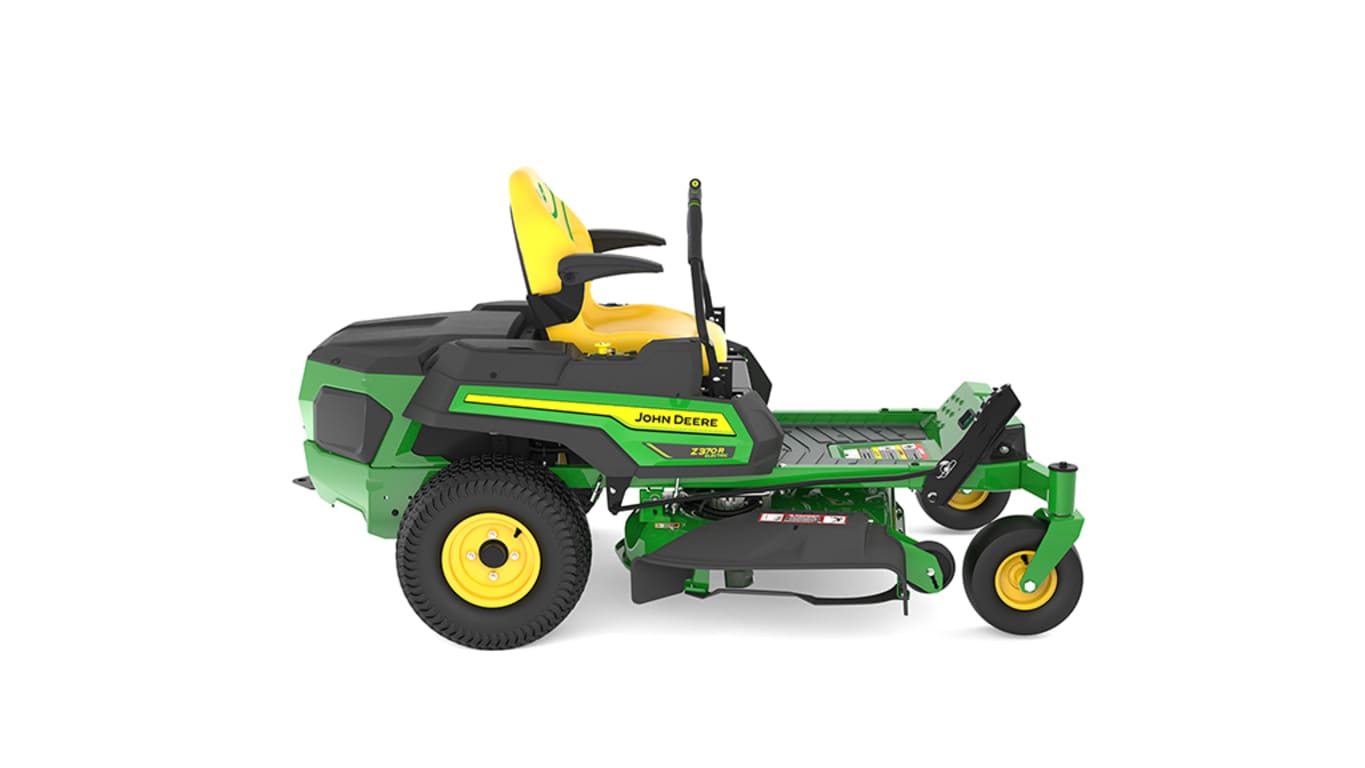

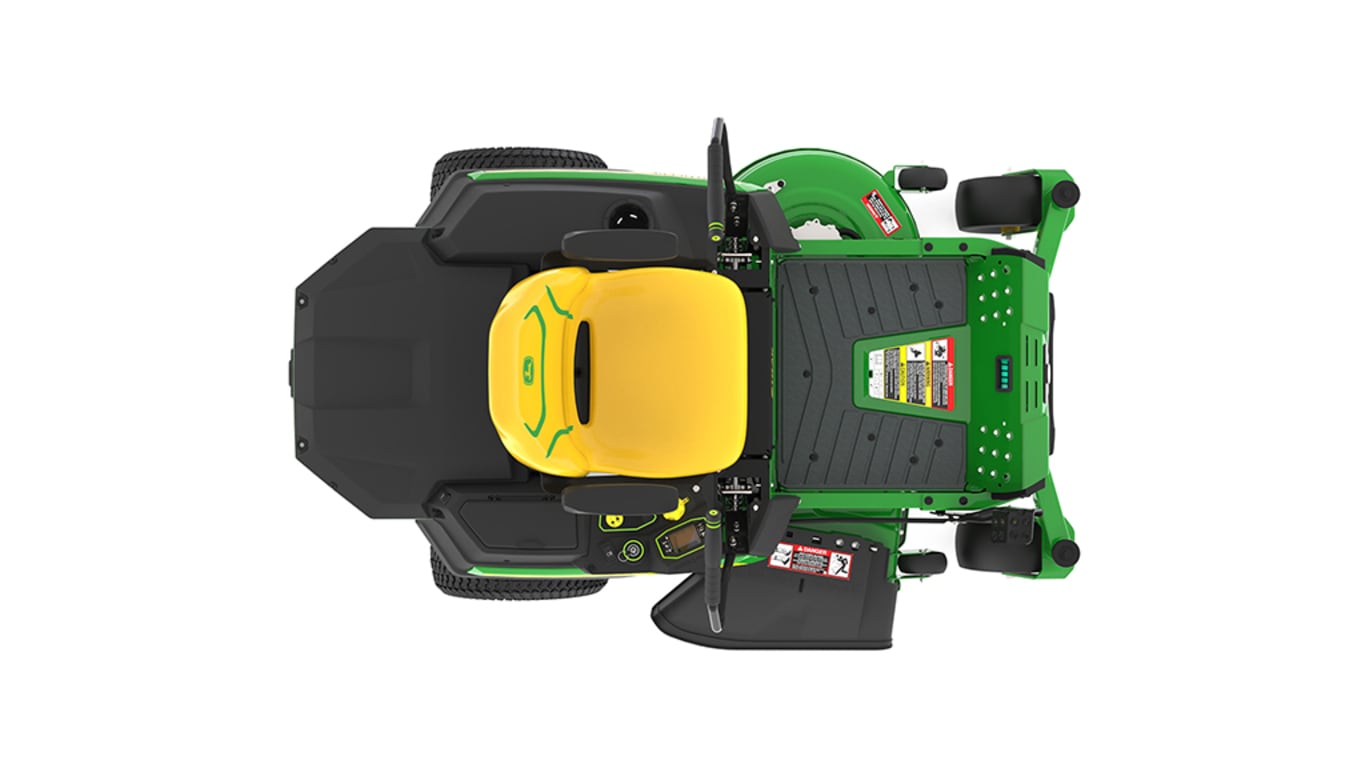

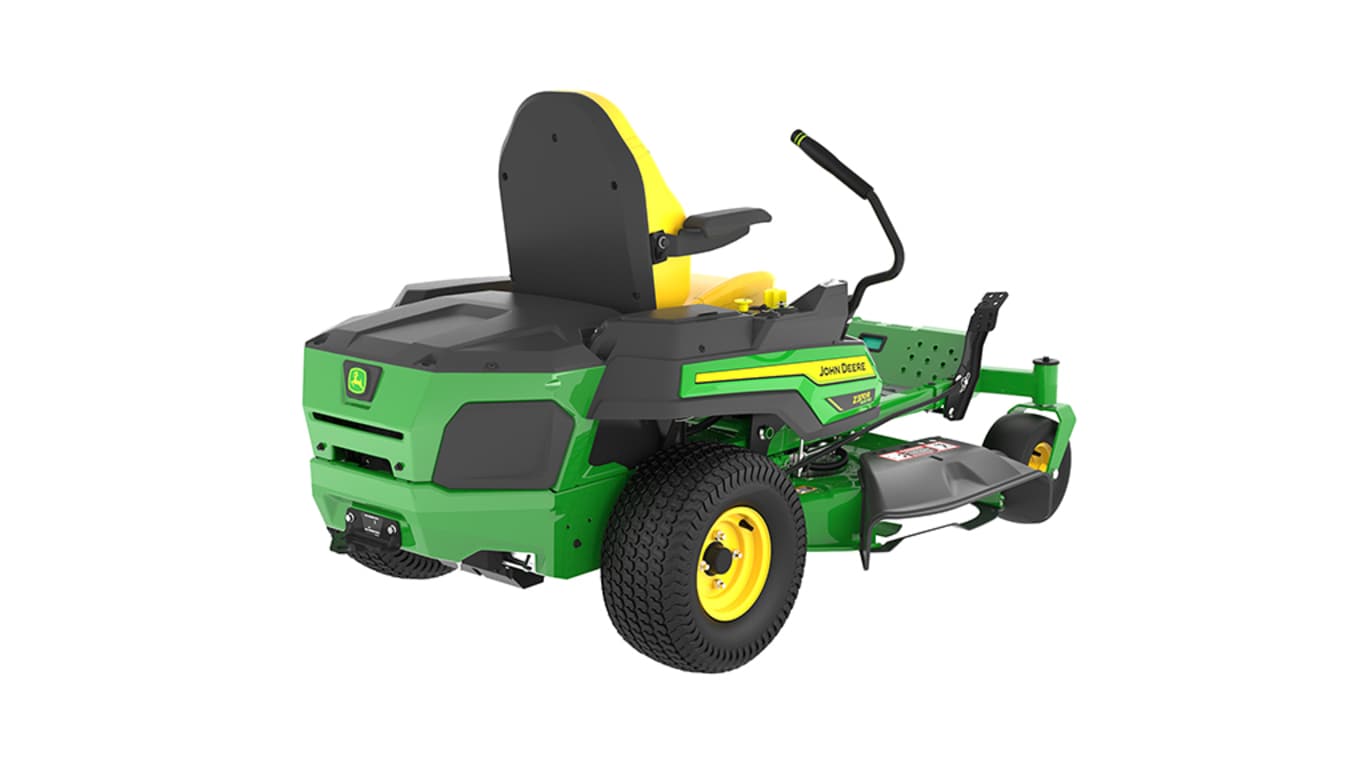

Z370R Electric ZTrak™ Mower
The Z370R Electric ZTrak Mower delivers the productivity and cut quality of a gas-powered Z300 ZTrak Mower. Many proven components, including the frame and Accel Deep™ Mower Decks, are shared with the gas-powered models.
Mower decks are 12.3 to 12.6 cm (4.83 to 4.97 in.) deep with a flat top and large discharge opening.
Cut and suspended material can exit the mower deck without getting recut:
Stamped-steel construction eliminates sharp edges and corners:
Adjustable mower wheels, positioned just above ground level give a more even cut and reduce scalping.
Optional MulchControl™ enables you to mulch frequently:
Optional 230 L (6.5 bu) rear bagger with a 42-in. (107-cm) mower deck for collecting grass clippings and leaves.
Standard 3.56 maximum (3.20 nominal) kilowatt-hour (kWh) battery has up to 40 percent more capacity than competitor’s batteries.
A Z370R with a 42-in. (107 cm) mower deck can confidently mow 8000 m2 (0.8 hectare) on a charge. A Z370R with a 48-in. (122-cm) mower deck can confidently mow 7200 m2 (0.72 hectare) on a charge.
The efficient Accel Deep Mower Decks with optimised blades extends runtime:
Go home mode gets you back:
The electric transaxle has the same 11.3-km/h (7 mph) maximum forward travel speed as the transaxle used on gas-powered Z300 ZTrak Mowers.
The wider 48-in. (122-cm) mower deck is more productive and extends further leftward which improves trimming.

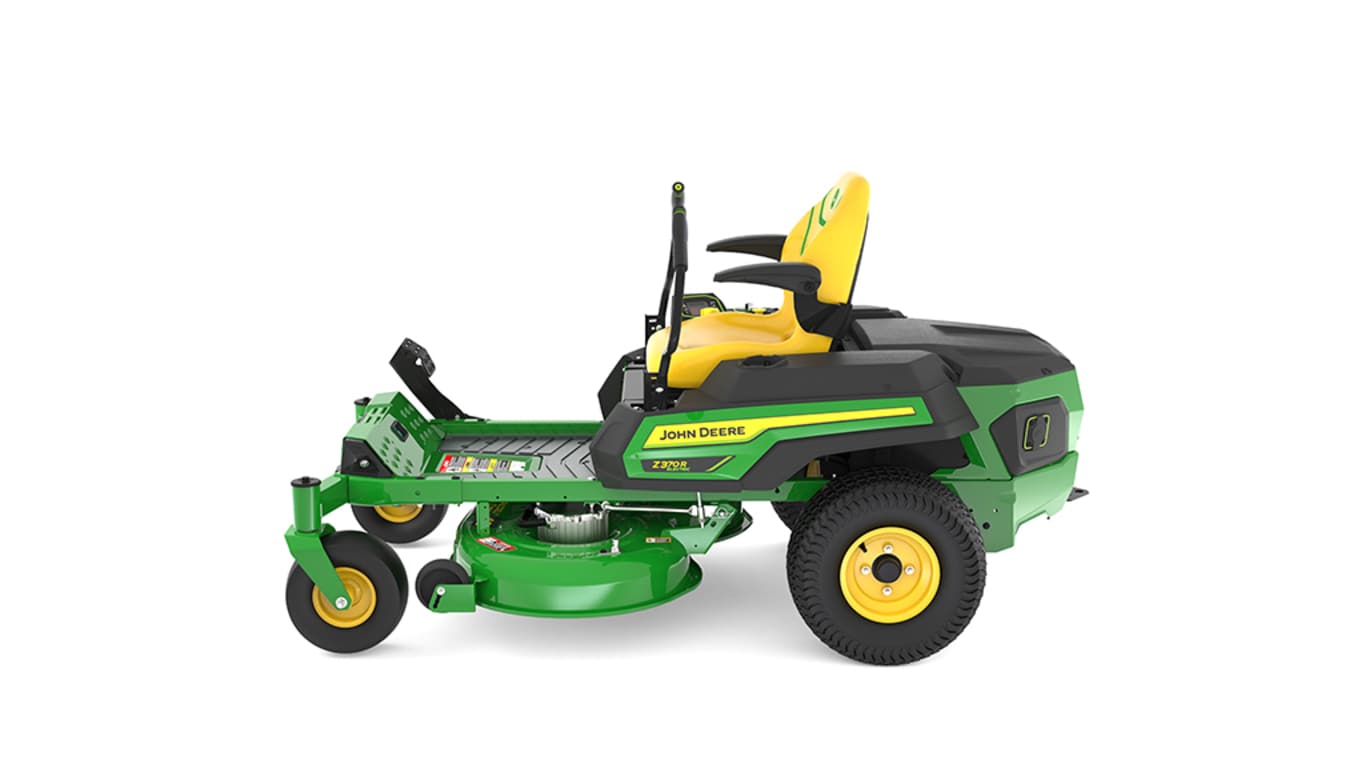

Z370R Electric ZTrak™ Mower
Customer-provided extension cord used to charge mower
The Z370R Electric ZTrak Mower frees you from the hassles of gasoline.
Start your weekend with the scent of fresh cut grass instead of a trip to the gas station
No spilling, transporting, smelling, or storing gasoline opening ZTrak ownership to new customers & new environments.
Enjoy minimum maintenance with the electric Z370R.
Smart charger is built into the mower
Washing a Z370R with a water hose
The Z370R Electric ZTrak™ is designed to withstand dust and water so you can confidently weather the conditions, wash the mower with a water hose, and even store the mower outdoors. The same weatherisation technology used on John Deere’s agriculture and construction products is found on the Z370R for dependable, trouble-free performance.
The battery is sealed to protect it from the elements:
Rear cover
Sealed battery, on-board charger, and electronics with rear cover removed
Sealed mower deck motor
Mower deck motor connectors
The mower deck motors are also sealed to keep dust and water from entering. High-quality electrical connectors are also used throughout the mower.
All John Deere mowers are painted with a dual-stage E-coat process using powder-paint coatings to provide protection from fading and corrosion.
Z370R Electric ZTrak™ Mower
Z370R Electric ZTrak™ Mower
The Z370R Electric ZTrak Mower is built tough to provide many years of trouble-free service. Several proven components, including the frame and the Accel Deep™ Mower Decks, are shared with the gas-powered Z300 ZTrak models.
Z370R Electric ZTrak Mower
The Z370R Electric ZTrak Mower frame is constructed of heavy-duty formed and welded steel for strength, reliability, and long life:
42-in. (107-cm) Accel Deep Mower Deck
48-in. (122-cm) Accel Deep Mower Deck
The Accel Deep Mower Decks are forged from heavy-gauge steel:
To withstand impacts both decks feature:
The 48-in. (122-cm) Accel Deep Mower Deck includes a 16 mm (5/8 in.) diameter solid-steel rod side bumper that provides extra protection.
Z370R Electric ZTrak Transaxle
The electric transaxle is maintenance free and reliable:
Z370R ZTrak™ Mower
Look forward to the weekend and mowing with your Z370R Electric ZTrak Mower. The mower’s seat, operator station, styling package, ergonomic controls, even the mower deck are designed to give a clean, quiet, and a smooth riding experience.
51 cm (20 in.) custom-tailored seat
Z370R operator platform
Optional boarding step
Covered storage compartment charging a cell phone
Z370R lighting pattern
Z370R Electric ZTrak™ Mower
Controls and display panel
The Z370R Electric ZTrak is designed to be intuitive to use, with controls at your fingertips.
Removing key pin from power button
Display panel
Status display
Display panel
Status display
Z370R Electric ZTrak mowing
Mode and PTO switch
The electric transaxle of the Z370R Electric ZTrak is tuned to be smooth, responsive, and operate like a gas-powered ZTrak Mower.
Three operating modes enable you to tailor the performance to your preferences and yard conditions:
Operating mode can be changed using the mode switch
*On the Z370R Electric ZTrak Mower, material collection is only available with the 42-in. (107-cm) mower deck.
Motion-control levers in park position
Motion-control levers in operating position
The integrated park brake is automatically applied when motion control levers are stowed outward and disengaged when levers are placed into operating position.
Cut-height adjustment knob
Foot pedal lift and cut-height adjustment knob
The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.
A Z300R Electric ZTrak™ Mower has several features to simplify maintenance.
Deep flat-top mower deck
Example quick-response (QR) code label
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.
Upper portion of owner support web page
Lower portion of owner support web page
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
Service interval chart
The service interval decal includes recommended service points, intervals, and part numbers.
Push-mode switch
If you need to push or tow the mower you can activate the push-mode switch which allows the drive wheels to roll freely.
Front and rear tie-down locations are provided for convenience and safety when trailering the mower.
Z370R Electric ZTrak™ Mower
The Z370R Electric ZTrak is covered by a 3-year or 200-hour, whichever comes first, bumper-to-bumper warranty. The battery has even more coverage, with a 5-year or 200-hour coverage period.
All repairs are serviced and administrated by your John Deere dealer, there is no need to file claims with component suppliers.
Z370R with spreader
Z370R with thatcher
The Z370R Electric ZTrak provides the same versatile attachments as gasoline-powered Z300 ZTrak Mowers.
*On the Z370R Electric ZTrak Mower, bagger is only available with the 42-in. (107-cm) mower deck.
*Actual mowing area per charge will vary based on conditions and attachment usage.
**Term limited to 5 years or 200 hours used, whichever comes first, and varies by model.
