John Deere PowerTech™ Plus 9.0-L diesel engine delivers low total fluid consumption and high reliability.

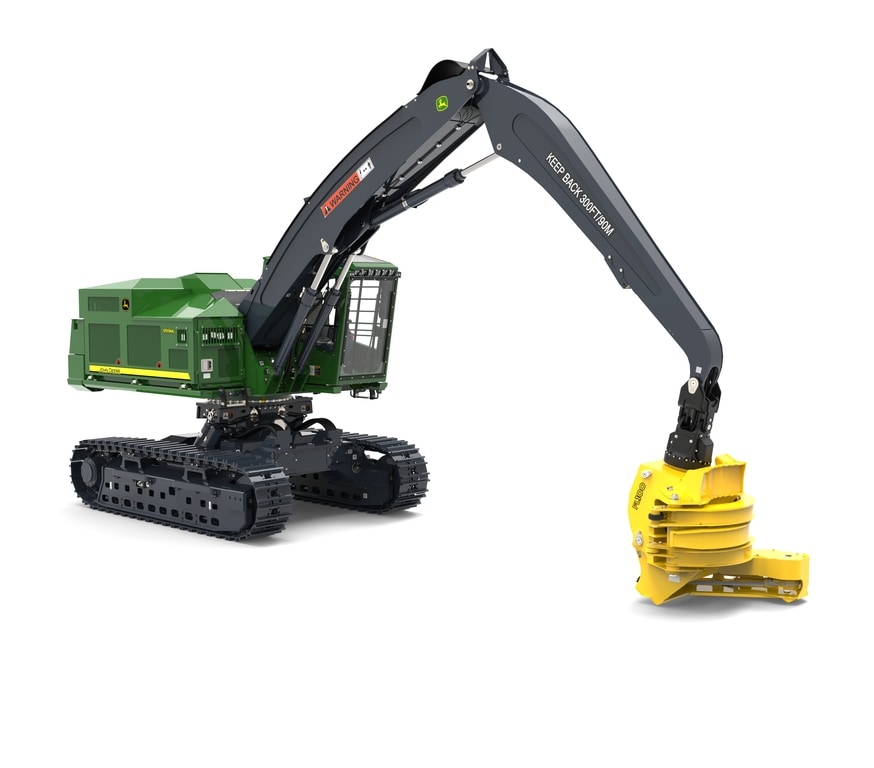

959ML allows for a directional felling head or a grapple and live-heel boom for shovel-logging applications.
The 959ML Shovel Logger can easily grab all logs within reach when working either uphill or downhill, minimizing overall ground disturbance.
New FL100 Directional Felling Head delivers outstanding grapple capability, arm durability, and rotate/tilt power.
Designed to tackle steep slopes and other challenging terrain, the 959ML features industry-leading machine-leveling technology that enables exceptional stability.
Spacious climate-controlled cab features expansive jobsite visibility, ergonomic controls, and optional fully adjustable suspension seat.
Optional state-of-the-art slope-monitoring system measures the actual ground-slope angle of the machine and displays the value in real-time on the in-cab screen.
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech Plus 6090PSS|
|Engine Output, kW||246|
|Engine Torque, Nm||1392|
|Carrier Rollers - Each Side||2|
|Track Rollers - Each Side||10|
|Track Shoe Width, mm||610|
|Track Shoe Width - Option, mm||711|
|Transport Height, mm||4030|
|Overall Width, mm||3330|
|Overall Track Length, mm||4900|
|Track Length On Ground, mm||3810|
|Tailswing Radius, mm||3180|
|Ground Clearance, mm||770|
|Width Over Tracks, mm||3330|
|Track gauge, mm||2720|
|Horizontal Reach, m||11|
|Fuel Tank, ltr||1080|
|Ground Bearing Pressure, kPa||75,5|
|Slew Torque, kNm||110,17|
|Travel Speed, kph||3,6|
|Lift capacity at max reach, kg||4360|
|Pump Type||Variable Axial Piston|
|Pump Flow, lt/min||532|
|Operating Weight, kg||38250|
Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice. Specifications are from the standard configuration.
