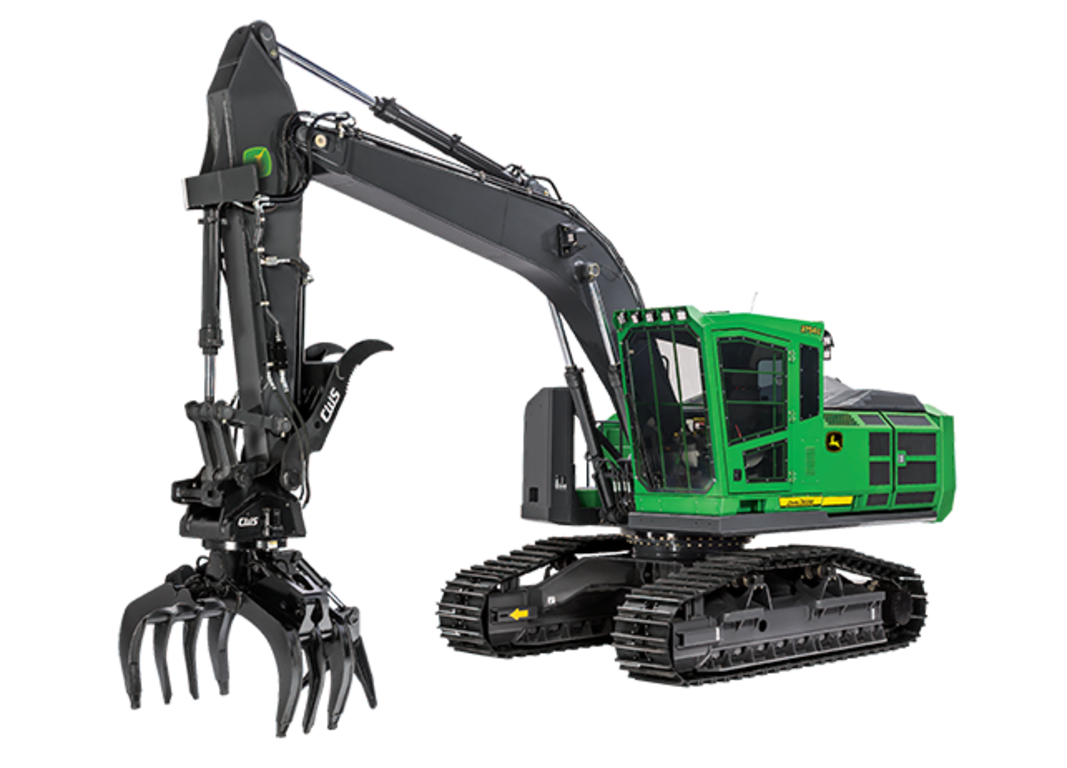

3754G | Swing Machine | John Deere AU

Durability

Undercarriage and mainframe are designed to deliver up to 67-percent longer life. More robust boom-foot base with larger pins strengthens the boom connection. Bushings have been added to the boom tower and boom tip to improve joint integrity and simplify repair.

Cab Comfort

Spacious cab boasts an additional three inches of legroom.

Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with less movement or effort.

Productivity

Five high-intensity halogen lights are standard for when you need to extend your workday beyond daylight. Optional 14-light LED package plus service and access lights provide outstanding all-around illumination.

Three productivity models allow you to adjust the machine to the application.

High productivity delivers more power and faster hydraulic response.
Power delivers a balance of power, speed, and fuel economy for normal operation.
Economy limits top speed and helps save fuel.

Serviceability

Larger service bays make it easier to access components, helping ensure daily checks and preventative maintenance get done effortlessly and on schedule.

With the LED light option, illumination in all service compartments means you won't have to fumble around for a flashlight before dawn or after dark.


DRIVELINE
Engine Manufacturer	John Deere
Engine Model	PowerTech PSS 9.0L
Displacement, ltr	9
Engine Output, kW	202
Engine Output - Net, kW	202
Carrier Rollers - Each Side	2
Track Rollers - Each Side	8
Track Shoe Width, mm	700
DIMENSIONS
Overall Length, mm	11150
Transport Height, mm	3810
Overall Width, mm	3630
Overall Track Length, mm	4950
Track Length On Ground, mm	4040
Tailswing Radius, mm	3610
Ground Clearance, mm	740
Width Over Tracks, mm	3630
Track gauge, mm	2920
Dig Depth SAE, mm	7140
Horizontal Reach, m	11,05
Dump Height, mm	7620
CAPACITIES
Fuel Tank, ltr	1080
Hydraulic Tank, ltr	195
PERFORMANCE
Ground Bearing Pressure, kPa	67,6
Slew Torque, kNm	120
Travel Speed, kph	4,5
Lift capacity at max reach, kg	8740
Pump Type	Variable Axial Piston
Pump Flow, lt/min	304
Relief Pressure, kPa	34300
Boost Pressure, kPa	38000
WEIGHTS
Operating Weight, kg	43143
