The TruSet Tillage system is available on the following implement:

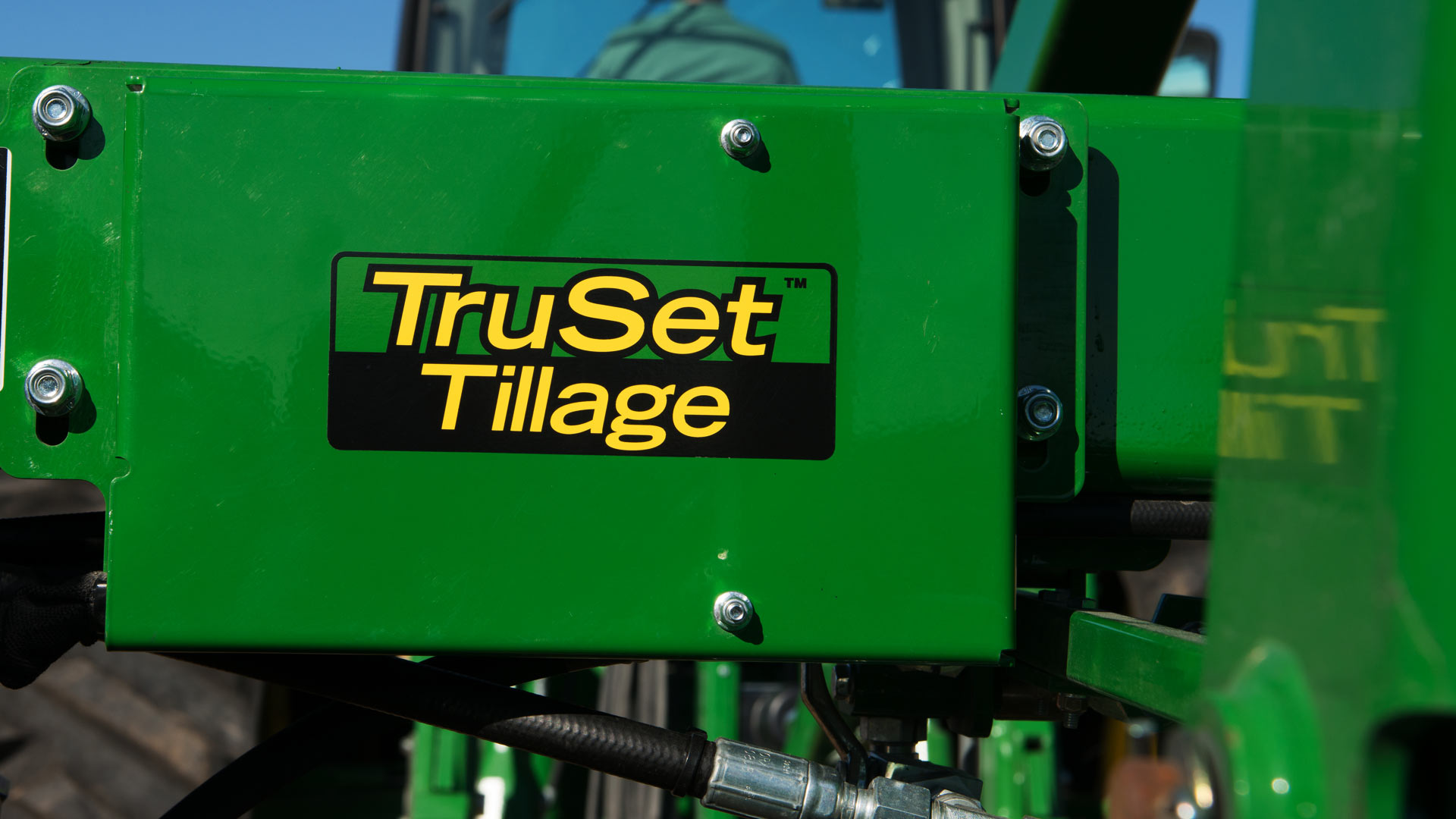

TruSet™ Tillage Technology
Fully integrated TruSet™ Tillage technology helps you increase your productivity in short tillage windows by making on-the-go depth and down-pressure adjustments from the cab – in only six seconds. Cover more acres in a day because you spend more time tilling and less time manually adjusting your implement for changing conditions from one field to the next. Do a better quality tillage job because it’s easy to fine tune the implement with approximately 2.5 mm adjustments all from the cab with the touch of a button. And, the TruSet system gives you the ability to execute prescriptions and document the tillage operation. Run variable-depth tillage prescriptions to incorporate residue at different levels across the field or change the depth of tillage for different conditions such as lighter soils or areas of known compaction. Document your tillage passes to see if different tillage strategies affected crop emergence or yield.
TruSet is compatible with John Deere and competitive tractors. Depending on the tractor, a compatibility kit may be needed in addition to the TruSet Tillage system. The following chart identifies the components needed to operate TruSet on a 2430 Chisel Plough with a GreenStar-ready tractor.
| TruSet Product | John Deere 30 Series and Newer Tractors | John Deere 20 Series Tractors ( large frame or IVT™ system) | John Deere 20 Series Tractors (small frame or non-IVT) | John Deere 10 Series and older Tractors | Competitive tractors |
|---|---|---|---|---|---|
|
TruSet Tillage system |
Yes |
Yes |
Yes |
Yes |
Yes |
|
TruSet |
No |
No |
Yes |
Yes |
Yes |
Both the TruSet Tillage system and the compatibility kit will be available as a field-installed option that can be ordered with the chisel plough or through aftermarket parts.
TruSet™ Tillage compatibility requirements
TruSet Tillage requires a GreenStar-ready tractor with a supported display and receiver. The TruSet Tillage system must have a connection to the tractor ISO connection. Additional TruSet Tillage information:
| Display Compatibility | TruSet Feature | In-cab Control | Coverage Map | Documentation | Prescription |
|---|---|---|---|---|---|
|
SDUA |
GS3 |
Yes |
No |
No |
No |
|
2630 |
GS3 |
Yes |
Yes |
Yes |
Yes |
|
4100 |
Gen 4 |
Yes |
Yes |
No |
No |
|
4600 |
Gen 4 |
Yes |
Yes |
Not yet |
Not yet |
TruSet can be run on John Deere and competitive tractors. For older John Deere and competitive tractors, a compatibility kit is needed in addition to the TruSet Tillage system. The compatibility kit includes an add-on selective control valve (SCV) and installation components.
| Tractor Compatibility | Multi-depth Operation | Additional Display Required |
|---|---|---|
|
9R Interim Tier 4 and Final Tier 4 (IT4 and FT4) |
TruSet ready |
No |
|
8R (IT4 and FT4) |
TruSet ready |
No |
|
7R (IT4 and FT4) |
TruSet ready |
No |
|
9x30, 8x30 |
TruSet ready |
Yes |
|
9x20, 9x00 * |
Compatibility kit |
Yes |
|
8x20, 8x10, 8x00 * |
Compatibility kit |
Yes |
|
7x20, 7x30 (IVT™ transmission and large frame only) |
TruSet ready |
Yes |
|
7x20, 7x30 (small frame or non IVT) |
Compatibility kit |
Yes |
|
6R (FT4)* |
TruSet ready |
No |
|
6R (IT4) |
Compatibility kit |
No |
|
Competitive tractors (GreenStar ready) |
Compatibility kit |
Yes |
|
Unlisted John Deere tractors (GreenStar ready) |
Compatibility kit |
Yes |
*Older models may require software update (and/or hardware).
