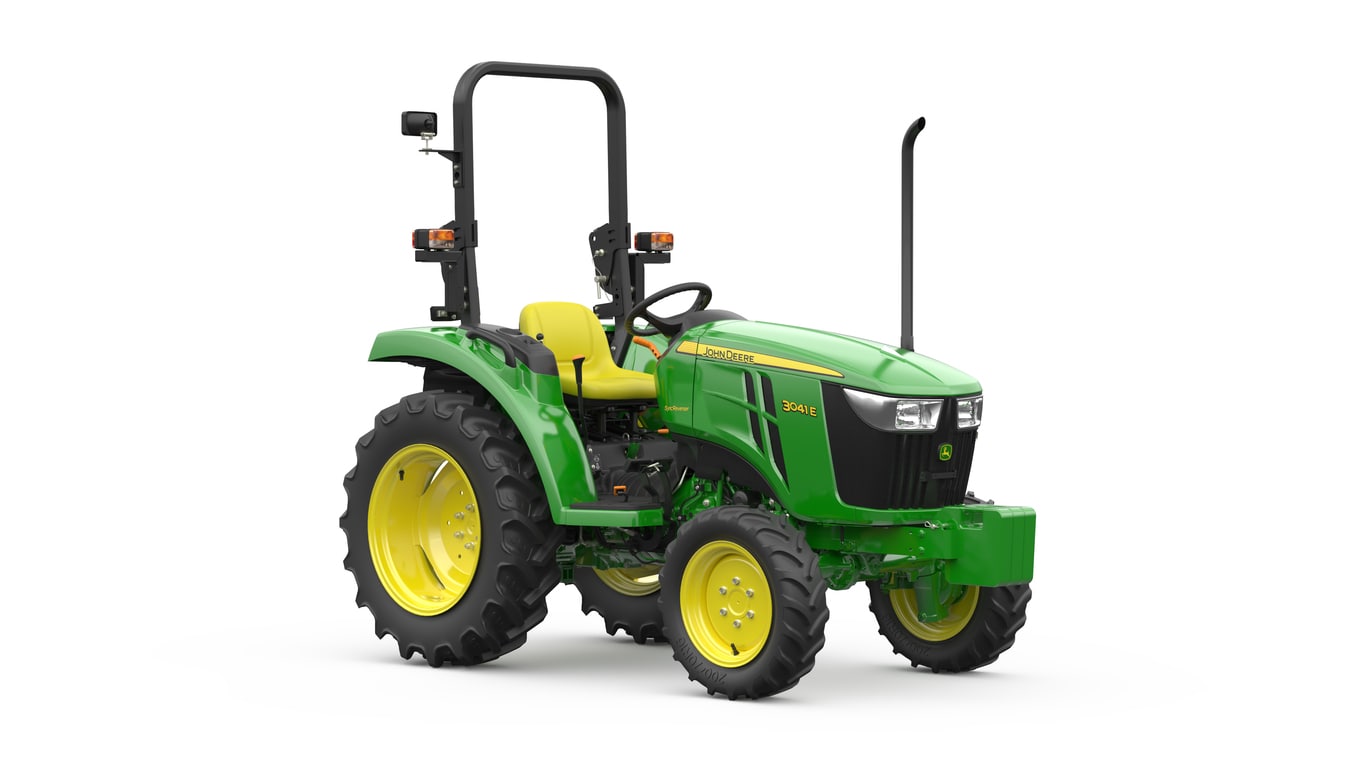

3041ECompact Utility Tractor
- 1.4-litre turbocharged engine
- SyncReverser™ 8F / 8R transmission with mechanical reverser
- Width of 1465 mm and Turning Radius of 2.6 m
- Platform prepared to receive a front loader
Performance and versatility for everyday use in the field.
The 3041E tractor delivers an efficient and versatile solution for producers seeking low operating costs and good performance. It combines power, torque, and balanced fuel consumption, ensuring greater productivity in daily operations. Its compact dimensions and reduced turning radius allow for agility in tight areas, while compatibility with a front loader expands its use in the field, making the 3041E a complete machine for everyday farm operations.
Features
Expand AllCollapse All
Engine on 3E Series
Electric fuel shutoff
Overflow reservoir container
Radiator with perforated protection screen
Dry-type air filter
Dry-type air filter with clog indicator
Water separator unit
Clutch pedal on left-hand side to engage and disengage the clutch plate
240-mm (9.4-in.) dry clutch
Speed gear lever
Range shift lever
Forward, neutral, and reverse lever (FNR synchro lever)
540 rpm and 540E PTO speeds
PTO engagement and disengagement lever
Category 1 3-point hitch
Category 1 3-point hitch
Hydrostatic power steering
Engine features and benefits
A lightweight compact utility tractor
Engine on 3E Series
The compact engine enables a real compact and lightweight utility engine. The superiorly designed and manufactured, lightweight, naturally aspirated diesel engines provide excellent torque, fuel efficiency, and durability.
- 3041E – 1.496 L (91.3 cu in.)
Performance made to measure
The engine ensures high productivity with a high backup torque and is operable at a rated rpm of 2800. A compression ratio of 19:1 ensures optimum burning of fuel to provide excellent power to operate the machine.
Car-like on/off key provision
Electric fuel shutoff
Electric fuel shutoff is provided by a solenoid on the injection pump that permits using a key instead of a push-pull cable to shut off the engine. Electric fuel shutoff does not allow bypass starting. If an attempt is made to bypass start the tractor, through the use of electronics, the electric fuel shutoff will not allow the engine to start.
Coolant overflow reservoir tank
Overflow reservoir container
The overflow reservoir automatically maintains the level of coolant in the radiator, thus ensuring optimum engine temperature, and longer engine life.
The transparent container makes it easy to spot the coolant level and has a capacity of 7 L (1.85 gal.).
The engine cooling system is filled to provide year-round protection against corrosion, cylinder liner pitting, and winter freeze protection.
John Deere COOL-GARD II Premix coolant is available in a concentration of ethylene glycol (80:20).
Radiator with perforated protection screen
Radiator with perforated protection screen
The tractor’s cooling system includes a cooling fan and a radiator with a quick attachable perforated protection screen.
The radiator screen ensures less entry of dust directly inside radiator, thereby increasing the life of the radiator and avoiding the frequent, tedious task of cleaning the radiator.
Dry-type air filter with dual element
Dry-type air filter
Dry-type air filter with clog indicator
All tractor models are provided with the dry-type air filter. The dual filter element ensures that air is 99.9 percent clean before entering the engine, thus enhancing the engine life.
It is easy to service and maintain.
The air restriction sensor alerts available at the dashboard gives an indication to the operator when the filter chocked by dust by an air restriction indicator.
The filter is easily located when opening the hood for quick service, thereby ensuring less downtime due to service.
Water separator
Water separator unit
The water separator unit separates water from the fuel, protecting the fuel injection pump from adulterated fuel.
This, in turn ensures longer life of the complete fuel injection system.
Single clutch ensures proper power from engine to drivetrain
Clutch pedal on left-hand side to engage and disengage the clutch plate
The 3E Series Tractors comes with a single dry-traction clutch. The clutch is 240 mm (9.4 in.) in diameter and mechanically actuated and integrated with the spring damper to control torsional acceleration. The clutch is well integrated to transmit the power from the engine to the transmission. Comparatively, larger-diameter clutch in the segment results in less wear and tear, which means more life of clutch for the intended application.
The clutch pedal is found on the left-hand side within easy reach of the operator’s foot for quick engagement and disengagement of the clutch plate.
Single clutch
240-mm (9.4-in.) dry clutch
A single clutch with a bigger diameter of 240 mm (9.4 in.) ensures proper power transmission from engine to drivetrain. The higher contact surface area due to the larger diameter means less wear and tear during engagement and disengagement.
Drivetrain
The drivetrain on the 3041E Tractor is 8F/8R collar-shift synchromesh transmission. Synchromesh transmissions are ideal for smooth gear shifting for forward and reverse movement required with the provision of the synchronisers/collar reverser mechanism.
Eight forward and eight reverse (8F/8R) speeds with synchromesh shuttle shifting as standard
The drivetrain is designed to have 8F/8R speed as standard. The forward and reverse is synchro-shift actuated, and the speed and range gears have a collar-shift mechanism. The synchromesh transmission is designed to match the excellent power and torque characteristics with a single dry clutch. Transmission durability is enhanced with top-shaft lubrication, helical gear profile, and carbon-lined synchronisers, bringing down the overall cost of operation.
The transmission has forward and reverse synchronisers to facilitate smooth shifting. The synchroniser is single cone-type with a cone diameter of 74 mm (2.9 in.) and carbon friction material.
The shift mechanism for forward and reverse operation will actuate the neutral safety switch provided.
Speed gear lever
Range shift lever
Forward, neutral, and reverse lever (FNR synchro lever)
Standard independent 540-rpm rear power take-off (PTO) performs well in normal or heavy applications
540 rpm and 540E PTO speeds
PTO engagement and disengagement lever
The 540-rpm PTO speed is achieved while operating the engine at 2490 engine rpm, and 540E is achieved at 1925 engine rpm. The required PTO speeds are utilised for running PTO-operated attachments such as electrostatic sprayers, trailed-type sprayers, dusters, rotary tillers, etc.
An easy-to-use mechanical lever on the left-hand side engages and disengages the PTO.
When the PTO is engaged, a light on the instrument panel illuminates.
Adding to operator safety, the tractor does not start when the PTO lever is engaged due to the neutral safety switch (NSS).
The PTO shaft is protected by a PTO shield for added safety for bystanders.
The economy PTO provides 540E rpm to the PTO at 1925 engine rpm. The 540E mode is ideal for any light-load PTO application.
Operating at lower engine rpm decreases fuel costs and provides additional productivity by improving the operating experience through enhanced operator comfort from reduced noise and vibration.
3-point hitch is versatile and adaptable for rear implement work
Category 1 3-point hitch
NOTE: This arrangement of the sway chain will be for 5-12 and 8.3-24 tyre options only.
Category 1 3-point hitch
NOTE: This arrangement of the sway chain will be for 6-14 and 9.5-24 tyre options only.
Lift links can be adjusted for lateral movement. The right lift link adjusts without tools for added convenience when leveling implements.
Adjustable sway chains are available to make necessary alignments in order to adjust the implements.
An open-centre hydraulic system provides plenty of flow for running hydraulic implements. Common hydraulic oil with competition ensures a lift capacity of 910 kg (2006.2 lb).
Position control
The tractor is equipped with position control which supports the 3-point hitch for various positions. Lifting the 3-point hitch after attaching the implement with the position lever is easy and affective. Position control holds the implements and helps with raise and lower operations.
Draft control
The tractor is equipped with draft control (DC) which is helpful to overcome intermittent load during operation when the implement is in soil. The DC feature helps avoid any damages to the 3-point hitch in case of sudden load. It acts by the top link coming into compression and opening the control valve, which helps raise the implement up partially. Once load is reduced, the implement goes back into the soil at the desired set level.
A correct draft setting is desired to have satisfactory performance.
Hydrostatic power steering for performance and efficiency
Hydrostatic power steering
Hydrostatic power steering ensures smooth, steady steering, allowing the operator to focus on the task and not the steering.
Power steering provides optimum performance and efficiency in all operating conditions with minimal effort. It is especially well-suited for wet-land application.
