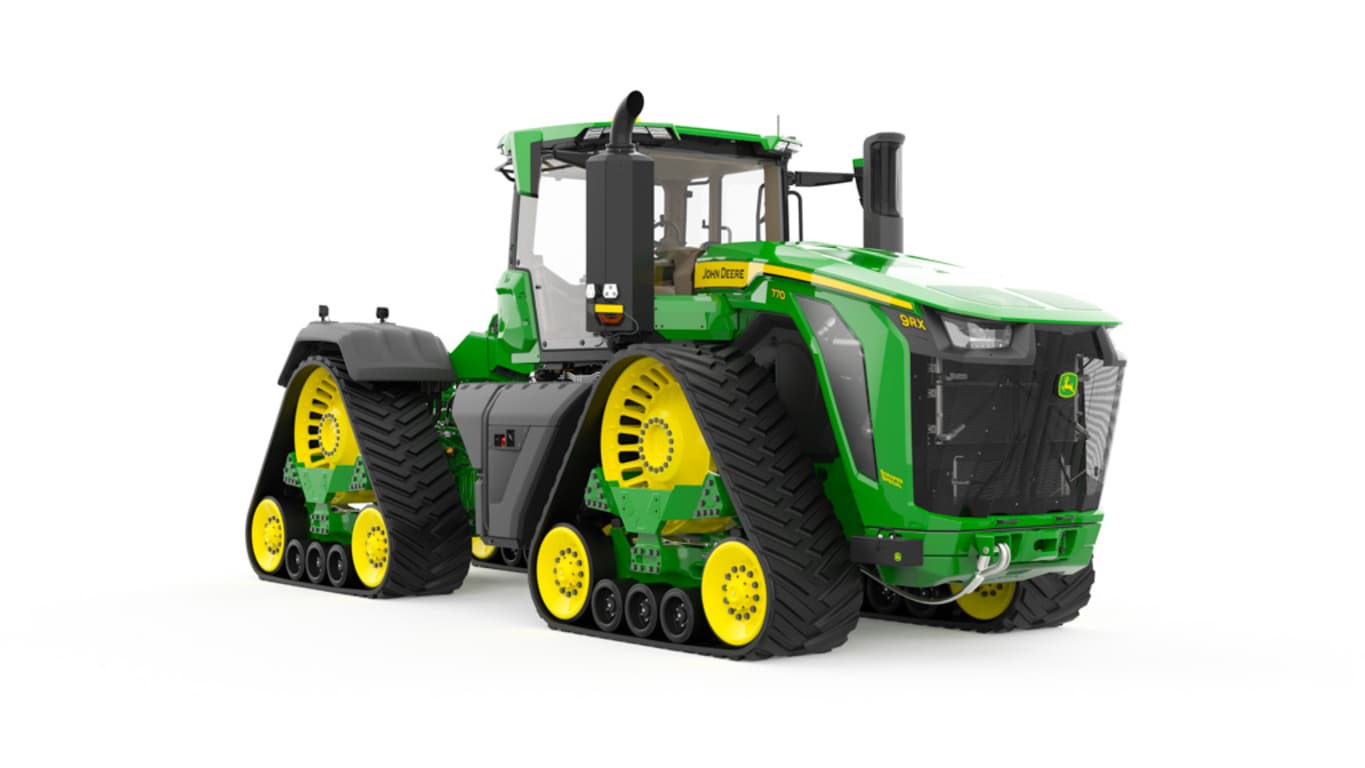

9RX 770 Scraper SpecialTractor
- Engine HP: 623 kW (847 hp) Max1 / 566 kW (770 hp) Rated2
- JD18 engine (18L)
- e21™ PowerShift transmission
- Fully integrated precision ag technology
Features
Expand All
Collapse All
9R Scraper Tractor
EPS in-cab display
Ultimate Visibility package at night
Rear window tint
Increase operator efficiency with AutoLoad™
9R Scraper Tractor
Overview
AutoLoad is exclusive to John Deere and is a major innovation in the earthmoving industry. It increases operator efficiency by allowing novice and experienced operators to be more consistent and productive while operating John Deere tractors and scrapers. With the touch of a button, operators maximize productivity and efficiency even if they have never operated tractors and scrapers.
Benefits
- Reduced labor cost
- Reduced training time to bring operators up to full productivity
- More consistent yards per cycle, per hour, per day
- Ease of operation, reduced operator fatigue
- More consistent cut profiles for a new or inexperienced operator
- More consistent fill profiles utilizing AutoLoad set point features
- Reduced requirements for support equipment such as compactors, graders, dozers
- Consistent productivity, regardless of operator experience, for the entire work day, and the entire work week
For more information on AutoLoad, reference AutoLoad in Precision Technology.
More precise loads using Earthmoving Productivity System (EPS)
EPS in-cab display
Overview
The Earthmoving Productivity System can determine the amount of volume being loaded into a scraper in real time and transfer that critical data back to personnel. Operators have more precise volume loads and decrease counting errors. This allows them to finish jobs faster, saving time and money. It features proven components that are utilized by other John Deere equipment. A 3D stereo camera mounted on the existing laser rack captures images of material getting loaded into the scraper. These images are sent through an image processing module (IPM) that determines the volume inside the scraper.
Benefits
- Measure yardage in real time to ensure a full scraper after every cut
- Benchmark operators for best asset utilization
- Transfer data directly to jobsite supervision using JDLink™ system
- Visualize what is being loaded into the scraper
- Calculate cost per cubic yardage in real time per load for each scraper system
For more information on EPS, reference Earthmoving Productivity System (EPS) in Precision Technology.
9 Series Visibility packages let you run with confidence, dawn until dusk
Ultimate Visibility package at night
Visibility is more than just lighting. It’s mirrors where you need them, shades for the blinding late-fall and early-spring sun, wipers to help keep all the glass clear, and integrated camera capability. The 9 Series Tractors let you choose the visibility package that best suits your needs – Select, Premium, or Ultimate with 360-degree light-emitting diode (LED) lighting –so you and your operators can run with all-conditions confidence.
| Select | Premium | Ultimate | |
| Lighting | 18 halogen worklights | 18 LED worklights | 24 LED worklights and eight LED convenience lights* |
| Mirrors | Mechanical | Electric and heated | Electric, heated, and telescoping |
| Sunshades | Front | Front, right-hand side, and rear | Front, right-hand side, and rear |
| Wipers | Front and rear | Front, right-hand side, and rear | Front, right-hand side, and rear |
| Cameras | Camera ready | Camera ready | Integrated digital cameras |
| Rear window tint | À la carte option | À la carte option | À la carte option |
*Convenience lights illuminate the corners of the cab for easier entry and exit.
Rear window tint
Product features are based on published information at the time of publication. Product features are subject to change without notice. Contact your local John Deere dealer for more information.
1Engine power PS (hp ISO) at max engine power speed (ECE-R120).2Rated Engine power PS (hp ISO) at rated engine rpm (ECE-R24)
