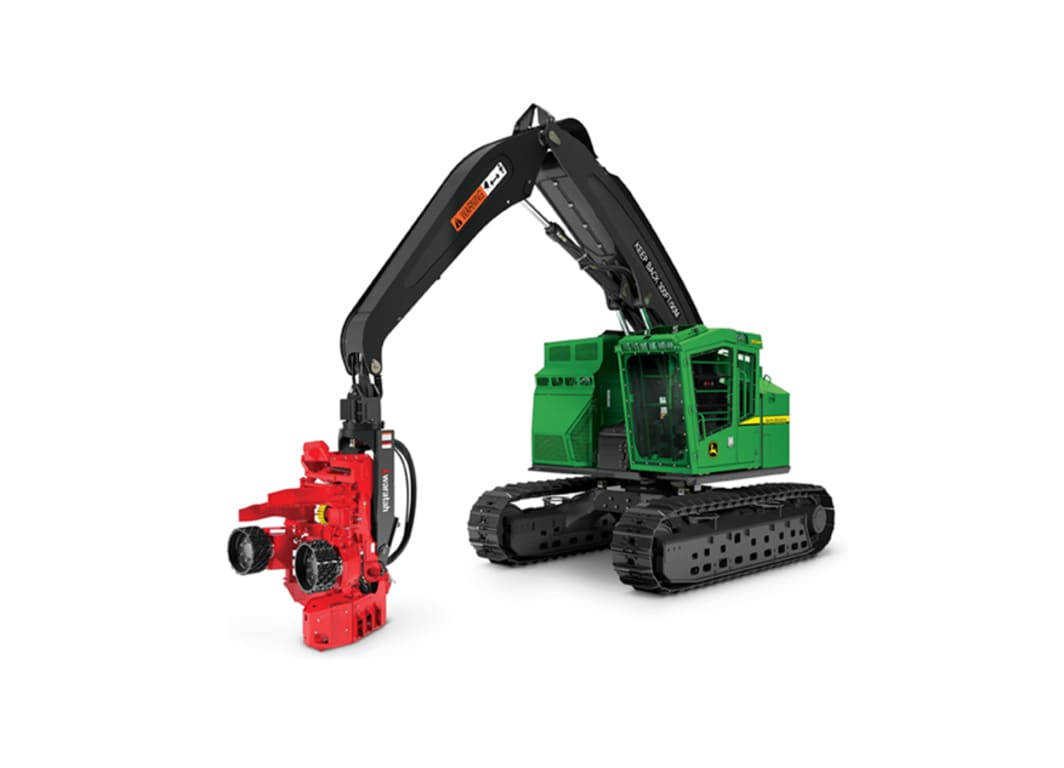

853MHTracked Harvester
- Peak Power: 224 kW (300 hp) @ 1,900 rpm
- Max. Boom Reach: 9.91 m
- Tractive Effort: 322 kN
Intelligent Boom Control
With the optional IBC, operators no longer need to control each independent boom function separately. One joystick moves the boom tip horizontally, while a second guides it vertically, and IBC automatically guides the boom and cylinders accordingly.
TimberMatic Maps and TimberManager
This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
330-Horsepower Option
John Deere adds a 330-horsepower option for the 853M Tracked Feller Buncher and 853MH Tracked Harvester, equipped with the Dedicated Travel System.
Specifications
Specifications
Expand AllCollapse All
|
|
DRIVELINE
|
|
Engine Manufacturer |
John Deere |
Engine Model |
6090H |
Displacement, ltr |
9 |
Rated Speed, rpm |
2000 |
Engine Output, kW (hp) |
213 (286) |
Engine Torque, Nm |
1270 |
Carrier Rollers - Each Side |
2 |
Track Rollers - Each Side |
9 |
Track Shoe Width, mm |
610 |
DIMENSIONS
|
|
Height Over Cab, mm |
3460 |
Width, mm |
3300 |
Overall Track Length, mm |
4900 |
Track Length On Ground, mm |
3830 |
Tailswing Radius, mm |
1940 |
Ground Clearance, mm |
756 |
Superstructure Width, mm |
3150 |
Slewing Angle, Degrees |
360 |
CAPACITIES
|
|
Fuel Tank, ltr |
870 |
Number of Alternators |
1 |
Alternator Output, Amp |
100 |
PERFORMANCE
|
|
Slew Speed, rpm |
6,7 |
Travel Speed, kph |
4.2 |
Reference Harvesting Head |
Waratah HTH622B |
Felling Diameter, mm |
750 |
Delimbing Diameter, mm |
640 |
Delimbing Feed Rate, m/sec |
5.7 |
Cutting Radius - Maximum, mm |
8840 |
Cutting Radius - Minimum, mm |
2710 |
Cutting Swath Horizontal, mm |
6130 |
System Voltage, V |
24 |
Main Pump |
Variable Displacement Axial Piston |
Pump Flow, lt/min |
494 |
WEIGHTS
|
|
Operating Weight, kg |
32260 |
Weight - With Reference Head, kg |
32260 |
Weight - Without Reference Head, kg |
30070 |
