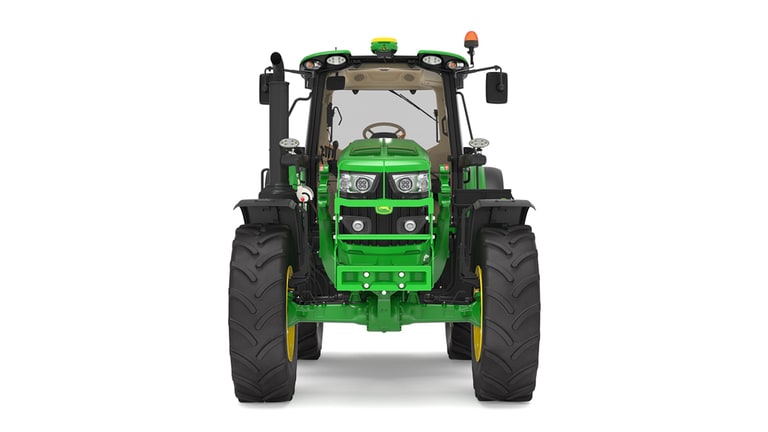

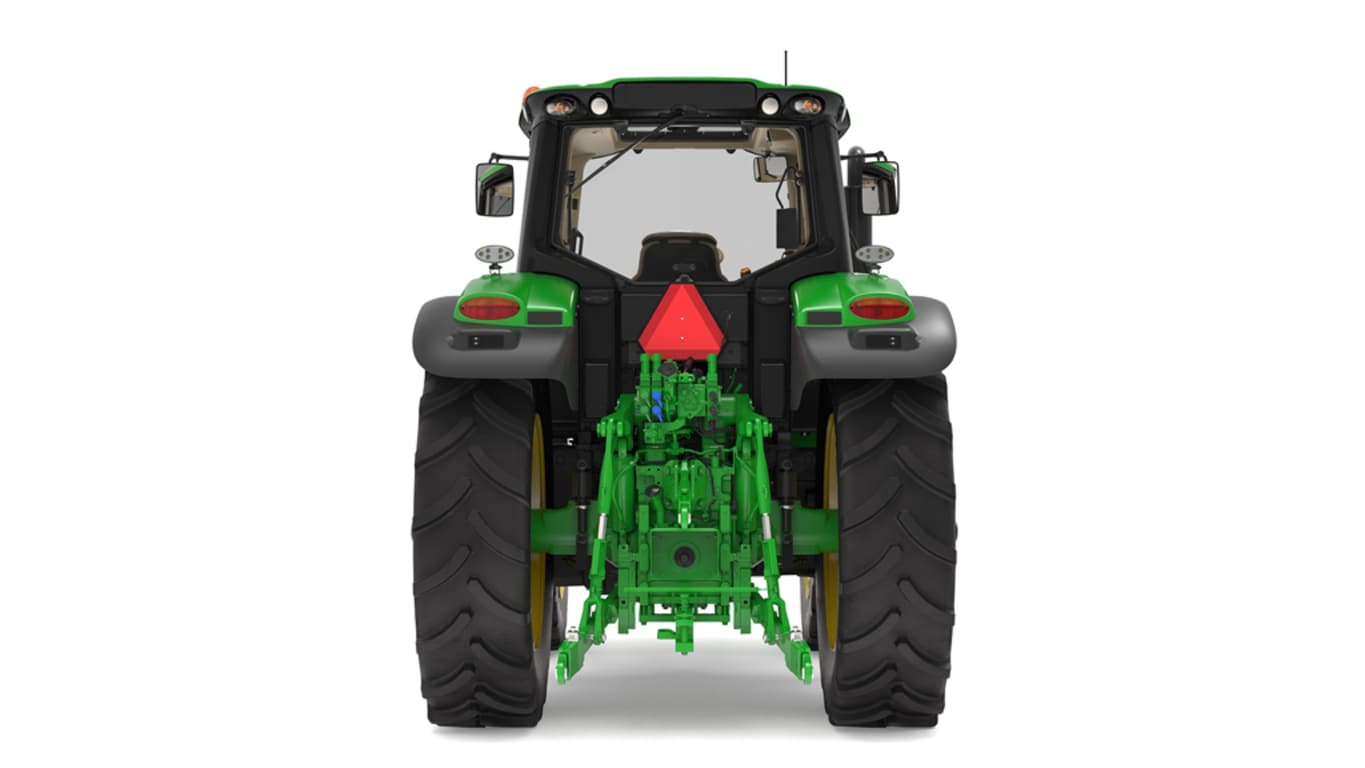

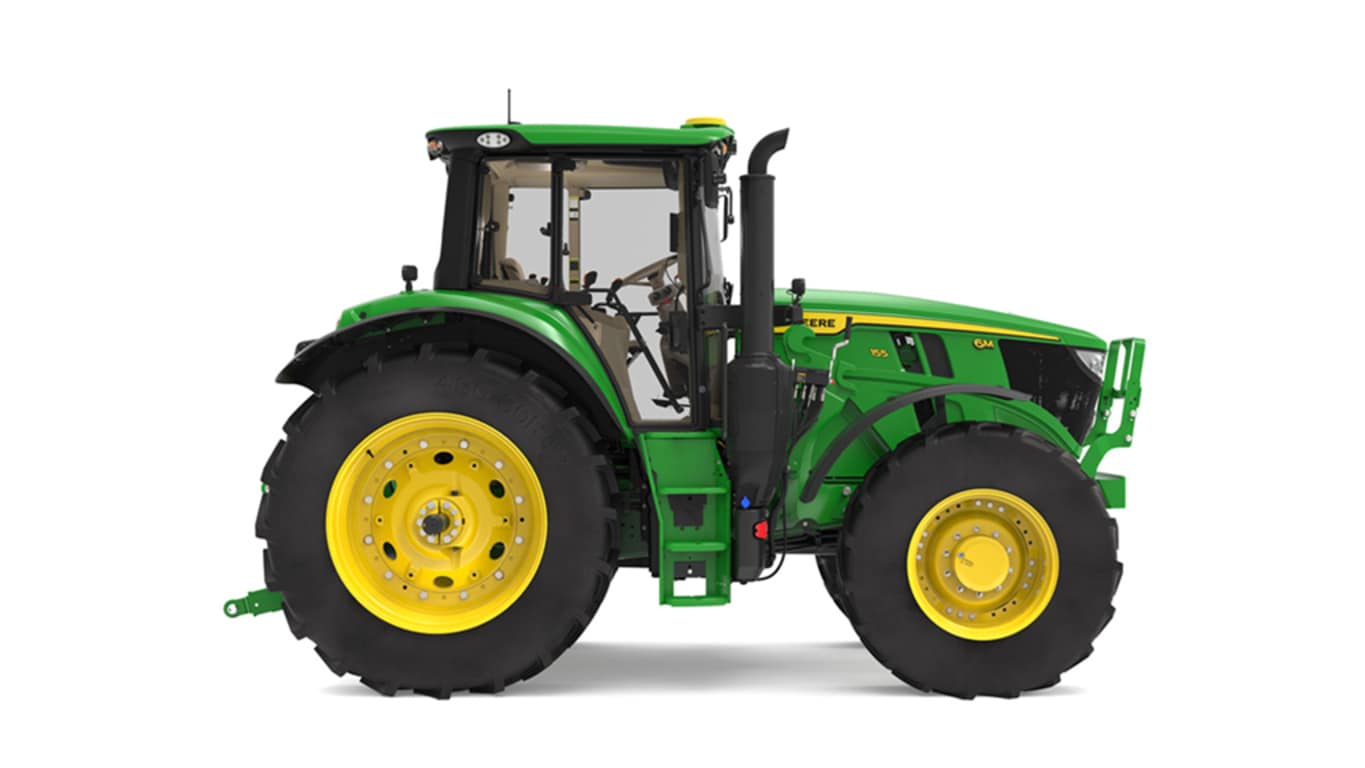

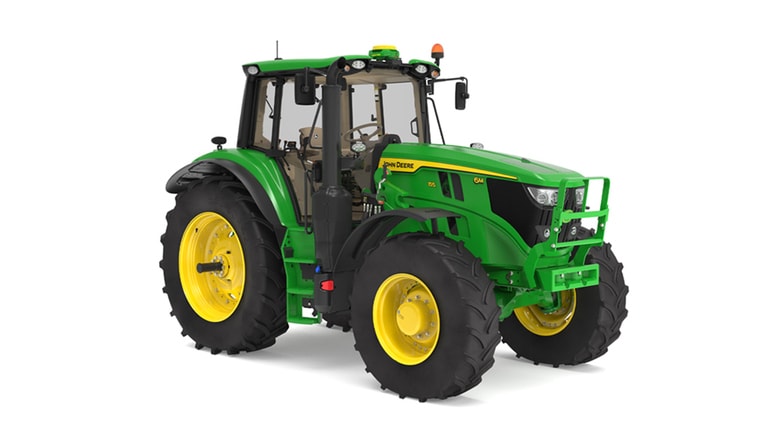

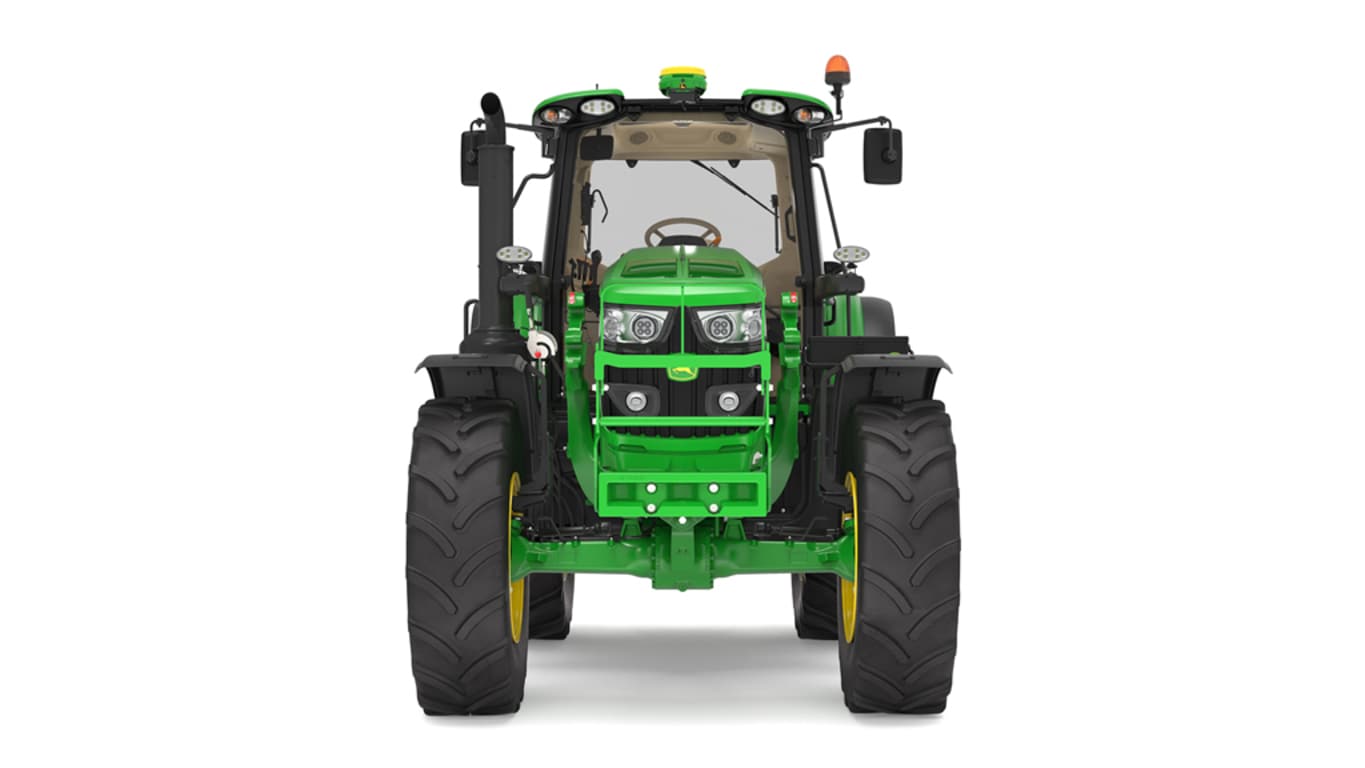

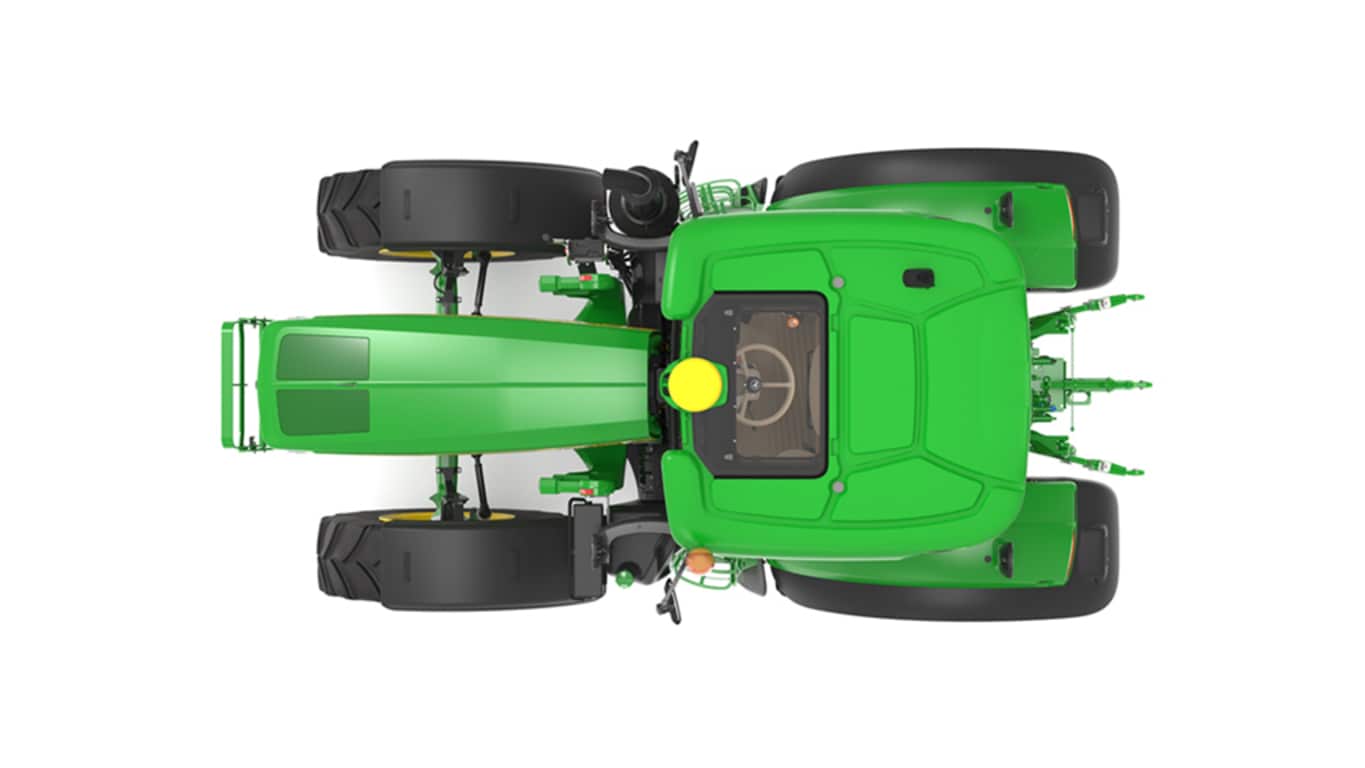

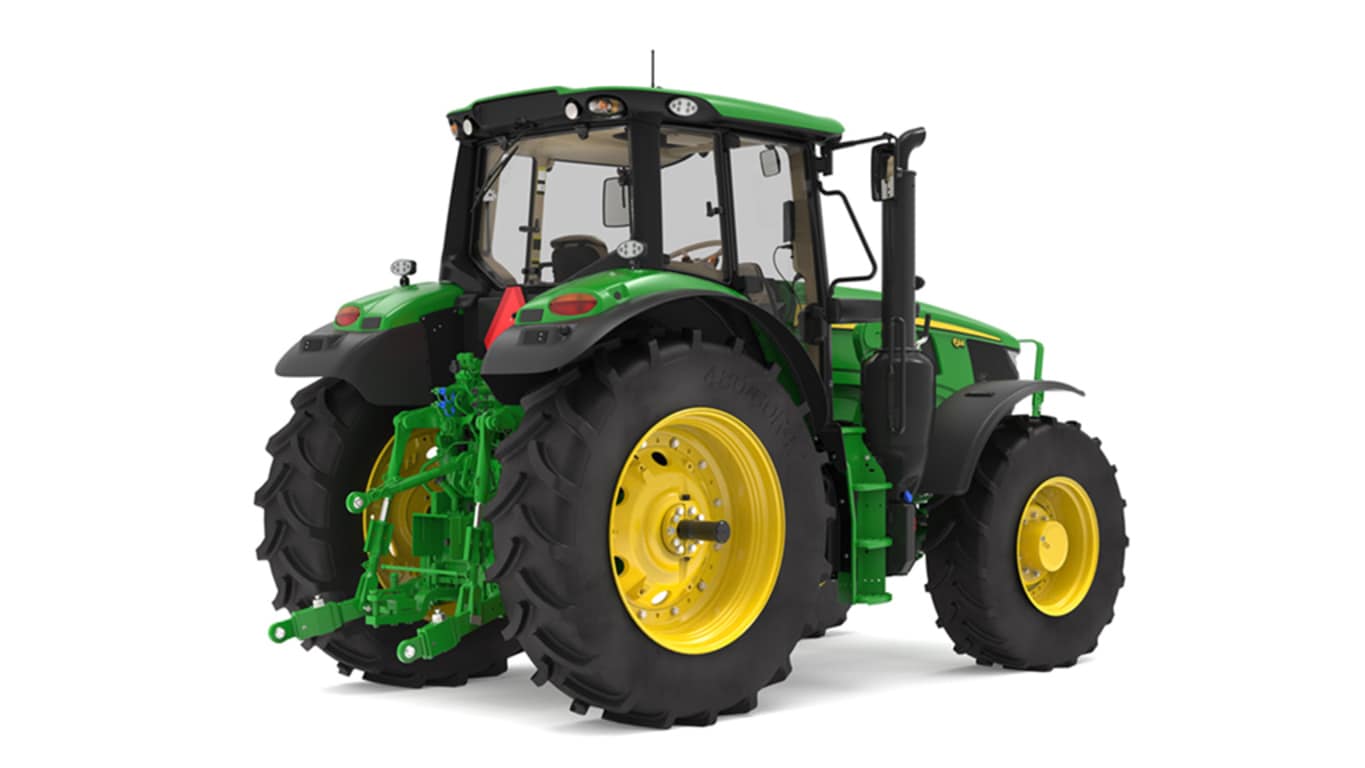

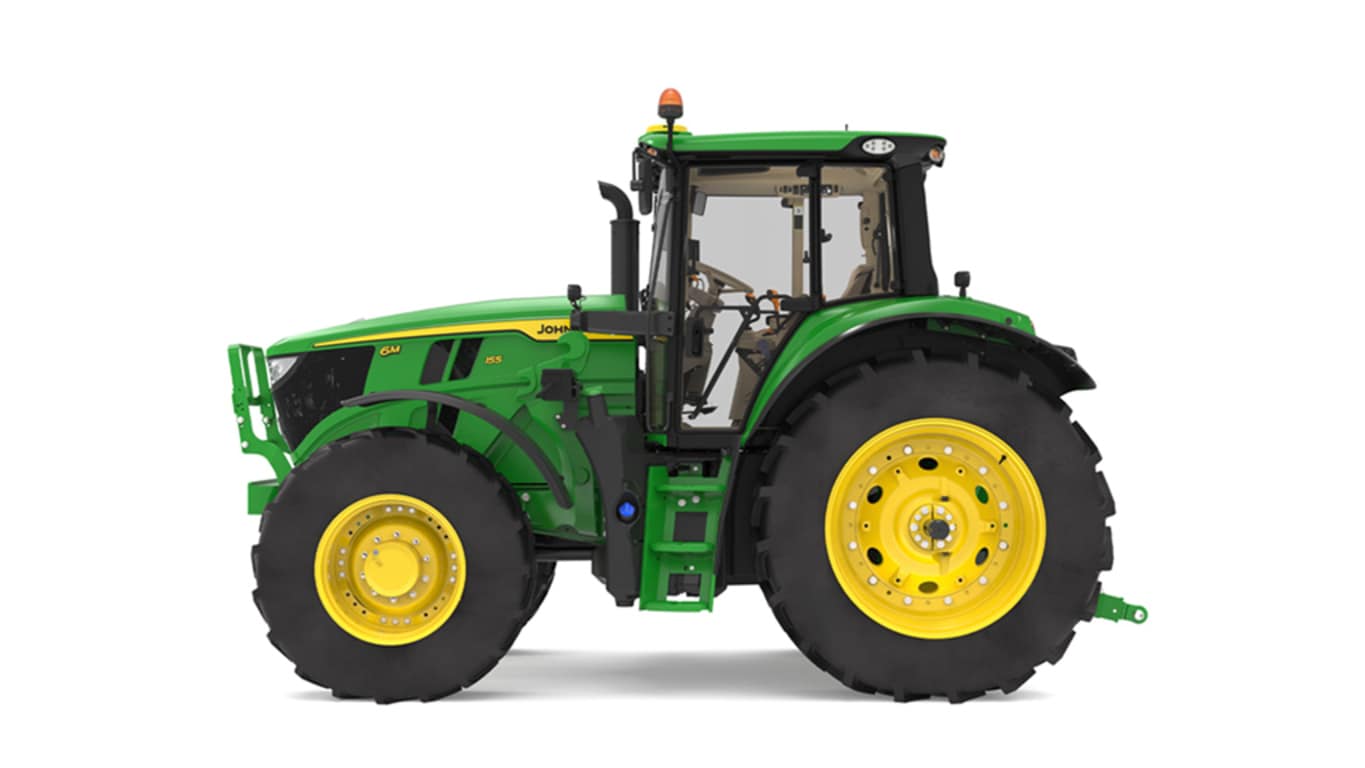

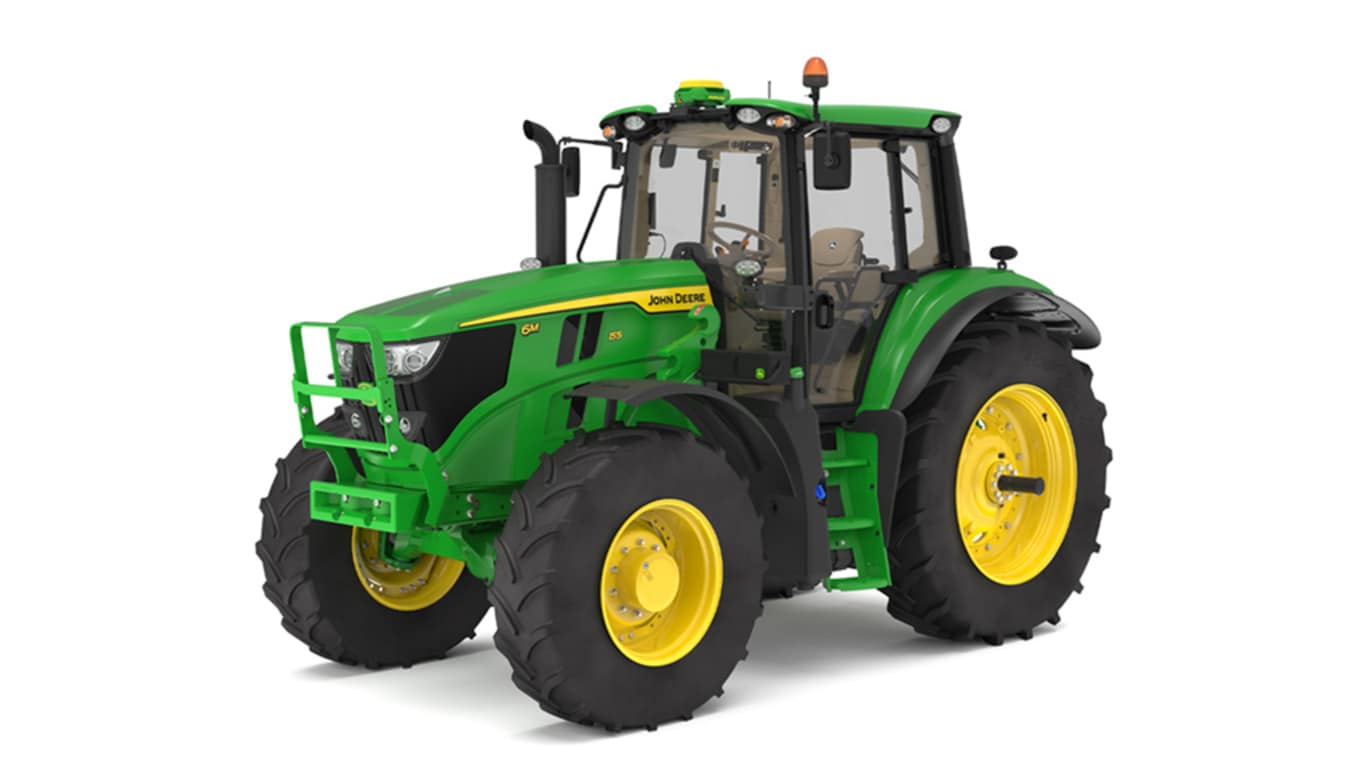

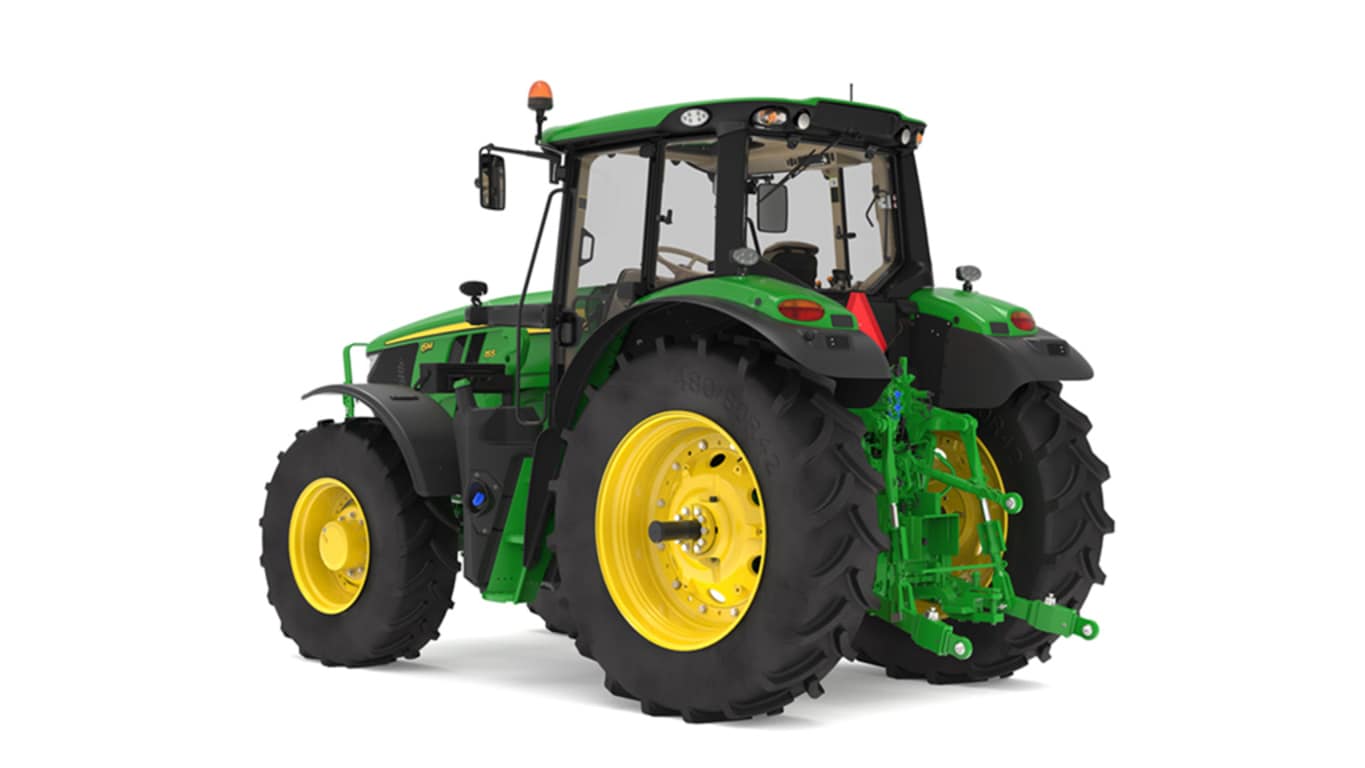

6M 155Utility Tractor
- Engine HP: 168 Max | 155 Rated
- 6.8 L engine with 6 cylinders
- Transmission Options: PQT, AQT, CQT, or IVT™
- Up to 20 HP Boost with IPM in non-stationary PTO and transport applications
Features
Expand AllCollapse All
CommandX™ Plus
Compact CommandARM™
Electronic Joystick
G5 CommandCenter™ Display with Expert-level Precision Ag Capabilities
Premium Light Package
StarFire™ 7500
Section Control™
AutoTrac™ Turn Automation
In-Field Data Sharing
Precision Ag use on G5 Display
4.5L 4-cylinder EWS
4.5L 4-cylinder PSS
6.8 l 6-cylinder PVS
6.86-cylinder PSS
Ex-Factory Reversible Fan
Ex-Factory Reversible Fan
TLS™ Plus
6M with Sport Package Plus
100% Mechanical Power with e19™
Transport Efficiency with AutoPowr™
6M Mid Frame Tractors
SOLID POWER
These 6-cylinder models deliver a solid and comfortable ride in the field and on the road, with an ideal blend of agility, power and durability that makes them robust and reliable performers in heavier fieldwork.
ALL MUSCLE
All 6M mid frame models come with our proven 6-cylinder, 6.8 l PowerTech™ PVS engine with plenty of power and torque reserves, making sure you are ready for anything.
CONVENIENT SCV CONTROL
Optionally, all 6M 1545 up to 6M 180 models come with 3 electronic SCVs, controlled with ergonomic convenience from the compact CommandARM™ or the Right Hand Console.
Not quite enough? You can take that up to 4 SCVs + 3 Mid SCVs if your applications require it.
TRUE TRANSPORT PERFORMERS
In our 6M 180, you will command up to 205 hp max. with IPM in a lightweight, 7.8-ton mid frame envelope with great fuel efficiency in transport.
Moreover, get any job done faster with the optional 50 kph transmission.
The See-More, Do-More Cab
When we designed the new 6M tractor cab, our purpose was simple: to help you do more, with more ease. Your 6M workspace is all about intuitive and straightforward tractor operation. Guided by best-practice ergonomic principles, the cab offers flexible control layouts configurable without any package limitations to suit your needs – from the right-hand console with electrical or manual SCVs and corner post display, to the compact CommandARM™ with bump shifter or linear lever, all the way to full CommandARM™ setups with G5 CommandCenter™ and CommandX™ Plus. And best of all: with the new CommandX™ Plus, the operating concept is fully aligned across the 6M, 6R, and our Waterloo-built tractors. This significantly reduces operator training efforts—especially for fleet customers running a mixed tractor lineup.
COMMANDX™ PLUS
The optional CommandX™ Plus lever with 6 fully reconfigurable buttons transforms your Compact CommandARM™ into a precision control centre, perfectly matched to e19™ and AutoPowr™ transmissions. The clever layout minimises hand movement, whilst intuitive controls reduce the mental effort needed throughout your working day. Save and recall two set speeds with ease. Push or pull over the detent to accelerate to 55 km/h or come to a standstill. Use the scroll wheel for quick changes or fine-tuned speed adjustments. Assign tractor and ISOBUS functions to the CommandX™ Plus and the electrical joystick with just a few clicks. It’s fast, intuitive, and tailored to your workflow.
CommandX™ Plus
Assign mode change and acceleration response to buttons. Push left to coast smoothly to 0 km/h—ideal for traffic stops.
Switch between left-hand reverser and joystick—just like on the 6R. Adjust speed via pedal or joystick without toggling modes. It’s smooth, intuitive, and fully assignable to your needs.
COMPACT COMMANDARM™
Better controls give you more control: Operate all tractor functions with maximum comfort. Control AutoTrac™, hydraulics, front and rear hitch, iTEC™, engine speed, two engine set speeds, and driving functions via the linear lever or the optional CommandX™ Plus. It’s the kind of comfort you’re used to from the 6R Series – just even simpler. Choose between proven 5-position E-SCV switches or an electronic joystick that makes loader operation a breeze and is ISOBUS ready.
Compact CommandARM™
ELECTRONIC JOYSTICK
Enjoy more comfort and ease of use with shuttle and gear-changing features all in one place. Ergonomically positioned on the Compact CommandARM™ or on the armrest, the electrical joystick is ideal for loader work and can be reconfigured to support any of your daily demanding tasks. With 2 axes, 1 rocker switch, and 4 buttons – all fully reconfigurable – you can assign tractor functions such as hitch or SCV controls, gear shifting, loader operations, or ISOBUS functions.
Electronic Joystick
G5 COMMANDCENTER™
With fingertip precision, you control all key functions via the G5 CommandCenter™ Display—while the corner post display serves as a smart secondary interface for key parameters like speed and engine RPM, just like on the 6R.
The 10.1" G5 CommandCenter™ Display features a fast processor for quick boot-up times and crisp high-definition visuals. Precision Ag features scale from simple AutoTrac™ to expert-level features like AutoPath™ (Rows and Boundaries) – giving you exactly the functionality you need. With Remote Display Access, your team or your dealer can view display settings remotely from their mobile devices for faster support and smoother workflows.
With Settings Manager, you can save tractor and implement functions in customisable profiles and recall them instantly with a fingertip. Layout Manager lets you personalise the G5 CommandCenter™ display to match your specific applications and preferences – making your 6M workspace as smart and efficient as your operation.
G5 CommandCenter™ Display with Expert-level Precision Ag Capabilities
iTEC™ - AUTOMATION THAT THINKS AHEAD
6M iTEC™ automates headland sequences by distance. Program your individual headland management sequences with features like PTO operation (on/off), hydraulics, hitches, travel speeds, and gear selection and make workflows smooth and natural. Settings Manager enables operators to save and recall iTEC™ sequences per work step or implement. Two iTEC™ sequence activation buttons on the Compact CommandARM™—or any reconfigurable button on CommandX™ Plus or the electronic joystick—let operators trigger iTEC™ sequences with ease.
LIGHT UP THE NIGHT
Our factory-installed lighting packages deliver a wide, bright and concentrated field of light all around your 6M with up to 18 work lights mounted around the tractor. For even more demanding lighting requirements, you’ll want to opt for our full LED lighting packages, which consume less power, provide an even brighter, daylight-quality light, and last longer. In the light menu, operators can easily define two lighting presets—such as road and field—perfect for tasks like silage hauling.
Premium Light Package
Expert-Level Precision Ag on Demand
Equip your 6M easily with key components for advanced smart farming: StarFire™ 7500, G5 CommandCenter™ or G5/G5Plus Universal Display, and JDLink™ Modem. This prepares you for any Precision Ag application—whether you’re starting out or operating already at the expert level. It also makes the 6M fit into any farming operation—from serving as the primary tractor on smaller dairy to acting as a versatile workhorse on large arable farms during peak seasons that is aligning fully with the PAG capabilities of the other R Series farm tractors, the 17 6M models are ready for any task.
| Waterloo | 6R | 6M | |
|---|---|---|---|
| Offboard Software Solution for any device | Yes | Yes | Yes |
| Remote Display Access | Yes | Yes | Yes |
| Autostart with Workplanner | Yes | Yes | Yes |
| AutoTrac Turn Automation | Yes | Yes | Yes (no speed automation) |
| Settings Manager Profiles | Yes | Yes | Yes |
| Passive Implement Guidance (Receiver Based Position) | Yes | Yes | Yes |
| Implement Guidance in Reverse | Yes | - | - |
| VRA or Variable Depth Application | Yes | Yes | Yes |
| Section Control | Yes | Yes | Yes |
| Machine to Machine DataSync | Yes | Yes | Yes |
| Satellite Maps View | Yes | Yes | Yes |
| In‑Field DataSync | Yes | Yes | Yes |
| MachineSync | Yes | Yes | - |
| AutoPath Boundaries & Rows | Yes | Yes | Yes |
STARFIRE™ 7500 RECEIVER
It’s easier than ever to achieve high accuracy. With the StarFire™ 7500 receiver available for your 6M, you can easily add the SF-RTK signal to achieve 2.5 cm accuracy for precise product placement—no additional hardware required. Enjoy long-term repeatability that minimises guidance line, coverage, and boundary drift year after year.
Thanks to the ability of the StarFire™ 7500 receiver to communicate with GPS, GLONASS, and the GALILEO and BEIDOU satellite constellations, you’ll enjoy superior signal stability in shaded areas at any signal accuracy level.
StarFire™ 7500
EXPERT-LEVEL PRECISION AG ON YOUR DEMAND
Upgrade on your demand and transform your operation into a new era of precision. With flexible license options, you unlock your ultimate guidance solution, freeing the operator to focus on what truly matters: delivering perfect work quality. Experience AutoPath™ Rows and Boundaries providing a guidance plan for the entire field and all work steps across the season, AutoTrac™ Turn Automation for precise turns in any field shape, and Passive Implement Guidance for centimetre-accurate control that eliminates implement drift.
Standard with all G5 displays: With Section Control™ and up to 255 sections on your implement you reduce overlaps and minimise skips to ensure precise crop protectant and nutrient application. Optimise your profits with Variable Rate Control. Increase fertiliser, seeding, and chemical efficiency while boosting yield and reducing costs.
Enjoy brilliant Satellite Map visualisation, effortless documentation, and real-time remote support with Remote Display Access, giving every operator the confidence to work smarter and more efficiently.
In-field Data Sharing wirelessly links multiple John Deere machines working in the same field on the same job, so they operate as one. Every machine sees real-time progress across the field—perfect coordination, zero guesswork.
With seamless DataSync to the Operations Center—no USB sticks required—you’ll save time, reduce errors, and keep your entire fleet connected.
Section Control™
AutoTrac™ Turn Automation
In-Field Data Sharing
Precision Ag use on G5 Display
AUTOSTART WITH WORK PLANNER
Prepare work plans in the John Deere Operations Center and send them straight to the cab wirelessly. Guidance lines, application maps, work instructions and implement settings load automatically without any click. Operators can skip setup and start working right away — with fewer steps, fewer errors and more focus on the job from the very first pass.
By sending the Work Plan, your machine is ready the moment you enter the field. You can cover up to 9%* more area per hour – it’s productivity made simple, and fast.
* Österreichische Bauernzeitung (www.bauernzeitung.at/lenksystem/), 20.4.2023
Power Without Limits
Get all the power you need with less fuel and lower emissions from our PowerTech 4.5 l 4-cylinder or 6.8 l 6-cylinder engines. The 6-cylinder engines feature extended drain intervals of up to 750 hours.*
* for selected equipment with John Deere Stage V engines when using Plus-50™ II John Deere filters
SOLID POWER
Compact goes beyond. Whatever the job, the 4.5 L EWS engine in the 6M 95 – 6M 125 models will deliver more than enough power thanks to 40% torque reserve and Intelligent Power Management. The 2-stage turbocharging system in the 4.5 l PSS engine in the 6M 130 – 6M 150 boosts power to achieve up to 177 hp (max with IPM) in the 6M 150.
4.5L 4-cylinder EWS
4.5L 4-cylinder PSS
PROVEN TECHNOLOGY
The higher power output of our 6-cylinder engines comes from refined High Pressure Common Rail technology with injection pressure of up to 2,500 bar. The PVS engine in the 6M 145 – 6M 220 models has a Variable Geometry Turbocharger that boosts performance and efficiency across the torque curve, while the PSS engine in the 6M 240, 6M 230 and 6M 250 uses a 2-stage turbocharging system in which the variable geometry turbocharger multiplies the pressure created by a fixed vane turbocharger.
6.8 l 6-cylinder PVS
6.86-cylinder PSS
INTELLIGENT POWER MANAGEMENT
Intelligent Power Management provides up to 20 additional hp for transport and PTO applications. Max. power and max. torque are achieved at 1,800 and 1,500 rpm respectively to ensure optimum response with low fuel consumption levels.
EX-FACTORY REVERSIBLE FAN
The ex-factory reversible fan keeps your hood intake and cooling package clear of debris, delivering better fuel efficiency and fewer service interruptions.
Ex-Factory Reversible Fan
Ex-Factory Reversible Fan
TRIPLE LINK SUSPENSION (TLS™ Plus)
TLS™ Plus brings real performance benefits to your 6M. It delivers 7% more power to the ground compared to a rigid axle, while a long draft link improves traction. The hitch sensing system helps counter power hop under heavy pull. With 100 mm of self-levelling suspension travel, automatic sensitivity adjustment, and optional front axle brake discs, TLS™ Plus ensures a stable, comfortable ride and greater braking capacity when you need it most.
Enjoy even better road comfort and superior line holding with the in-base Sport Package Plus. Adjustable damping for Premium Seats ensures a smoother ride, whilst wider rims improve stability and road control.
TLS™ Plus
6M with Sport Package Plus
Transmissions: Power of Choice
Our proven transmission portfolio combines superior ease of operation and convenience with outstanding efficiency to complement the power and torque of your 6M.
e19™
Experience ultra-fast, intelligent shifting with the e19™ transmission—19 fully powershiftable gears for seamless performance in field and transport. E19™ is available on most 6 cylinder models up to 6M 250.
The new e19™ represents the ultimate solution for heavy draft and field work while keeping comfort and versatility high. Unlike basic automation, e19™ doesn’t just shift gears—it intelligently adjusts gear shifting and selection based on multiple tractor inputs, ensuring optimal transmission-engine management. Operate e19™ like a stepless transmission – no clutch pedal needed. In direct comparison to CommandQuad™ Plus it convinces with 5% less fuel usage delivering at the same time 5% more ha/hr.
The Hill Inclination Sensor adds terrain awareness to gear selection. It optimises start gears, directional changes, and shifting on slopes—reducing operator input and boosting efficiency in challenging conditions.
Your drive. Your rules: Switch seamlessly between drive pedal and drive lever operation. In Auto Mode, a true engine-transmission management always chooses the optimal gear and engine speed, keeping comfort high and fuel consumption low. Command your desired ground speed with cruise control and watch your tractor keep its speed – even under varying load.
With e19™, you have the flexibility to select from two engine start gears—ideal for headland/field operation or full/empty transport. Shift smoothly between auto and manual modes at the touch of a button for maximum control. And with the CommandX™ Plus joystick, two customisable set speeds elevate your driving experience to the next level.
Accelerate like never before. Skip Shift jumps multiple gears for rapid speed changes, while Scroll Shift keeps clutches partially engaged—for even faster, smarter transitions, reduced heat, and less wear—just like premium car transmissions.
Approach intersections or stops effortlessly with Coast Mode. The tractor shifts to neutral and coasts to 0 km/h, ensuring comfort and control.
Reduced 1.620 rpm engine speed at 50 km/h max. speed makes the e19™ economical and quiet on the road.
Operate e19™ using the traditional bump shift lever on the right-hand console or integrated in the Compact CommandARM™, or with the new CommandX™ Plus joystick.
100% Mechanical Power with e19™
AUTOPOWR™
The well-proven AutoPowr transmission is the ideal choice for a versatile allrounder. Be it application work, transport or tillage – the AutoPowr™ transmission shines at every task. AutoPowr™ delivers seamless acceleration across the entire speed range and precise low-speed control—making it the ideal transmission for loader work.
AutoPowr™ is a hydro-mechanical transmission that delivers stepless and continuous power at speeds between 30 m/h and 50 km/h and maintains the selected speed by automatically responding to changing load conditions.
Once running at maximum road speed, engine rpm automatically drops to the minimum level required to maintain that speed – reducing noise and saving fuel. 50 km/h is maintained at 1,630 rpm, 40 km/h at 1,300 rpm.
AutoPowr™ delivers 100% mechanical power at the following working speeds: 3.5 km/h (heavy draft), 11 km/h (light draft), 22 km/h (heavy transport) and 47 km/h (light transport). This results in superb transmission efficiency, close to that of mechanical transmissions. In fact, AutoPowr™ is always using more than 60% of the available mechanical power.
Operate AutoPowr™ using the linear lever on the right-hand console or integrated in the Compact CommandARM™, or with the new CommandX™ Plus joystick.
Transport Efficiency with AutoPowr™
AUTOQUAD™ PLUS
The AutoQuad™ Plus transmission is available in 2 versions: 20/20 or 24/24 depending on the model you select. It offers automatic gear shifting and makes group shifting a breeze with the convenient declutch button on the shift lever. Speed matching between groups minimises wear while smoothing your ride and the optional 50 km/h version keeps you moving fast and efficiently.
For the 6M 95 – 6M 155 models a creeper option with speeds as low as 72 m/h at 1,000 rpm is available.
Ride comfort
MECHANICAL CAB SUSPENSION
Say good-bye to irritating vibrations and drive all day with relaxed focus. Our maintenance free mechanical cab suspension pays for itself with increased driver productivity and best-in-class comfort.
A long day in the cab is hard work. Shocks and vibration cause fatigue. Proper suspension alleviates these effects and helps keep operators alert.
The John Deere full frame design is a solid platform that absorbs, and resists loads and shocks from the wheels, heavy implements and front loaders. To further minimise the fatigue and stress caused by unpleasant vibrations, 6M tractors can be specified with optional mechanical cab suspension. The standard front axle delivers superior on-road handling – Triple Link Suspension (TLS™) is optionally available.
TRIPLE LINK SUSPENSION
TLS™ – one short acronym with lots of benefits.
– 7% more power to the ground than with a rigid axle
– A long draft member for better draft performance
– Hitch sensing system synchronisation to compensate power hop effects under heavy pull
– Self-levelling with 100 mm suspension travel
– Automatic axle sensitivity and suspension rate adjustment
– Optional brake discs in front axle hubs for more braking capacity
-
